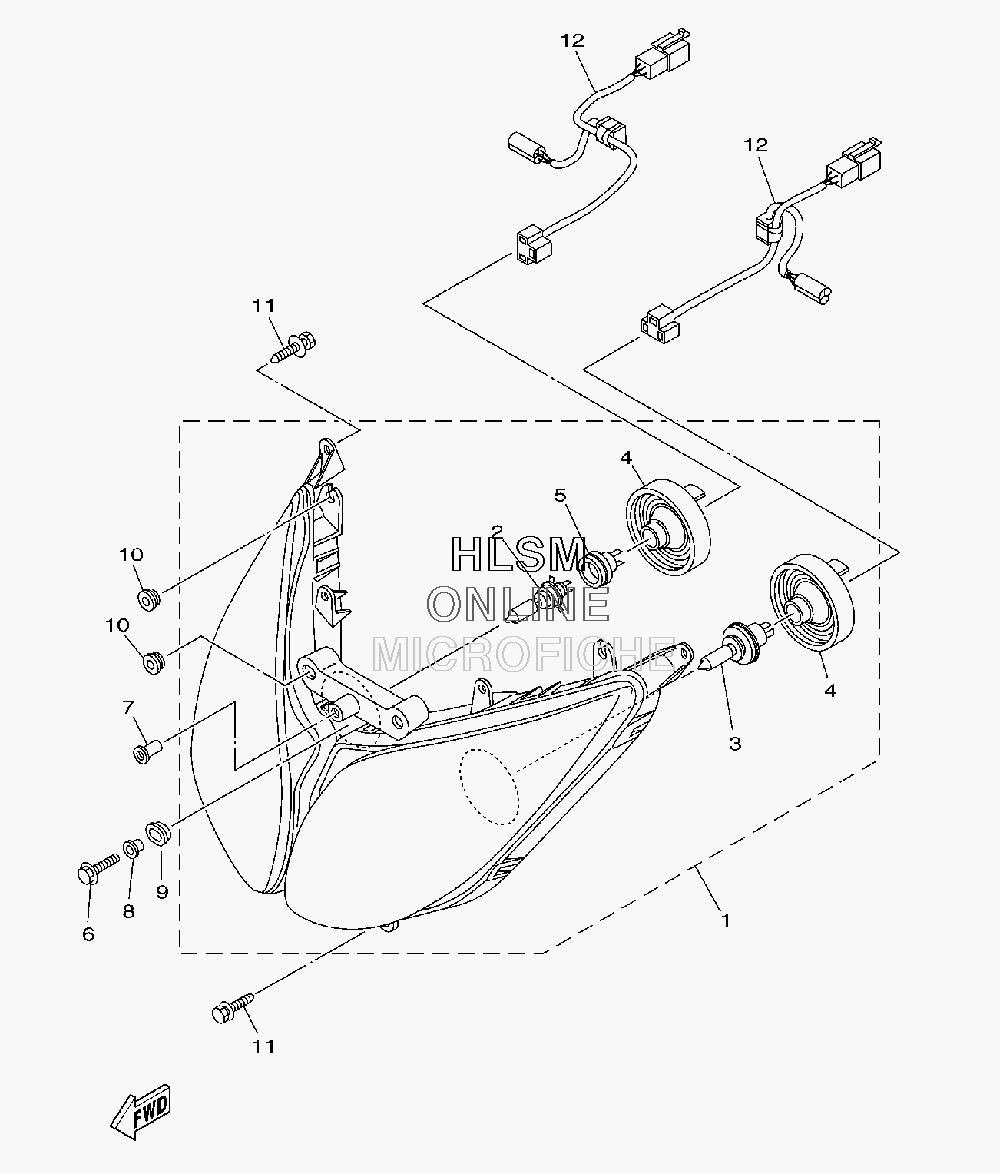

HEADLIGHT ASSY. для Yamaha TMAX (XP500YY) (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-84310-30-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
24SV-84314-00-00 BULB (12V-55W) (H7) HALOGENBULB (12V-55W) (H7) HALOGEN
-
38G9-84314-00-00 BULB (12V-60/55W) (H4) HALOGENBULB (12V-60/55W) (H4) HALOGEN
-
45GJ-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
54SV-84350-00-00 SOCKET CORD ASSY 2SOCKET CORD ASSY 2
-
695802-06020-00 BOLT, FLANGEBOLT, FLANGE
-
790179-05523-00 NUTNUT
-
890387-06160-00 COLLARCOLLAR
-
990480-01559-00 GROMMETGROMMET
-
1090480-13398-00 GROMMETGROMMET
-
1190119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
124B5-84359-30-00 CORD, HEADLIGHTCORD, HEADLIGHT
