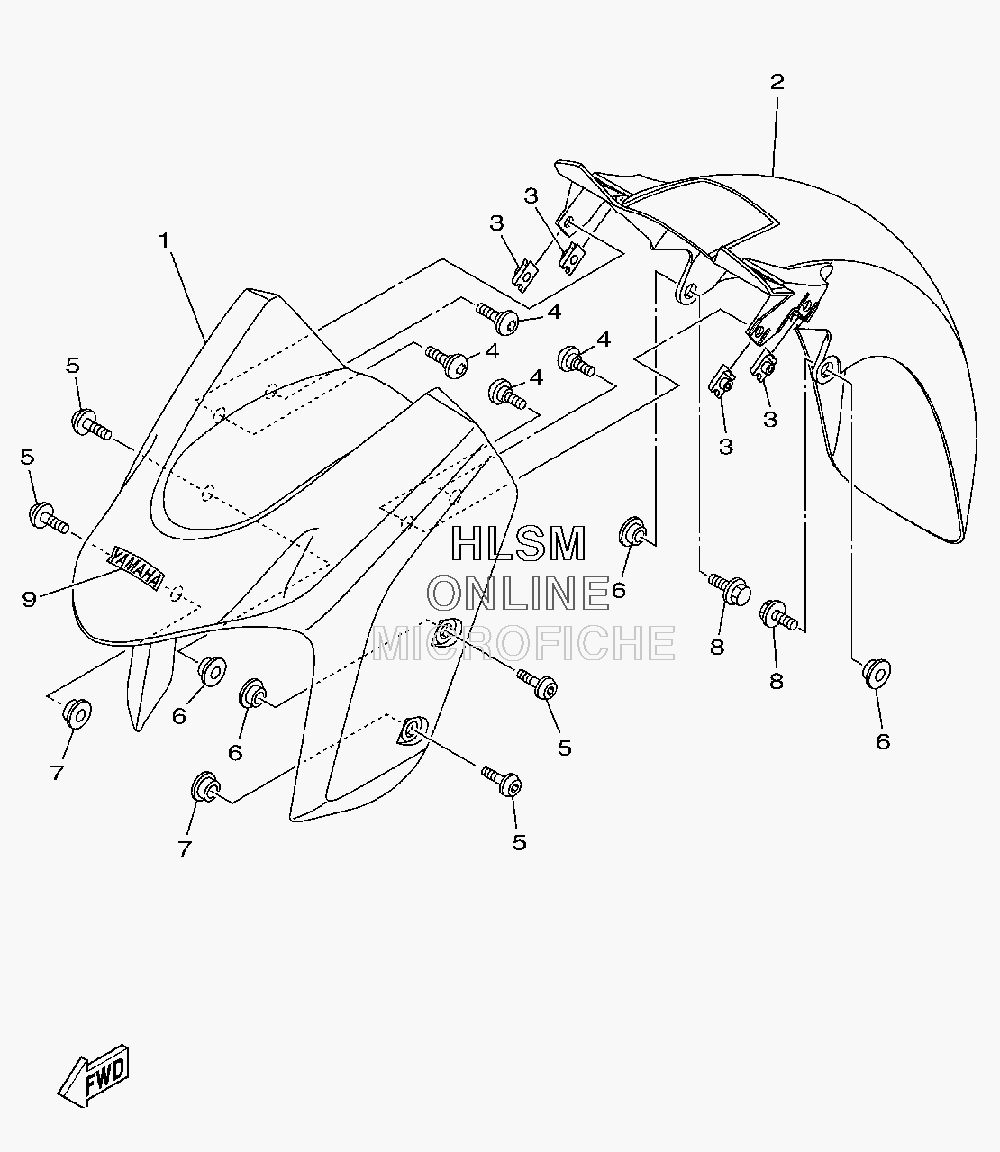

FENDER - FRONT / REAR для Yamaha TMAX (XP500YY) (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-21511-00-P4 FENDER, FRONT USE FOR COLOR MAT BLACK 2 ( MBL2 / 0582 )FENDER, FRONT USE FOR COLOR MAT BLACK 2 ( MBL2 / 0582 )
-
24B5-21556-00-00 FENDER, FRONT 2FENDER, FRONT 2
-
390183-060A6-00 NUT, SPRINGNUT, SPRING
-
490149-06117-00 SCREWSCREW
-
590111-06097-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
690387-06153-00 COLLARCOLLAR
-
790387-08079-00 COLLARCOLLAR
-
895802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
94B5-2153E-20-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
