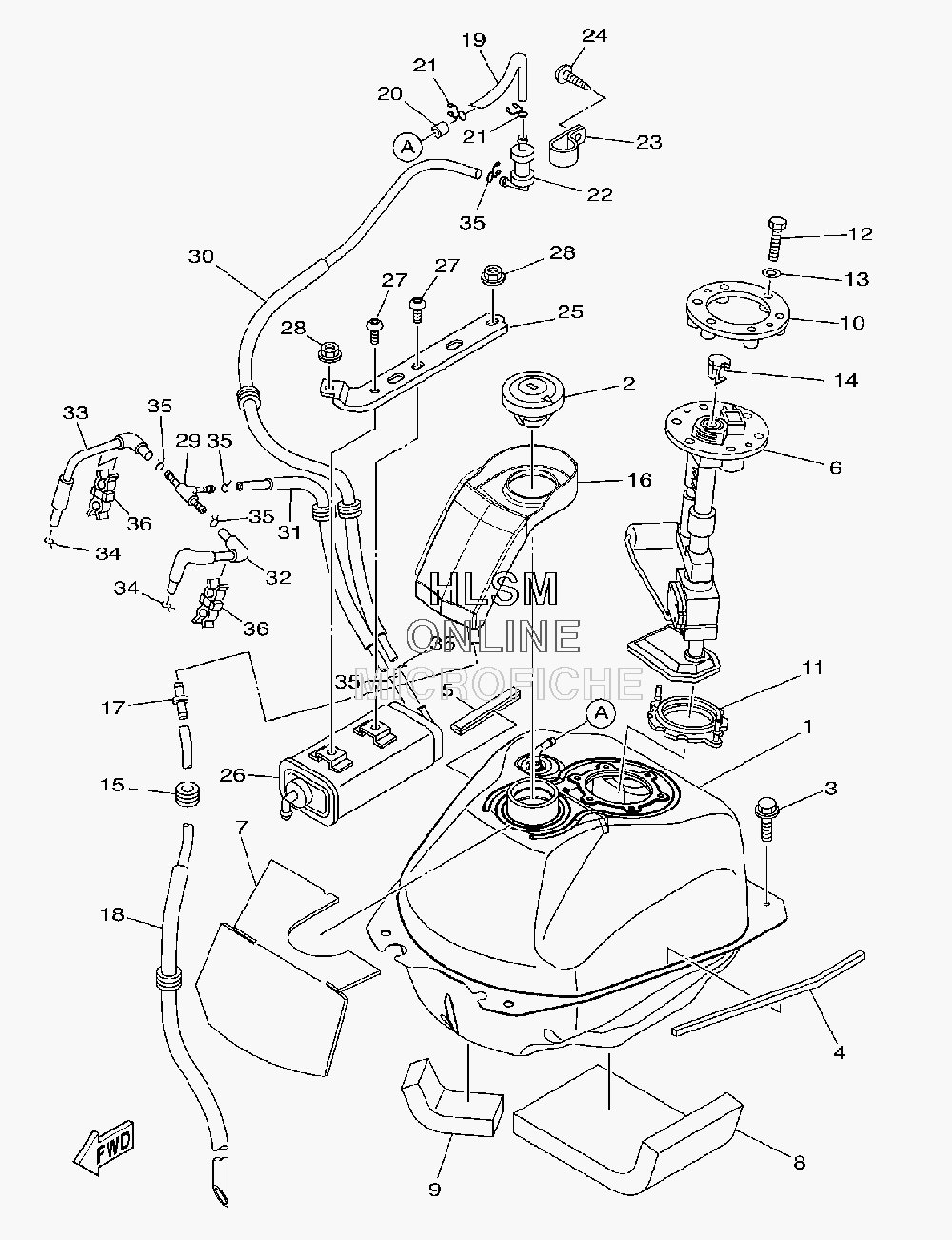

FUEL TANK ASSY. для Yamaha TMAX (XP500YY) (YELLOW) - 2009 года выпуска
-
№АртикулНазвание
-
14B5-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
254K-24602-00-00 CAP ASSYCAP ASSY
-
390119-06200-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44B5-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
54BP-24188-00-00 MOLD, FUEL TANKMOLD, FUEL TANK
-
64B5-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
74B5-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
84B5-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
94B5-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
104B5-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
115CA-2414G-01-00 SEALSEAL
-
1297002-05020-00 BOLTBOLT
-
1392902-05600-00 WASHER, PLATEWASHER, PLATE
-
145VU-24135-00-00 CLAMP 1CLAMP 1
-
1590480-13018-00 GROMMETGROMMET
-
164B5-2414A-00-00 COVER, FILLERCOVER, FILLER
-
174JP-21753-00-00 BOSS, CONNECTORBOSS, CONNECTOR
-
184B5-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
194B5-24313-00-00 PIPE 3PIPE 3
-
204B5-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2190467-090A2-00 CLIPCLIP
-
225RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
234B5-24135-00-00 CLAMP 1CLAMP 1
-
2497702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
254B5-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
264B5-24170-00-00 CANISTER ASSYCANISTER ASSY
-
2792012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2895702-06500-00 NUT, FLANGENUT, FLANGE
-
2990413-06031-00 WAY 3WAY 3
-
304B5-24315-00-00 PIPE 5PIPE 5
-
314B5-24316-00-00 PIPE 6PIPE 6
-
324B5-24317-00-00 PIPE 7PIPE 7
-
334B5-24321-00-00 PIPE 10PIPE 10
-
3490467-100A1-00 CLIPCLIP
-
3590467-090A2-00 CLIPCLIP
-
3690464-10M59-00 CLAMPCLAMP
