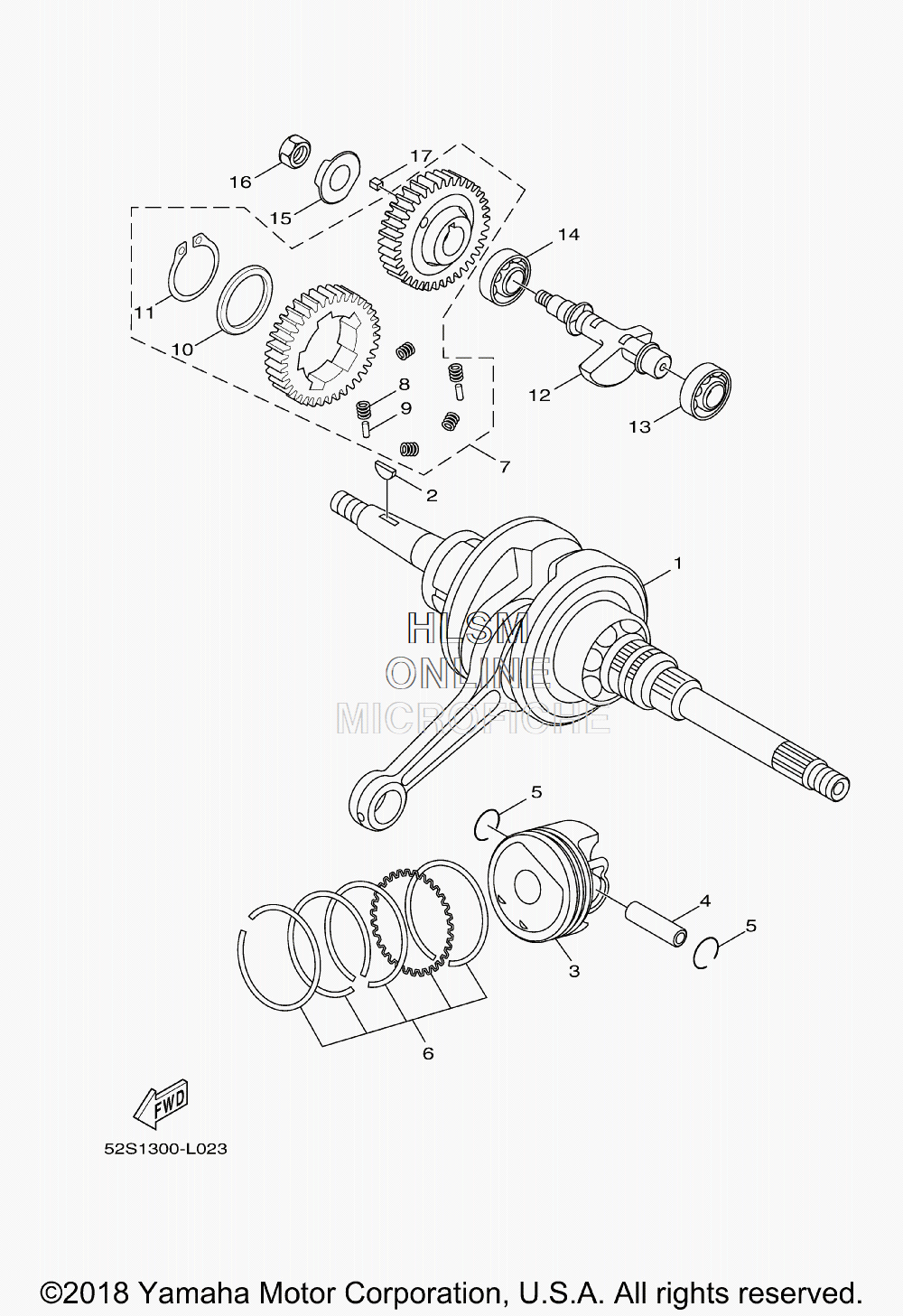

CRANKSHAFT W/ PISTON ASSY. для Yamaha SMAX - 2019 года выпуска
-
№АртикулНазвание
-
152S-XE140-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
290280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
352S-E1631-00-00 PISTON (STD)PISTON (STD)
-
452S-E1633-00-00 PIN, PISTONPIN, PISTON
-
593450-16068-00 CIRCLIPCIRCLIP
-
652S-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
752S-WE153-00-00 GEAR, DRIVEGEAR, DRIVE
-
890501-21801-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
993604-10800-00 ...PIN, DOWEL...PIN, DOWEL
-
1090201-35801-00 ...WASHER, PLATE...WASHER, PLATE
-
1199009-35400-00 ...CIRCLIP...CIRCLIP
-
1252S-E1454-00-00 WEIGHT 1WEIGHT 1
-
1393306-203XK-00 BEARINGBEARING
-
1493306-203XY-00 BEARINGBEARING
-
1590215-10803-00 WASHER, LOCKWASHER, LOCK
-
1690170-10804-00 NUTNUT
-
1790282-05031-00 KEY, STRAIGHTKEY, STRAIGHT
