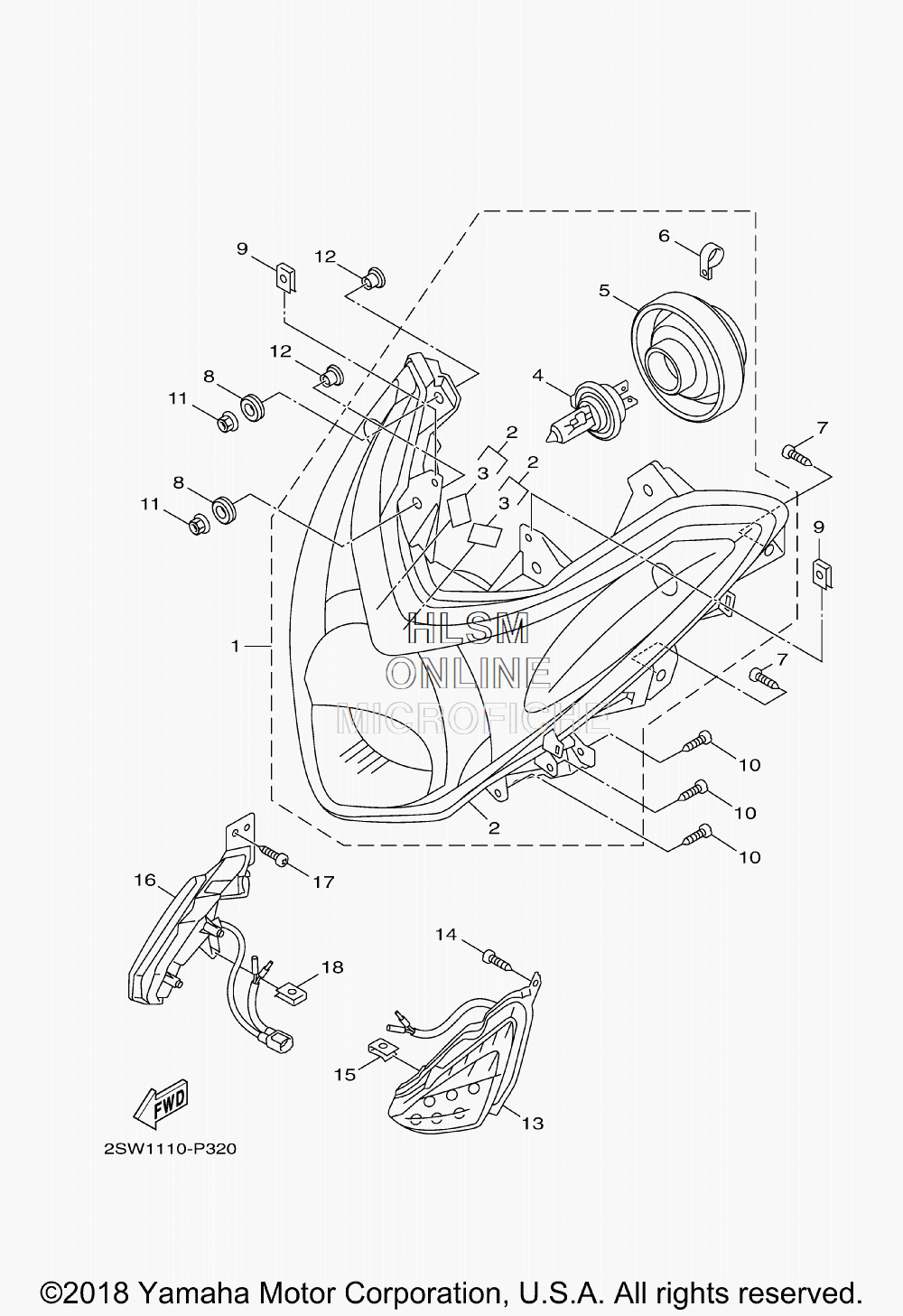

HEADLIGHT ASSY. для Yamaha SMAX - 2019 года выпуска
-
№АртикулНазвание
-
12SW-H4300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
22SW-XH43A-00-00 ...HEAD LIGHT UNIT COMP....HEAD LIGHT UNIT COMP.
-
390520-01801-00 ...DAMPER, PLATE...DAMPER, PLATE
-
41B6-H4314-00-00 ...BULB, HEADLIGHT (12V-60/55W)...BULB, HEADLIGHT (12V-60/55W)
-
51DK-H4396-00-00 ...COVER...COVER
-
61DK-H4746-00-00 ...PLATE, SEAT BASE...PLATE, SEAT BASE
-
797707-60020-00 SCREW, TAPPINGSCREW, TAPPING
-
890480-13398-00 GROMMETGROMMET
-
990183-05816-00 NUT, SPRINGNUT, SPRING
-
1097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1195707-06500-00 NUT, FLANGENUT, FLANGE
-
1290387-067N5-00 COLLARCOLLAR
-
131DK-H4301-30-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1590183-05816-00 NUT, SPRINGNUT, SPRING
-
161DK-H4302-30-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
1797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1890183-05816-00 NUT, SPRINGNUT, SPRING
