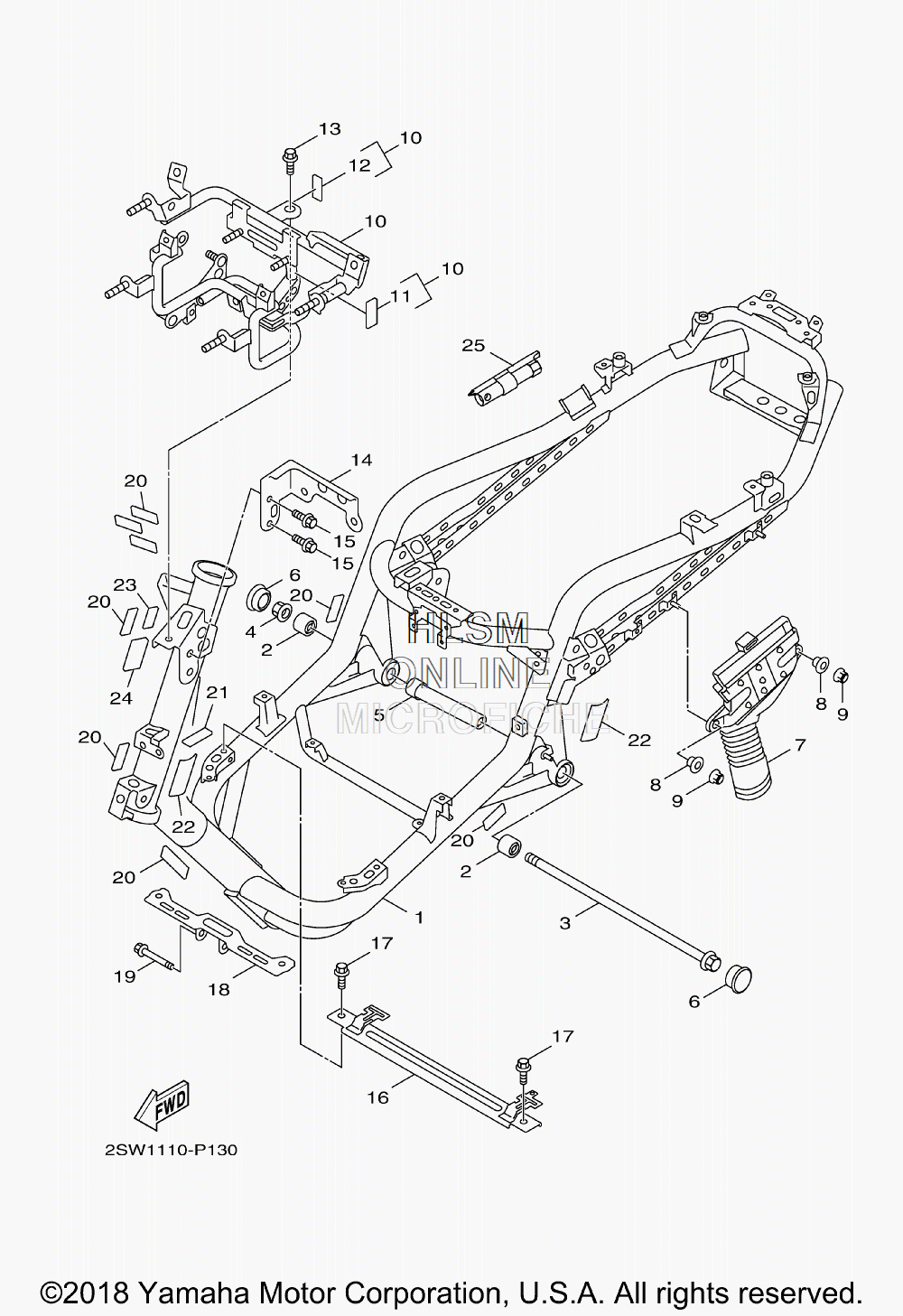

FRAME для Yamaha SMAX - 2019 года выпуска
-
№АртикулНазвание
-
12SW-F1110-10-33 FRAME COMP. (YB - YAMAHA BLACK)FRAME COMP. (YB - YAMAHA BLACK)
-
252S-F2124-00-00 BUSH 2BUSH 2
-
352S-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
552S-F1459-00-00 SPACERSPACER
-
690338-33800-00 PLUGPLUG
-
71DK-F110G-01-00 DUCT 2DUCT 2
-
890387-068M8-00 COLLARCOLLAR
-
995702-06500-00 NUT, FLANGENUT, FLANGE
-
101DK-XF128-20-00 BRACKETBRACKET
-
115ML-F1639-00-00 ...DAMPER 2...DAMPER 2
-
1290520-02828-00 ...DAMPER, PLATE...DAMPER, PLATE
-
1395827-08014-00 BOLT, FLANGEBOLT, FLANGE
-
141DK-F1415-00-00 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
1595807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
161DK-F114V-00-00 BRACKET 11BRACKET 11
-
1795807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
181DK-F4115-01-00 STAY, FUEL TANK 1STAY, FUEL TANK 1
-
1995822-06055-00 BOLT, FLANGEBOLT, FLANGE
-
205ML-F1541-00-00 DAMPER 1DAMPER 1
-
215ML-F1639-00-00 DAMPER 2DAMPER 2
-
2228B-F113B-00-00 DAMPERDAMPER
-
234C7-F1541-00-00 DAMPER 1DAMPER 1
-
2490520-02834-00 DAMPER, PLATEDAMPER, PLATE
-
255ML-F8100-00-00 TOOL KITTOOL KIT
