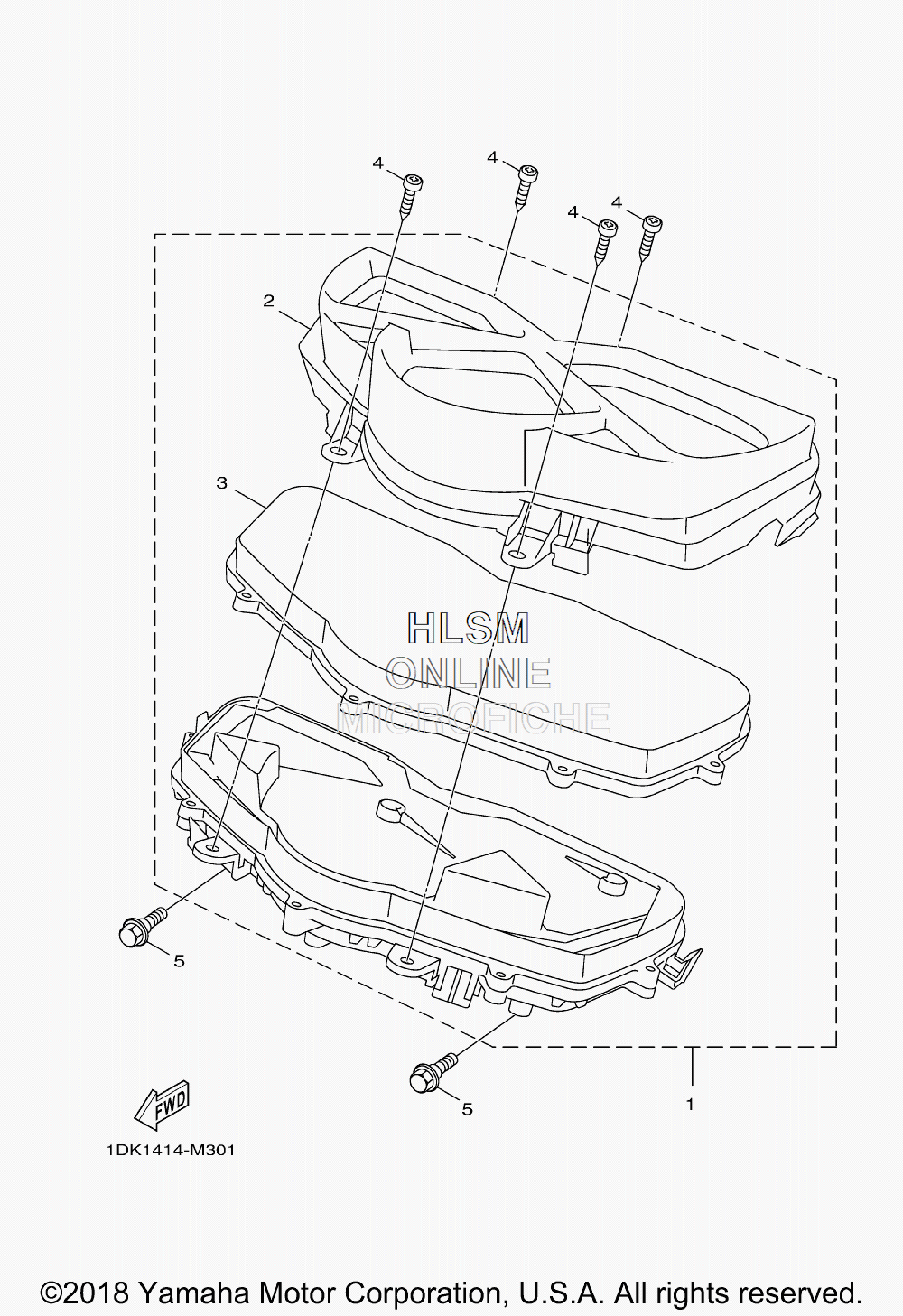

INSTRUMENT PANEL для Yamaha SMAX - 2019 года выпуска
-
№АртикулНазвание
-
12LD-H3510-31-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
22LD-H353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
31DK-H353K-00-00 ...GLASS PLATE...GLASS PLATE
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
590109-063F1-00 BOLTBOLT
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - MASTER CYLINDER
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- • INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
