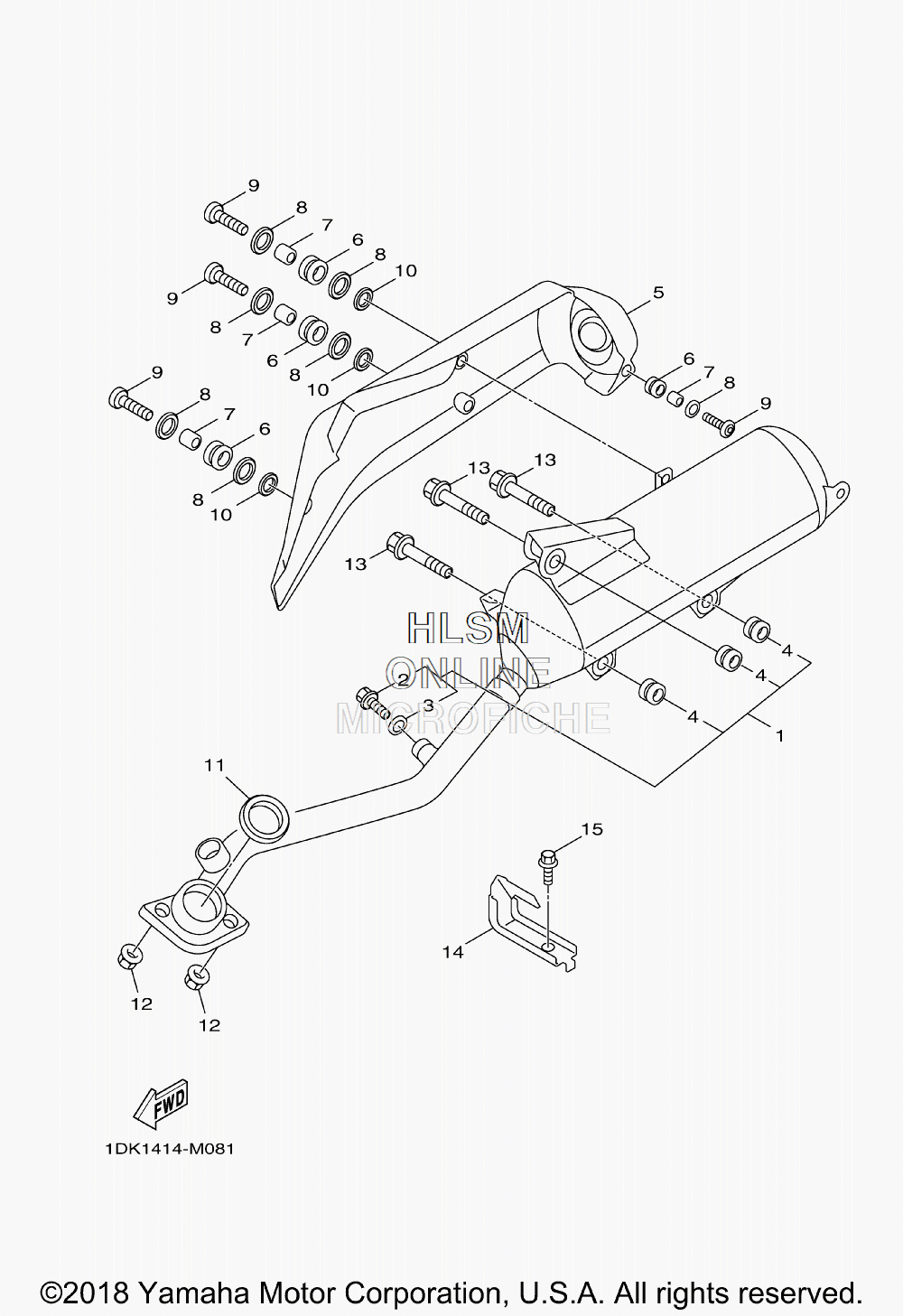

EXHAUST ASSY. для Yamaha SMAX - 2019 года выпуска
-
№АртикулНазвание
-
12SW-E4610-00-98 EXHAUST PIPE ASSY 1 (LGB - GLOSS BLACK)EXHAUST PIPE ASSY 1 (LGB - GLOSS BLACK)
-
297080-06008-00 ...BOLT, HEX....BOLT, HEX.
-
392990-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
41DK-E479M-00-00 ...COLLAR 1...COLLAR 1
-
52LD-E4708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
690480-12809-00 GROMMETGROMMET
-
790387-06870-00 COLLARCOLLAR
-
890201-06057-00 WASHER, PLATEWASHER, PLATE
-
990111-06801-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
104CW-E4766-00-00 WASHER, PROTECTORWASHER, PROTECTOR
-
115YP-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1295702-08500-00 NUT, FLANGENUT, FLANGE
-
1395812-10050-00 BOLT, FLANGEBOLT, FLANGE
-
141DK-E4834-00-00 STAYSTAY
-
1595022-06010-00 BOLT, FLANGEBOLT, FLANGE
