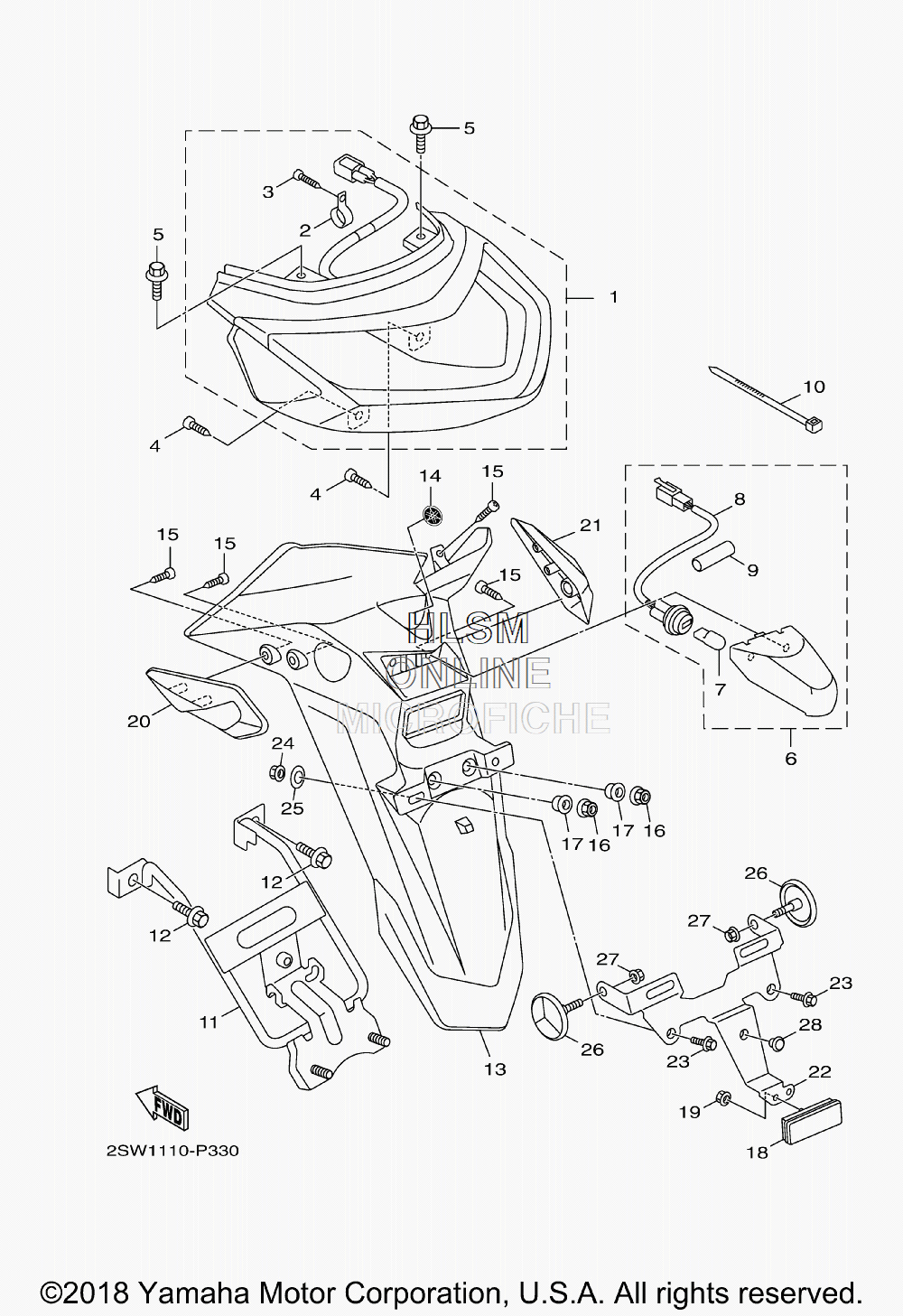

TAILLIGHT ASSY. для Yamaha SMAX - 2019 года выпуска
-
№АртикулНазвание
-
12SW-H4700-01-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
21CD-H4746-00-00 ...PLATE, SEAT BASE...PLATE, SEAT BASE
-
31CD-H4724-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
590119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
62SW-H4745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
75FM-H4347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
82SW-H4735-00-00 ...SOCKET CORD ASSY...SOCKET CORD ASSY
-
91DK-H3338-00-00 ...TUBE, CORD...TUBE, CORD
-
1090464-15840-00 CLAMPCLAMP
-
111DK-F1640-00-00 REAR STAY COMP.REAR STAY COMP.
-
1295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
132SW-F1685-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
141DK-F1609-00-00 EMBLEMEMBLEM
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1690179-06833-00 NUTNUT
-
1790387-06868-00 COLLARCOLLAR
-
1846P-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1995602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
202SW-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
212SW-F163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
222SW-H4751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2390119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2495607-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2590201-06557-00 WASHER, PLATEWASHER, PLATE
-
262SW-H5131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
2795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
283D1-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
