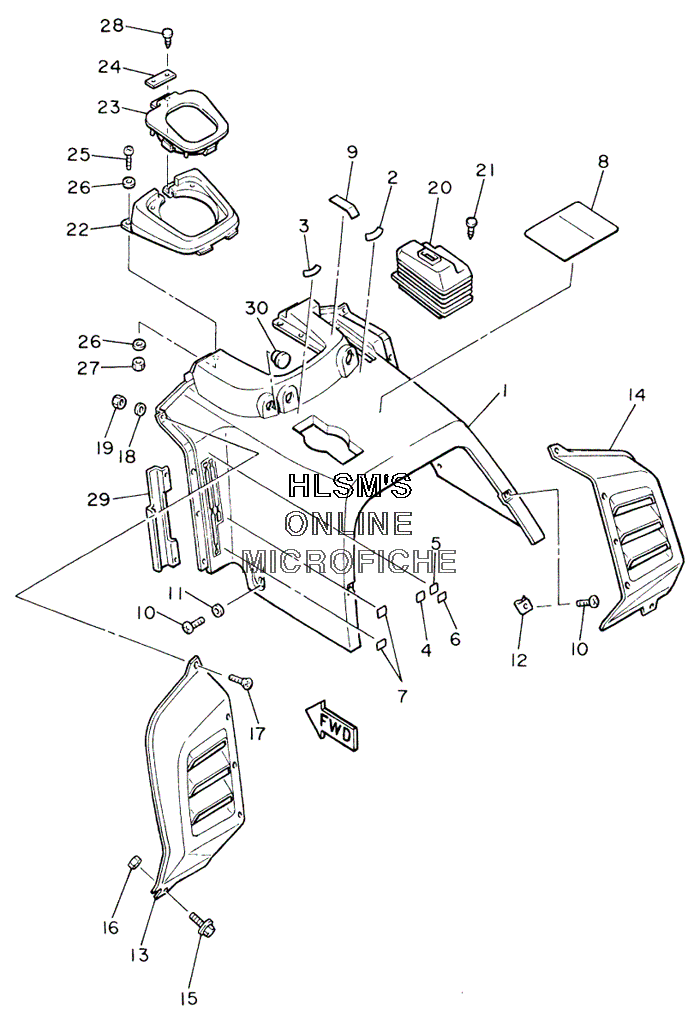

CONSOLE ASSY для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
186V-77711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28V0-77741-20-00 INDICATOR 1INDICATOR 1
-
38U9-77742-00-00 INDICATOR 2INDICATOR 2
-
487A-77743-00-00 INDICATOR 3INDICATOR 3
-
587A-77742-00-00 INDICATOR 2INDICATOR 2
-
687A-77741-00-00 INDICATOR 1INDICATOR 1
-
787A-77745-00-00 INDICATOR 5INDICATOR 5
-
887R-77761-10-00 LABEL, WARNING 1LABEL, WARNING 1
-
983R-77741-00-00 INDICATOR 1INDICATOR 1
-
1098907-06016-00 SCREW, BINDSCREW, BIND
-
1190387-060U0-00 COLLARCOLLAR
-
1283R-77144-00-00 NUTNUT
-
1383R-77131-01-00 LOUVER 1LOUVER 1
-
1483R-77132-01-00 LOUVER 2LOUVER 2
-
1595807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1695707-06300-00 NUT, FLANGENUT, FLANGE
-
1798707-04016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1890201-047A2-00 WASHER, PLATEWASHER, PLATE
-
1995707-04300-00 NUT, FLANGENUT, FLANGE
-
2083R-77731-00-00 SHIELD 1SHIELD 1
-
2190269-05055-00 RIVETRIVET
-
2283R-77712-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
2383R-77740-00-00 GROMMET, INSTRUMENT PANELGROMMET, INSTRUMENT PANEL
-
2483R-77728-00-00 WASHERWASHER
-
2598907-05016-00 SCREW, BINDSCREW, BIND
-
2690201-054K4-00 WASHER, PLATEWASHER, PLATE
-
2795707-05300-00 NUT, FLANGENUT, FLANGE
-
2890269-05055-00 RIVETRIVET
-
2983R-2419A-00-00 HOLDERHOLDER
-
3090480-12012-00 GROMMETGROMMET
