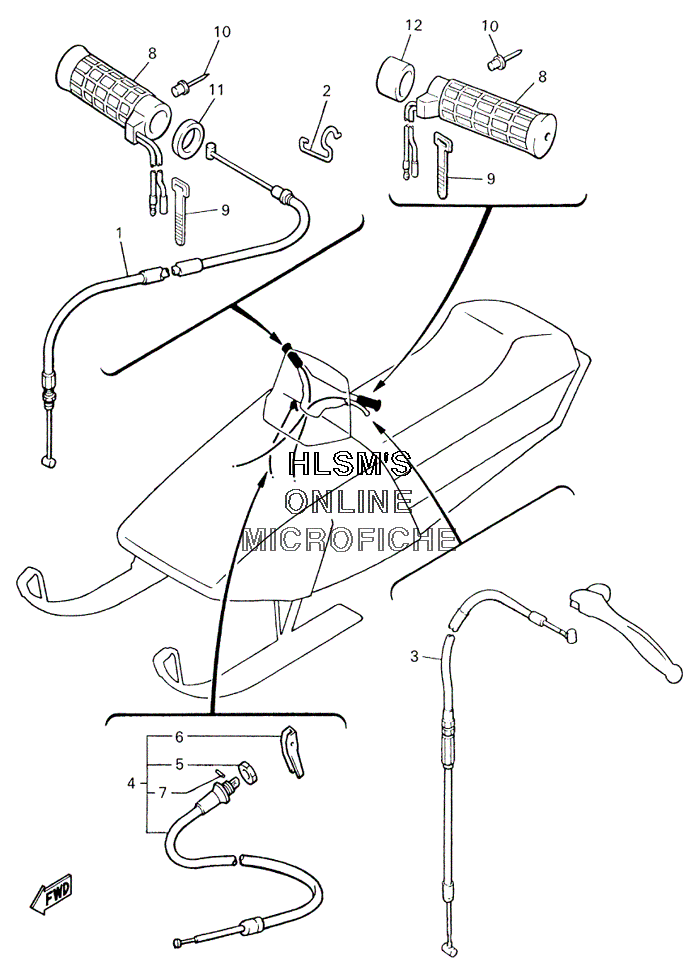

HANDLEBAR - CABLES AND GRIPS для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
183R-26311-02-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
290465-10189-00 CLAMPCLAMP
-
387R-26340-01-00 CABLE, BRAKECABLE, BRAKE
-
483R-26331-01-00 CABLE, STARTER 1CABLE, STARTER 1
-
58G8-26333-00-00 ...NUT...NUT
-
68U9-26325-00-00 ...KNOB, STARTER...KNOB, STARTER
-
791609-30010-00 ...PIN, SPRING...PIN, SPRING
-
888T-26240-00-00 GRIP ASSYGRIP ASSY
-
9437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1090267-40076-00 RIVET, BLINDRIVET, BLIND
-
1180Y-23843-00-00 WASHER, PLAINWASHER, PLAIN
-
1290387-22726-00 COLLARCOLLAR
