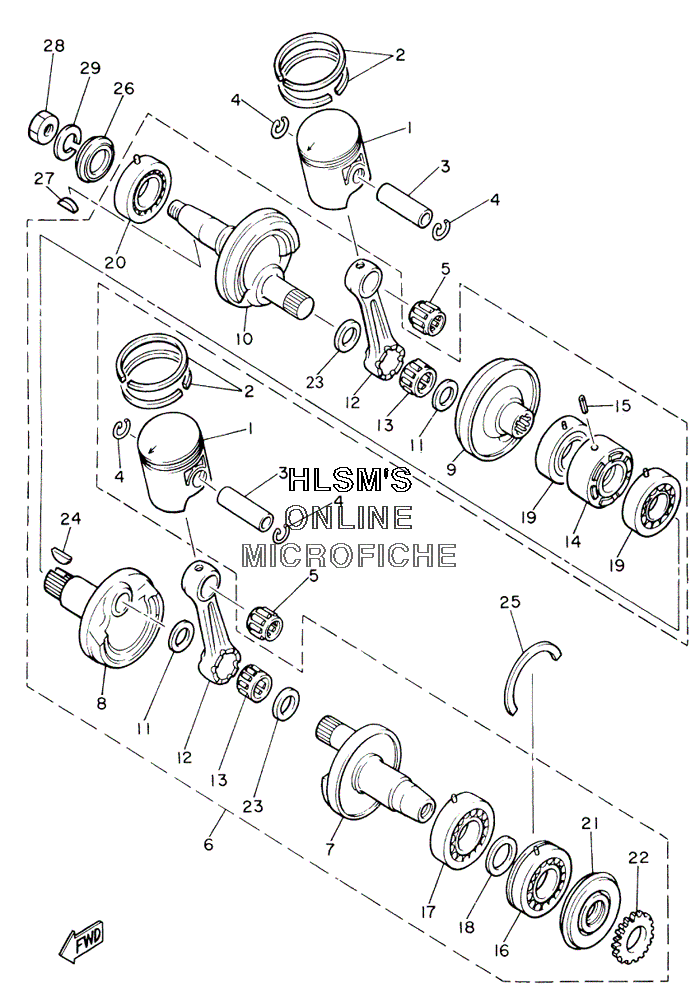

CRANKSHAFT W/ PISTON ASSY для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
18R6-11631-00-95 PISTON (STD)PISTON (STD)
-
18R6-11635-00-00 PISTON (0.25MM O/S) (OPT)PISTON (0.25MM O/S) (OPT)
-
18R6-11636-00-00 PISTON (0.50MM O/S) (OPT)PISTON (0.50MM O/S) (OPT)
-
28R6-11601-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
28R6-11601-10-00 PISTON RING SET (0.25MM O/S) (OPT)PISTON RING SET (0.25MM O/S) (OPT)
-
28R6-11601-20-00 PISTON RING SET (0.50MM O/S) (OPT)PISTON RING SET (0.50MM O/S) (OPT)
-
38H8-11633-00-00 PIN, PISTONPIN, PISTON
-
493450-21053-00 CIRCLIPCIRCLIP
-
593310-320G0-00 BEARINGBEARING
-
68AT-11400-01-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
783R-11412-01-00 ...CRANK 1...CRANK 1
-
88H8-11422-01-00 ...CRANK 2...CRANK 2
-
98H8-11432-01-00 ...CRANK 3...CRANK 3
-
108AT-11442-00-00 ...CRANK 4...CRANK 4
-
1190209-24073-00 ...WASHER...WASHER
-
128R6-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
1393310-524K4-00 ...BEARING...BEARING
-
148H8-11515-00-00 ...SEAL, LABYRINTH 1...SEAL, LABYRINTH 1
-
1591609-30010-00 ...PIN, SPRING...PIN, SPRING
-
1693306-30627-00 ...BEARING...BEARING
-
1793306-30628-00 ...BEARING...BEARING
-
1890201-33299-00 ...WASHER, PLATE...WASHER, PLATE
-
1993306-20617-00 ...BEARING (B6206)...BEARING (B6206)
-
2093306-20620-00 ...BEARING (B6206)...BEARING (B6206)
-
2193103-32095-00 ...OIL SEAL...OIL SEAL
-
228K2-13178-00-00 ...GEAR, PUMP DRIVE...GEAR, PUMP DRIVE
-
238A7-11685-00-00 ...WASHER, CRANK PIN...WASHER, CRANK PIN
-
2490280-05014-00 ...KEY, WOODRUFF...KEY, WOODRUFF
-
2593440-78069-00 CIRCLIPCIRCLIP
-
2693103-32156-00 OIL SEALOIL SEAL
-
2790280-05014-00 KEY, WOODRUFFKEY, WOODRUFF
-
2890170-16425-00 NUTNUT
-
2992907-16100-00 WASHERWASHER
