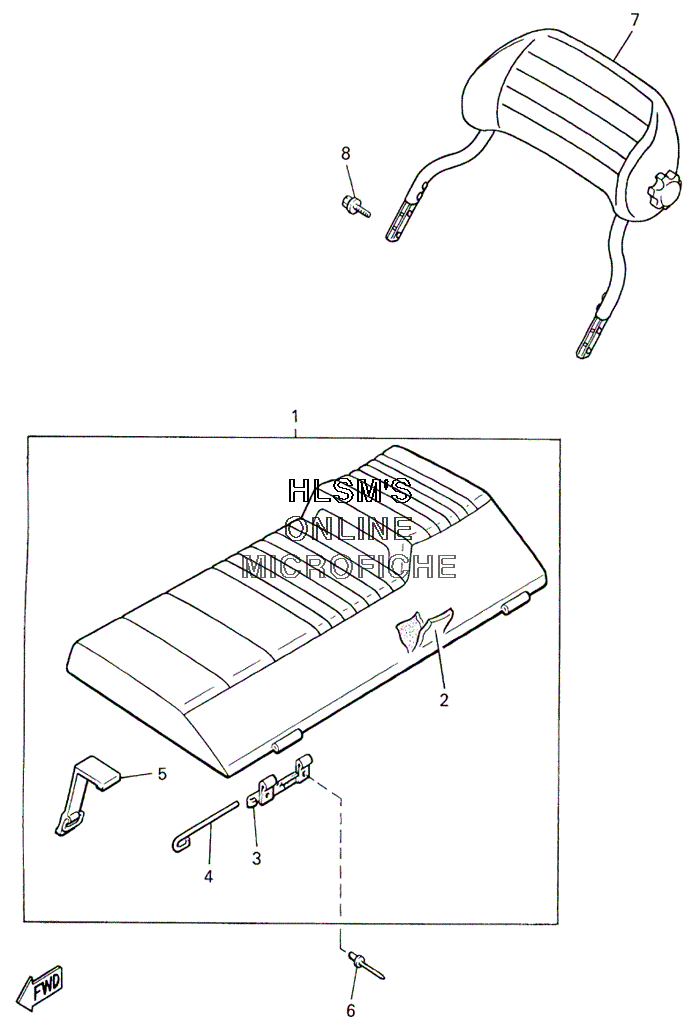

SEAT ASSY для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
18AC-24730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
28AC-2470F-00-00 ...COVER, SEAT...COVER, SEAT
-
383R-24729-00-00 ...SPACER 2...SPACER 2
-
486V-77384-00-00 ...PIN...PIN
-
58AT-24778-00-00 ...BAND, SEAT FITTING...BAND, SEAT FITTING
-
690267-48060-00 RIVET, BLINDRIVET, BLIND
-
78AC-24790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
890105-06437-00 BOLT, FLANGEBOLT, FLANGE
