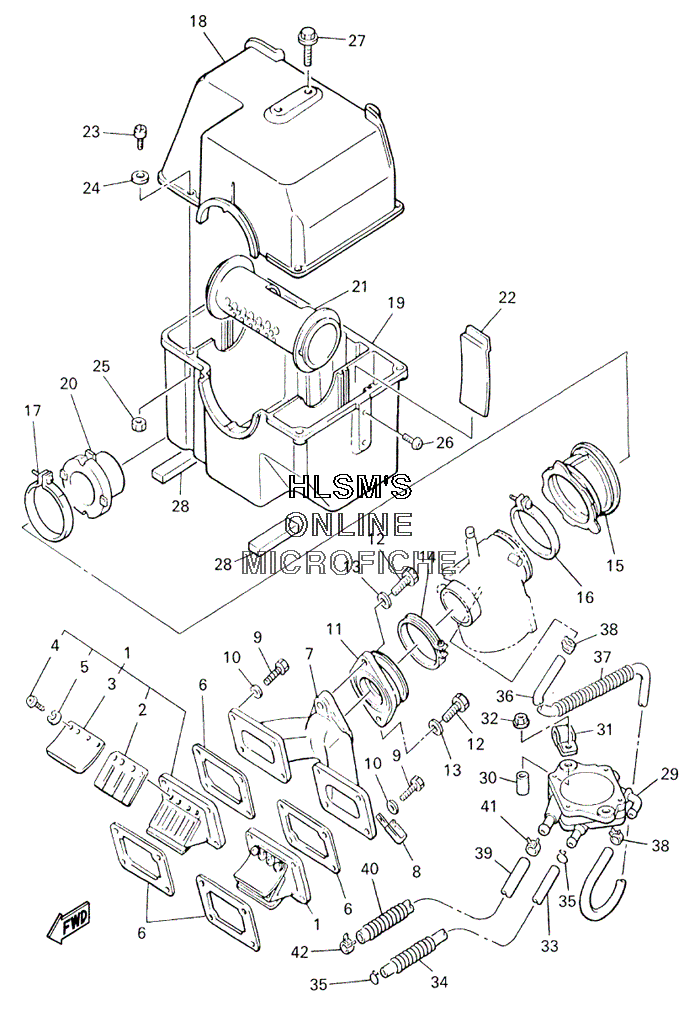

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
18AT-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
28AT-13613-00-00 ...REED, VALVE...REED, VALVE
-
38H8-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER...WASHER
-
68Y7-13556-01-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
783R-13565-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
890465-08277-00 CLAMPCLAMP
-
997027-06025-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
118G8-13555-01-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1297007-08025-00 BOLTBOLT
-
1392907-08600-00 WASHER, PLATEWASHER, PLATE
-
1490460-56073-00 CLAMP, HOSECLAMP, HOSE
-
1583R-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1690460-68230-00 CLAMP, HOSECLAMP, HOSE
-
1790450-99050-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
188H8-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
198H8-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
2083R-14465-00-00 PIPEPIPE
-
218H8-14466-00-00 PIPEPIPE
-
228H8-14477-00-00 PLATEPLATE
-
2398507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2492907-05600-00 WASHER, PLATEWASHER, PLATE
-
2595307-05700-00 NUTNUT
-
2698507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2790109-065E6-00 BOLTBOLT
-
2883R-14425-00-00 DAMPER 1DAMPER 1
-
298AT-24410-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
3090387-063W4-00 COLLARCOLLAR
-
3190465-08316-00 CLAMPCLAMP
-
3295707-06500-00 NUT, FLANGENUT, FLANGE
-
3390445-11735-00 HOSE (L320)HOSE (L320)
-
3490501-084G9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3590467-11032-00 CLIPCLIP
-
3690445-092K1-00 HOSE (L420)HOSE (L420)
-
3790501-084J0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3890467-09026-00 CLIPCLIP
-
3990445-114K5-00 HOSE (L80)HOSE (L80)
-
4084M-24327-00-00 PROTECTOR, PIPEPROTECTOR, PIPE
-
4190467-11032-00 CLIPCLIP
-
4290467-11009-00 CLIPCLIP
