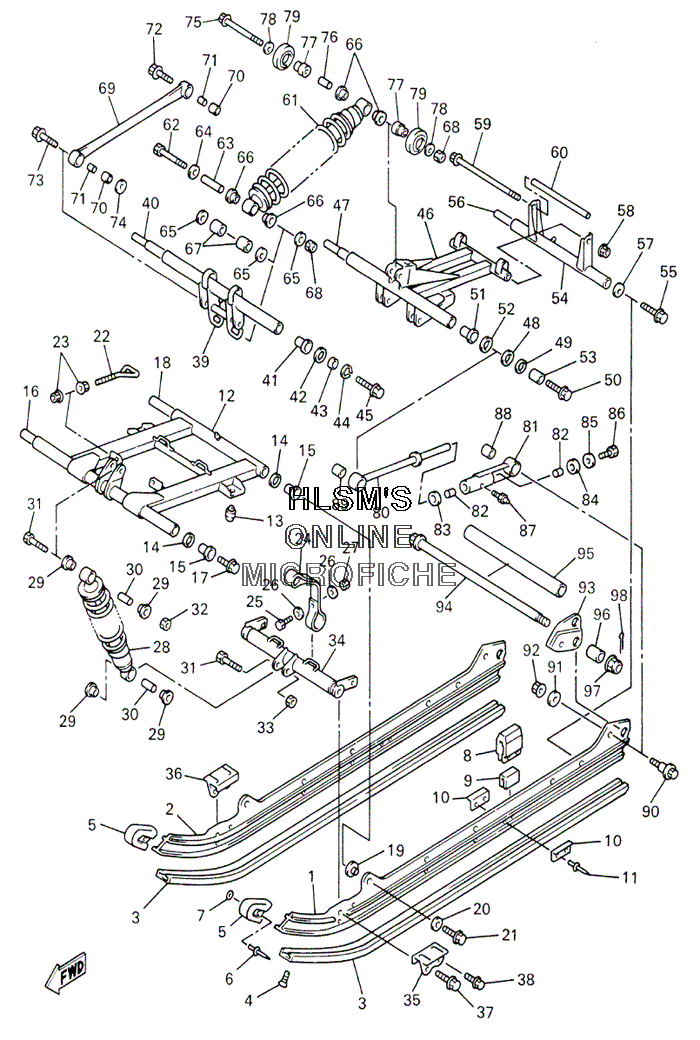

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha VIKING 540 - 2002 года выпуска
-
№АртикулНазвание
-
18AC-47411-10-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28AC-47414-10-00 FRAME, SLIDING 4FRAME, SLIDING 4
-
38AC-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
490151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
58CM-47422-10-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
690267-48194-00 RIVET, BLINDRIVET, BLIND
-
790201-047R8-00 WASHER, PLATEWASHER, PLATE
-
88AC-47457-00-00 DAMPER 2DAMPER 2
-
98AC-47341-00-00 SPACERSPACER
-
108AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLINDRIVET, BLIND
-
128AC-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
1383M-21488-00-00 DAMPERDAMPER
-
1490201-210U0-00 WASHER, PLATEWASHER, PLATE
-
1590381-19111-00 BUSH, SOLIDBUSH, SOLID
-
168AC-47465-00-00 SHAFT 1SHAFT 1
-
1790105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
1883R-47485-02-00 SHAFT 3SHAFT 3
-
1990387-105G6-00 COLLARCOLLAR
-
2090201-100L3-00 WASHER, PLATEWASHER, PLATE
-
2190105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
228CR-47448-00-00 HOOK 3HOOK 3
-
2395707-08500-00 NUT, FLANGENUT, FLANGE
-
248CV-47495-00-00 STOPPER 1STOPPER 1
-
2597007-06025-00 BOLTBOLT
-
2690201-06747-00 WASHER, PLATEWASHER, PLATE
-
2795707-06300-00 NUT, FLANGENUT, FLANGE
-
288AC-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
2990381-14101-00 BUSH, SOLIDBUSH, SOLID
-
3090387-105G5-00 COLLARCOLLAR
-
3190101-10738-00 BOLTBOLT
-
3290185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3395607-10100-00 NUT, UNUT, U
-
348AC-47418-00-00 BRACKET 4BRACKET 4
-
358DF-47463-01-00 BRACKET 5BRACKET 5
-
368DF-47464-01-00 BRACKET 6BRACKET 6
-
3790105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
3890105-08450-00 BOLT, FLANGEBOLT, FLANGE
-
398AC-47416-00-00 BRACKET 2BRACKET 2
-
408AC-47488-10-00 SHAFT 6SHAFT 6
-
4190381-22099-00 BUSH, SOLIDBUSH, SOLID
-
4290201-207J5-00 WASHER, PLATEWASHER, PLATE
-
4390387-2004V-00 COLLARCOLLAR
-
4499009-20400-00 CIRCLIPCIRCLIP
-
4590105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
468AC-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
478AC-47475-00-00 SHAFT 2SHAFT 2
-
4890201-266L1-00 WASHER, PLATEWASHER, PLATE
-
4990201-250T6-00 WASHER, PLATEWASHER, PLATE
-
5090105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
5190381-28108-00 BUSH, SOLIDBUSH, SOLID
-
5290201-286K9-00 WASHER, PLATEWASHER, PLATE
-
5390387-2515E-00 COLLARCOLLAR
-
548AC-47417-00-00 BRACKET 3BRACKET 3
-
5590105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
5683R-47485-02-00 SHAFT 3SHAFT 3
-
5790201-10136-00 WASHER, PLATEWASHER, PLATE
-
5895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5995827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
6090387-083G6-00 COLLARCOLLAR
-
618AC-47480-30-00 SHOCK ABSORBERSHOCK ABSORBER
-
628AC-4631K-00-00 BOLT, ADJBOLT, ADJ
-
6390387-1009S-00 COLLARCOLLAR
-
6490201-103U4-00 WASHER, PLATEWASHER, PLATE
-
6590201-100U1-00 WASHER, PLATEWASHER, PLATE
-
6690381-14101-00 BUSH, SOLIDBUSH, SOLID
-
6790387-1404R-00 COLLARCOLLAR
-
6895607-10100-00 NUT, UNUT, U
-
698CR-47494-01-00 ROD, RELAYROD, RELAY
-
7090381-14109-00 BUSH, SOLIDBUSH, SOLID
-
7190387-100X3-00 COLLARCOLLAR
-
7290105-10739-00 BOLT, FLANGEBOLT, FLANGE
-
7390105-10436-00 BOLT, FLANGEBOLT, FLANGE
-
7490201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7590105-10105-00 BOLT, FLANGEBOLT, FLANGE
-
7690387-105G5-00 COLLARCOLLAR
-
778AC-47366-00-00 COLLAR 2COLLAR 2
-
7890201-10136-00 WASHER, PLATEWASHER, PLATE
-
798AC-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
808AC-4745A-00-00 ROD, CONTROL 1ROD, CONTROL 1
-
818CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
8290384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
8390202-16231-00 WASHER, PLATEWASHER, PLATE
-
8490202-16232-00 WASHER, PLATEWASHER, PLATE
-
8590201-106F2-00 WASHER, PLATEWASHER, PLATE
-
8697027-10025-00 BOLTBOLT
-
8793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
8890380-22232-00 BUSH, SOLIDBUSH, SOLID
-
8990380-28235-00 BUSH, SOLIDBUSH, SOLID
-
908DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
9190201-101U2-00 WASHER, PLATEWASHER, PLATE
-
9295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
938AC-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
9483R-47520-00-00 REAR AXLE COMP.REAR AXLE COMP.
-
9583R-47469-00-00 COLLAR 1COLLAR 1
-
9690387-203H0-00 COLLARCOLLAR
-
9790185-14142-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
9891401-30025-00 PIN, COTTERPIN, COTTER
