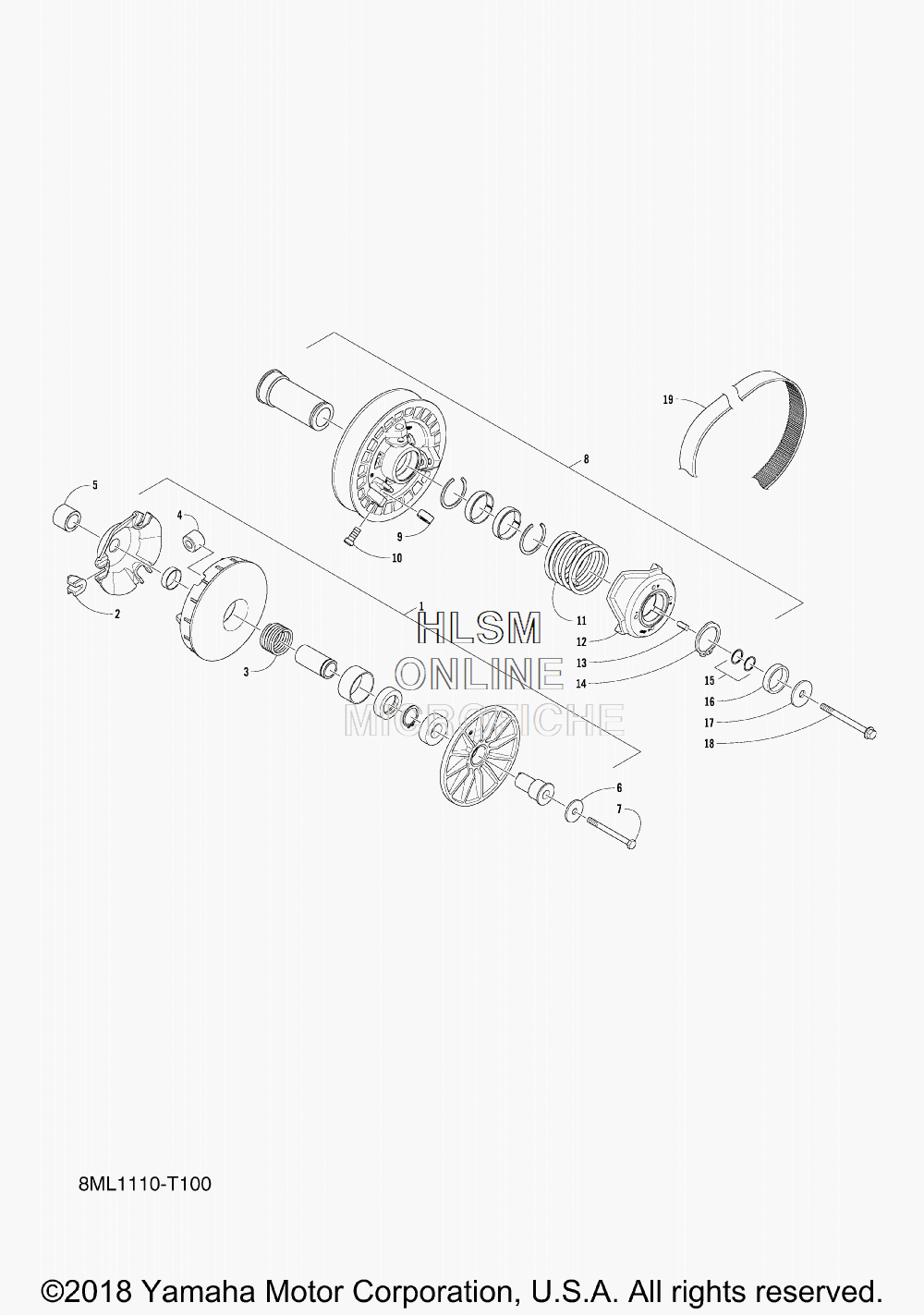

CLUTCH для Yamaha SNOSCOOT - 2018 года выпуска
-
№АртикулНазвание
-
18ML-E760P-00-00 PRIMARY CLUTCH ASSYPRIMARY CLUTCH ASSY
-
28ML-E7653-00-00 ...SLIDER...SLIDER
-
38ML-E7643-00-00 ...SPRING, PRIMARY...SPRING, PRIMARY
-
48ML-E7624-00-00 ...ROLLER, COMP...ROLLER, COMP
-
48ML-E7624-A0-00 ...ROLLER, COMP. (6 GRAM) (OPT)...ROLLER, COMP. (6 GRAM) (OPT)
-
48ML-E7624-B0-00 ...ROLLER, COMP. (10 GRAM) (OPT)...ROLLER, COMP. (10 GRAM) (OPT)
-
58ML-E7649-00-00 SPACERSPACER
-
68JM-RA401-00-00 WASHER, PLAIN 11/32WASHER, PLAIN 11/32
-
78ML-RA103-00-00 BOLT, HEXAGON 5/16-24X1BOLT, HEXAGON 5/16-24X1
-
88ML-E7602-00-00 SECONDARY SHEAVE ASSYSECONDARY SHEAVE ASSY
-
98ML-E8178-00-00 ...ROLLER, SHIFT LEVER...ROLLER, SHIFT LEVER
-
108ML-RA206-00-00 ...SCREW, 1/4-20X1.125...SCREW, 1/4-20X1.125
-
118ML-E7683-00-00 ...SPRING, SECONDARY...SPRING, SECONDARY
-
128ML-E7644-00-00 ...SEAT,SPRING...SEAT,SPRING
-
138ML-E5796-00-00 ...KEY...KEY
-
148ML-E6819-00-00 ...CIRCLIP, CLUTCH...CIRCLIP, CLUTCH
-
158JP-RA446-00-00 WASHER, 25X36X1 (OPT)WASHER, 25X36X1 (OPT)
-
158JP-RA433-00-00 WASHER, 2 (OPT)WASHER, 2 (OPT)
-
168ML-E7654-00-00 SPACER 1SPACER 1
-
178JP-RA442-00-00 WASHER, 10.5X33X4WASHER, 10.5X33X4
-
188ML-RA1A6-00-00 BOLT, FLANGE M10X1.25X75BOLT, FLANGE M10X1.25X75
-
198ML-E7641-00-00 V-BELTV-BELT
