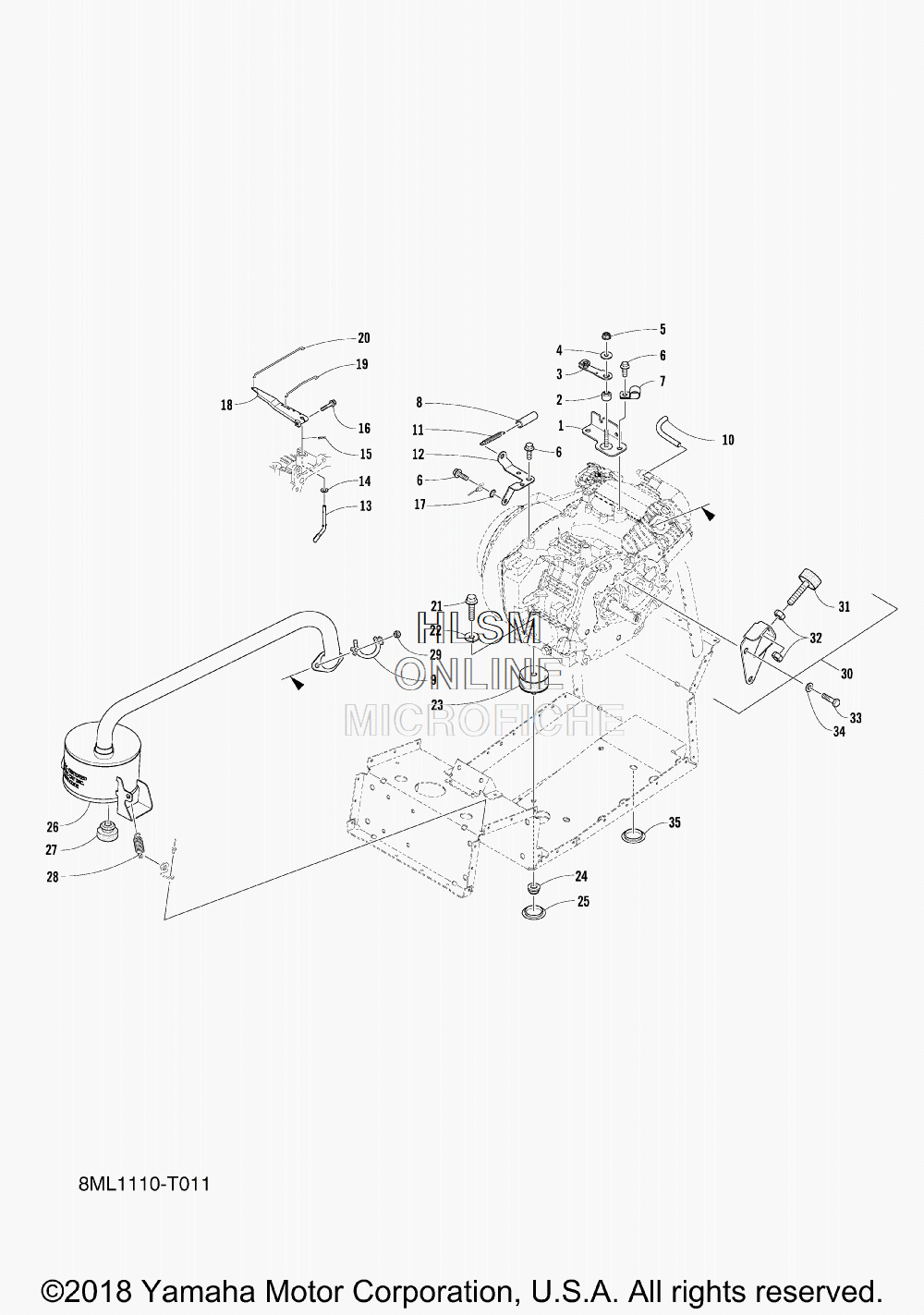

ENGINE MOUNTING для Yamaha SNOSCOOT - 2018 года выпуска
-
№АртикулНазвание
-
18ML-E3733-00-00 BRACKET, THROTTLEBRACKET, THROTTLE
-
28JM-E3576-00-00 SPACERSPACER
-
38ML-E3726-00-00 LEVER, THROTTLELEVER, THROTTLE
-
48JM-RA400-00-00 WASHER, PLAIN 1/4WASHER, PLAIN 1/4
-
58JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
68JM-RA100-00-00 BOLT, FLANGE M8-1.25X16BOLT, FLANGE M8-1.25X16
-
78ML-RAB05-00-00 CLAMP, 3CLAMP, 3
-
88ML-E243A-00-00 HOSE 1HOSE 1
-
97DH-E4616-00-00 WASHERWASHER
-
1090445-13809-00 HOSEHOSE
-
118ML-RAD03-00-00 SPRING, TENSION 2SPRING, TENSION 2
-
128ML-E1011-00-00 BRACKET, ENGINE 1BRACKET, ENGINE 1
-
137CN-E1922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
1492902-06200-00 WASHERWASHER
-
1590468-18800-00 CLIPCLIP
-
1697522-06530-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
178JM-RA407-00-00 WASHER, TOOTHED LOCK 1/4WASHER, TOOTHED LOCK 1/4
-
187CN-E1924-40-00 ARM, GOVERNORARM, GOVERNOR
-
198ML-E1928-00-00 ROD, LINKROD, LINK
-
207CN-E1928-00-00 ROD, LINKROD, LINK
-
218JP-RA188-00-00 BOLT, FLANGE M8X1.25X30BOLT, FLANGE M8X1.25X30
-
228JM-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
238ML-F1485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
248JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
258JM-RA602-00-00 PLUG, 3PLUG, 3
-
268ML-E4750-00-00 SILENCER ASSYSILENCER ASSY
-
278JP-E5357-00-00 GROMMETGROMMET
-
288JM-RAD04-00-00 SPRING, TENSION 3SPRING, TENSION 3
-
2990185-06040-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
308ML-F1486-00-00 DAMPER 2DAMPER 2
-
318ML-F2201-00-00 DAMPER SUB ASSYDAMPER SUB ASSY
-
328JP-RA369-00-00 NUT, HEX. M10X1.25NUT, HEX. M10X1.25
-
338ML-RA105-00-00 BOLT, HEXAGON 5/16-24X0.75BOLT, HEXAGON 5/16-24X0.75
-
348ML-RA403-00-00 WASHER, PLAIN 5/16WASHER, PLAIN 5/16
-
358ML-F2417-00-00 PLUGPLUG
