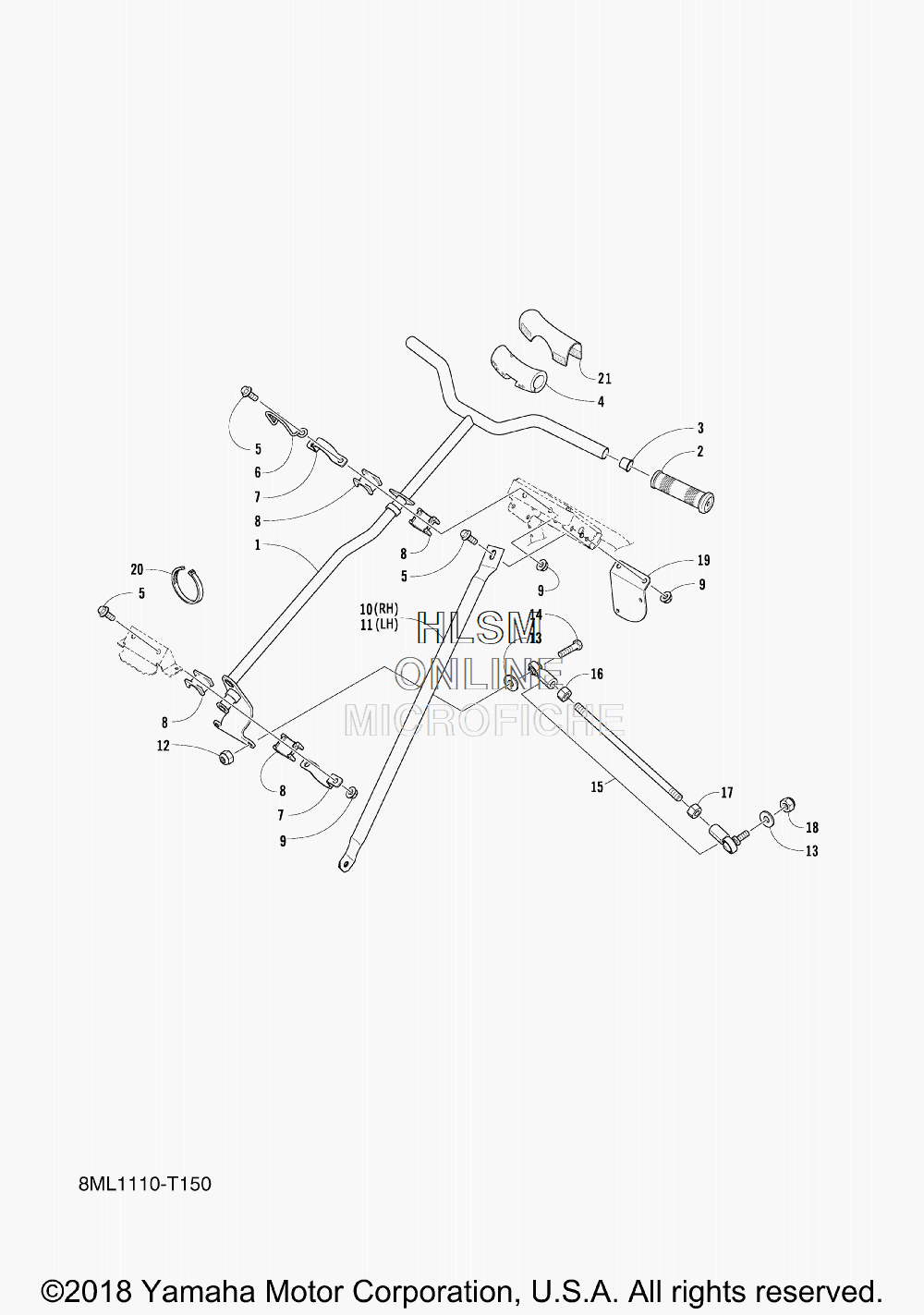

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SNOSCOOT - 2018 года выпуска

№

Артикул

Название
1

8ML-F3811-00-00 COLUMN, STEERING

COLUMN, STEERING

0 ₽
2

8JM-F6241-10-00 GRIP

GRIP

0 ₽
3

8JR-F3856-10-00 NUT

NUT

280 ₽
4

8JM-F3817-00-00 PAD, STEERING

PAD, STEERING

7 870 ₽
5

8MV-RA106-00-00 BOLT, FLANGE 1/4-20X0.75

BOLT, FLANGE 1/4-20X0.75

0 ₽
6

8MV-F3389-00-00 GUIDE, CABLE

GUIDE, CABLE

0 ₽
7

8JM-F3872-00-00 HOLDER, BEARING

HOLDER, BEARING

0 ₽
8

8JM-F3812-00-00 BEARING, STEERING

BEARING, STEERING

2 670 ₽
9

8JP-RA357-00-00 NUT, FLANGE LOCKING 1/4-20

NUT, FLANGE LOCKING 1/4-20

310 ₽
10

8MV-F119E-00-00 PIPE, CROSS, 7

PIPE, CROSS, 7

0 ₽
11

8MV-F119F-00-00 PIPE CROSS 8

PIPE CROSS 8

0 ₽
12

8JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18

NUT, SELF-LOCKING 5/16-18

480 ₽
13

8JM-RA403-00-00 WASHER, PLAIN 5/16

WASHER, PLAIN 5/16

340 ₽
14

8JM-RA104-00-00 BOLT, FLANGE 5/16-18X1.25

BOLT, FLANGE 5/16-18X1.25

0 ₽
15

8JM-F3830-00-00 TIE ROD ASSY

TIE ROD ASSY

40 160 ₽
16

8JM-RA307-00-00 ...NUT, HEXAGON 5/16-24 (LEFT HAND THREAD)

...NUT, HEXAGON 5/16-24 (LEFT HAND THREAD)

0 ₽
17

8JM-RA308-00-00 ...NUT, HEXAGON 5/16-24 (RIGHT HAND THREAD)

...NUT, HEXAGON 5/16-24 (RIGHT HAND THREAD)

0 ₽
18

8JM-RA306-00-00 NUT, SELF-LOCKING 5/16-24

NUT, SELF-LOCKING 5/16-24

0 ₽
19

8ML-F4491-00-00 BRACKET, FUEL PUMP

BRACKET, FUEL PUMP

0 ₽
20

8JM-RAB01-00-00 CLAMP, 2 (8 INCH)

CLAMP, 2 (8 INCH)

0 ₽
21

8JM-F3818-10-00 COVER, STEERING (DPBSE - PURPLISH BLUE)

COVER, STEERING (DPBSE - PURPLISH BLUE)

0 ₽
21

8JM-F3818-00-00 COVER, STEERING (MDGR - GREY FOR BWS1 - WHITE)

COVER, STEERING (MDGR - GREY FOR BWS1 - WHITE)

16 850 ₽
