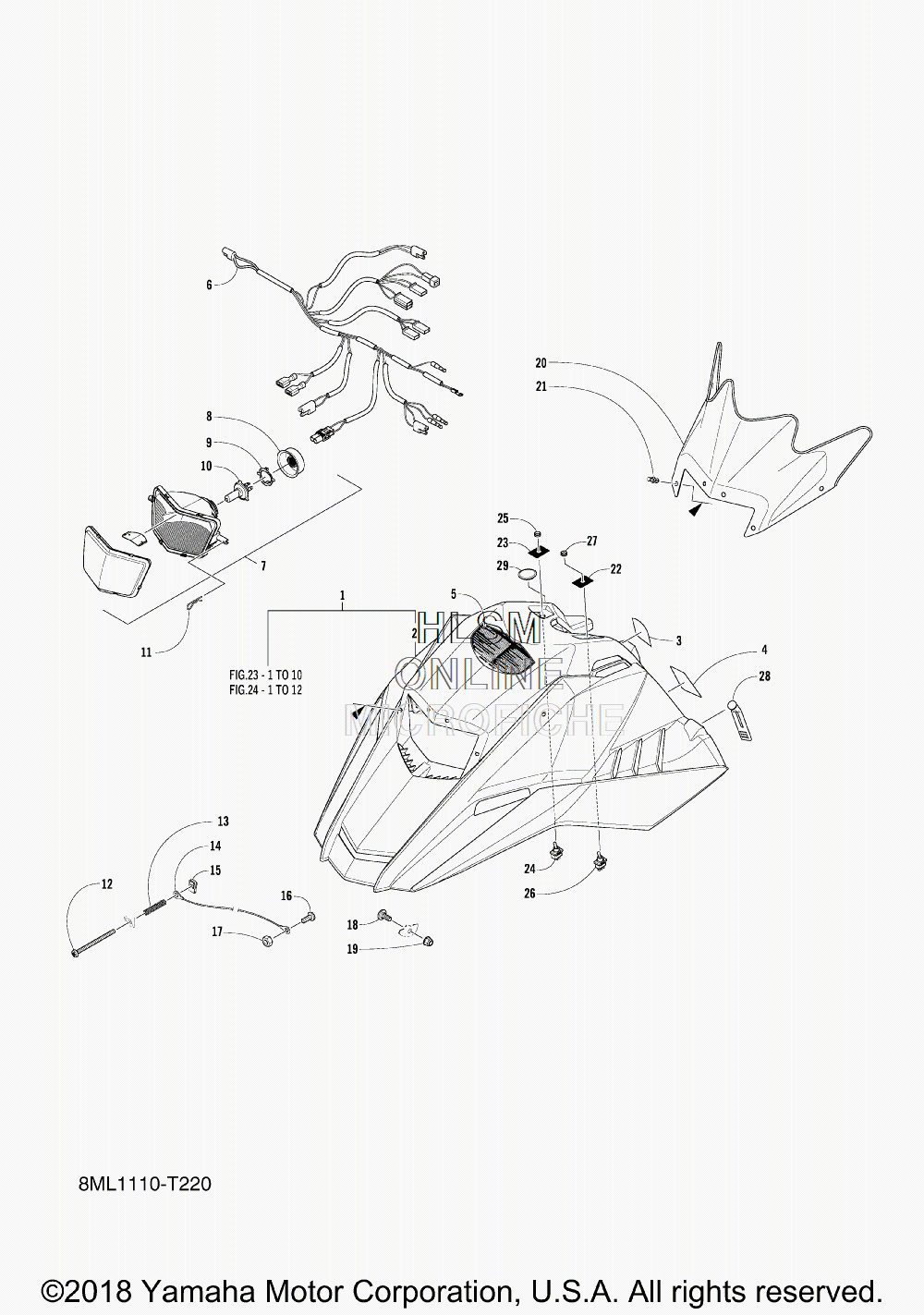

HOOD - WINDSHIELD ASSY для Yamaha SNOSCOOT - 2018 года выпуска
-
№АртикулНазвание
-
18ML-RAS10-10-00 SHROUD, WITH DECALS AND LABELS (DPBSE - PURPLISH BLUE)SHROUD, WITH DECALS AND LABELS (DPBSE - PURPLISH BLUE)
-
18ML-RAS10-30-00 SHROUD, WITH DECALS AND LABELS (MDGR - GREY FOR BWS1 - WHITE)SHROUD, WITH DECALS AND LABELS (MDGR - GREY FOR BWS1 - WHITE)
-
28ML-RAS30-30-00 ...SHROUD, WITH LABELS (MDGR - GREY FOR BWS1 - WHITE)...SHROUD, WITH LABELS (MDGR - GREY FOR BWS1 - WHITE)
-
28ML-RAS30-10-00 ...SHROUD, WITH LABELS (DPBSE - PURPLISH BLUE)...SHROUD, WITH LABELS (DPBSE - PURPLISH BLUE)
-
38ML-F1697-00-00 ...LABEL, CAUTION 2 (FRENCH)...LABEL, CAUTION 2 (FRENCH)
-
38ML-F1696-00-00 ...LABEL, CAUTION (ENGLISH)...LABEL, CAUTION (ENGLISH)
-
48ML-F151E-00-00 ...LABEL 2 (ENGLISH)...LABEL 2 (ENGLISH)
-
48ML-F151F-00-00 ...LABEL 3 (FRENCH)...LABEL 3 (FRENCH)
-
58ML-K7761-00-00 ...LABEL, WARNING 1...LABEL, WARNING 1
-
68ML-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
78ML-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
88ML-H4397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
98JP-H4393-00-00 ...SPRING SUPPORT...SPRING SUPPORT
-
108JR-H4314-00-00 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
118MV-H4374-00-00 CLIPCLIP
-
128MV-RA210-00-00 SCREW,10-24X2SCREW,10-24X2
-
138MV-RAD07-00-00 SPRING, COMPRESSION 3SPRING, COMPRESSION 3
-
148MV-K7118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
158JP-RA354-00-00 NUT, CLIP M6NUT, CLIP M6
-
168JM-RA209-00-00 SCREW, 10-24X1/2SCREW, 10-24X1/2
-
178JM-RA319-00-00 NUT, SELF-LOCKING. 10-24NUT, SELF-LOCKING. 10-24
-
188JP-RA253-00-00 SCREW, M6-1.0X18SCREW, M6-1.0X18
-
198MV-RA357-00-00 NUT, FLANGE LOCKING 1/4-20NUT, FLANGE LOCKING 1/4-20
-
208ML-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
218ML-RA511-00-00 RIVET, 2RIVET, 2
-
228ML-K7229-00-00 LABELLABEL
-
238MV-K7229-00-00 LABELLABEL
-
248JM-H1860-00-00 SWITCH ASSYSWITCH ASSY
-
258JM-RA345-00-00 ...NUT, 1...NUT, 1
-
268ML-H1860-00-00 SWITCH ASSYSWITCH ASSY
-
278JM-RA345-00-00 ...NUT, 1...NUT, 1
-
288JM-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
298JM-RA602-00-00 PLUG, 3PLUG, 3
