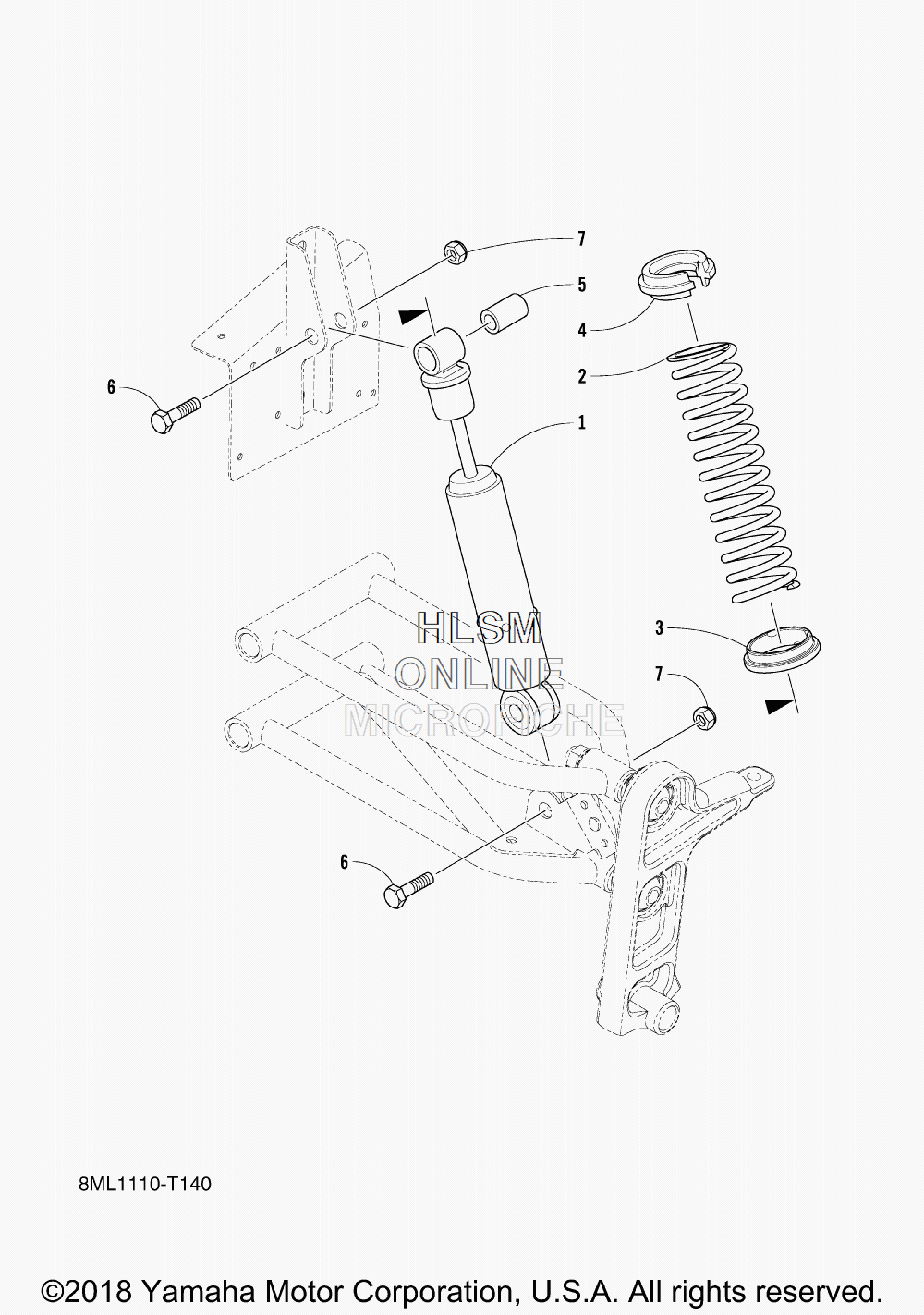

SUSPENSION - REAR ABSORBER для Yamaha SNOSCOOT - 2018 года выпуска
-
№АртикулНазвание
-
18JM-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
28JM-F3760-00-00 SPRING ASSY 1SPRING ASSY 1
-
38JM-F3777-00-00 SEAT, SPRING 2SEAT, SPRING 2
-
48JM-F3768-00-00 SEAT, SPRING 1SEAT, SPRING 1
-
58JM-RA704-00-00 COLLAR, 9COLLAR, 9
-
68JM-RA109-00-00 BOLT, HEXAGON 3/8-16X1.5BOLT, HEXAGON 3/8-16X1.5
-
78JM-RA305-00-00 NUT, SELF-LOCKING 3/8-16NUT, SELF-LOCKING 3/8-16
