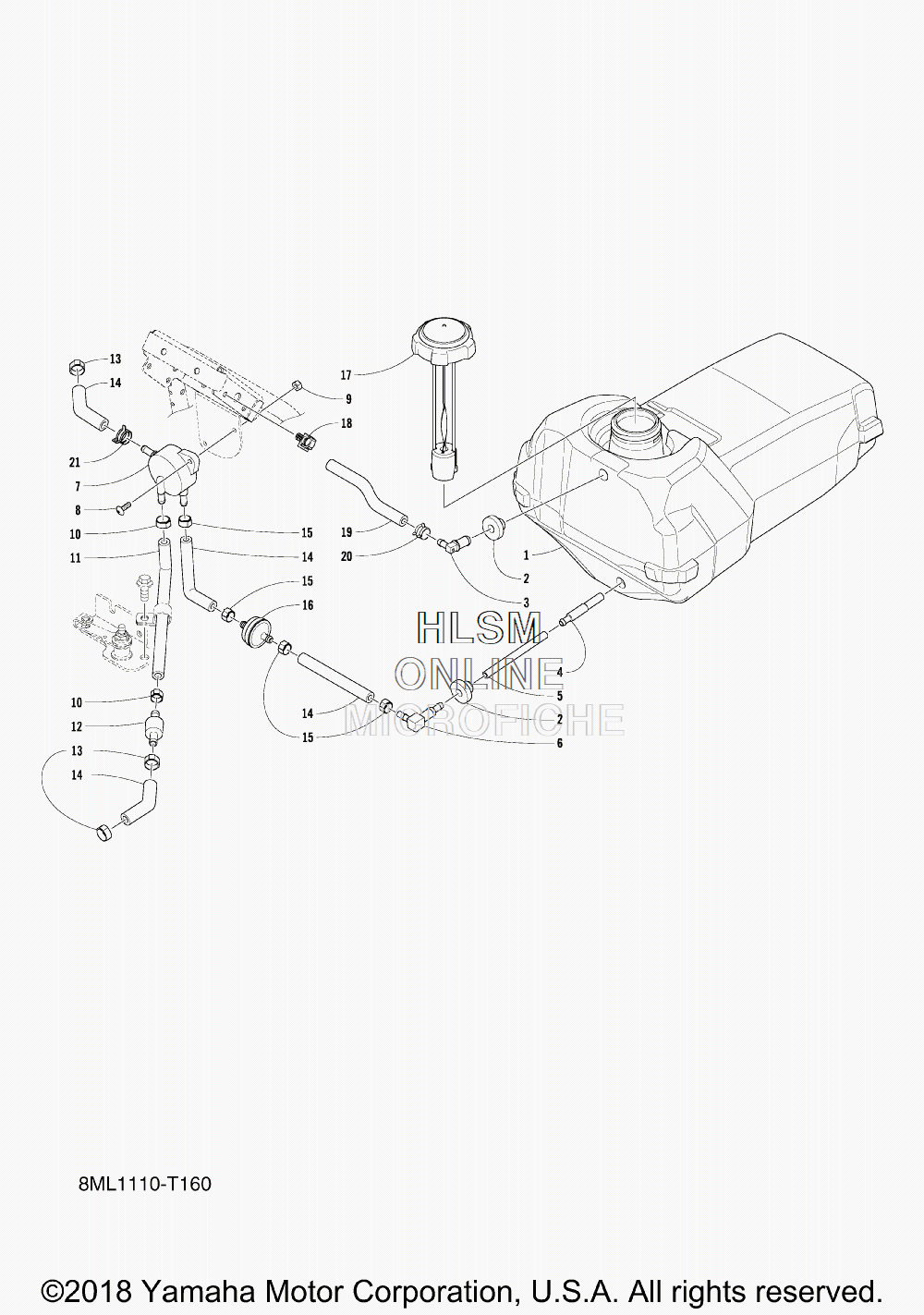

FUEL TANK ASSY для Yamaha SNOSCOOT - 2018 года выпуска
-
№АртикулНазвание
-
18ML-F4111-00-00 TANK, FUELTANK, FUEL
-
28JP-E5367-00-00 ...GROMMET...GROMMET
-
38KC-F4376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
48LN-F4536-00-00 ...STRAINER...STRAINER
-
58LN-F452B-00-00 ...HOSE, FUEL OUTLET...HOSE, FUEL OUTLET
-
68ML-F4376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
7JR4-24410-00-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
88ML-F3119-00-00 PLUG, DRAINPLUG, DRAIN
-
98JM-RA319-00-00 NUT, SELF-LOCKING. 10-24NUT, SELF-LOCKING. 10-24
-
108JM-RAC01-00-00 CLIP, 2CLIP, 2
-
118ML-RA900-00-00 HOSE, 13HOSE, 13
-
124YR-24560-00-00 FILTER ASSYFILTER ASSY
-
138JP-RAB08-00-00 CLAMP, 6CLAMP, 6
-
148ML-RA902-00-00 HOSE, 11HOSE, 11
-
158JM-RAC02-00-00 CLIP, 3CLIP, 3
-
168JM-F4501-01-00 FILTER, FUELFILTER, FUEL
-
178ML-F4611-00-00 BODY, CAPBODY, CAP
-
188ML-F4387-00-00 CLIPCLIP
-
198JP-RA907-00-00 HOSE, 3 (50 FEET)HOSE, 3 (50 FEET)
-
208KC-RAB02-00-00 CLAMP, 3CLAMP, 3
-
218JP-RAB13-00-00 CLAMP, 11CLAMP, 11
