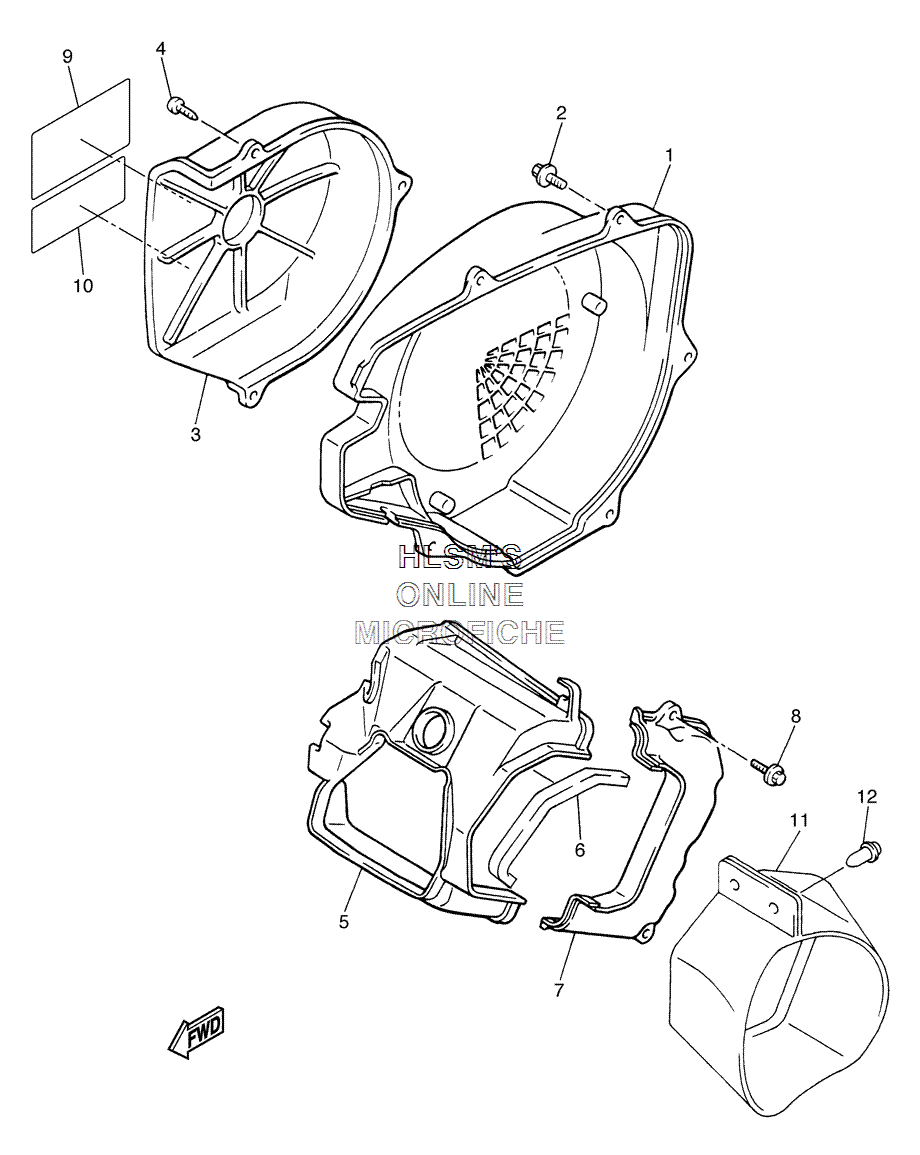

AIR SHROUD W/ FAN для Yamaha PRO HAULER 700 - 2004 года выпуска
-
№АртикулНазвание
-
1JN6-12621-00-00 CASE, FANCASE, FAN
-
295807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
3JN6-12616-00-00 COVER, FAN CASECOVER, FAN CASE
-
497707-60520-00 SCREW, TAPPINGSCREW, TAPPING
-
5JN6-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
6JR7-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
7JN6-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
9JR6-2179R-01-00 PLATE, EPA 2 (CALIF.)PLATE, EPA 2 (CALIF.)
-
107UH-2111F-00-00 LABEL, EMISSIONLABEL, EMISSION
-
11JN6-E2691-00-00 DUCT, 1DUCT, 1
-
1290269-08813-00 RIVET, PLASTIC MATRIVET, PLASTIC MAT
