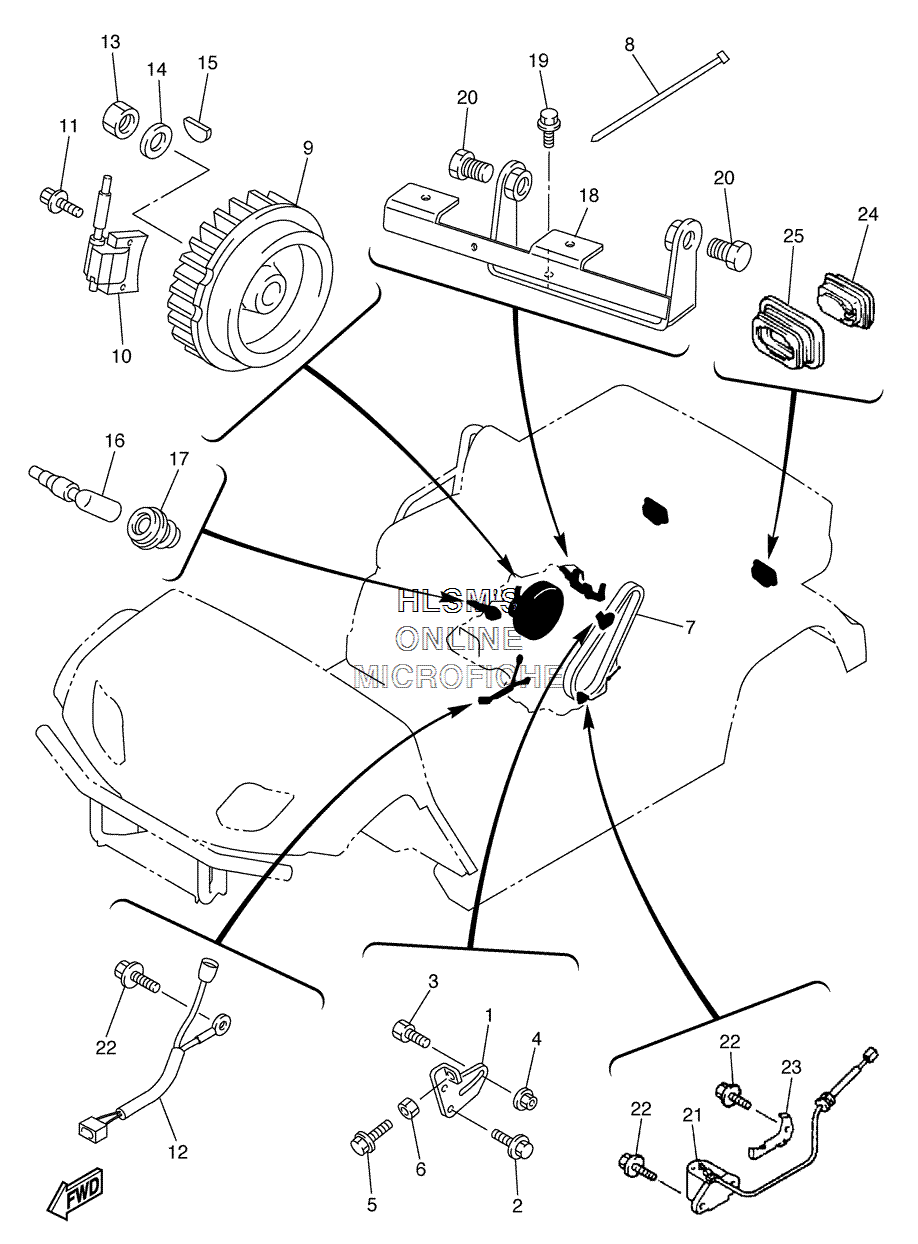

ELECTRICAL для Yamaha PRO HAULER 700 - 2004 года выпуска
-
№АртикулНазвание
-
1JN6-H1170-00-00 TENSIONER ASSY.TENSIONER ASSY.
-
29582P-08020-00 BOLT, FLANGEBOLT, FLANGE
-
390109-08875-00 BOLTBOLT
-
495707-08500-00 NUT, FLANGENUT, FLANGE
-
590101-06478-00 BOLTBOLT
-
695307-06600-00 NUTNUT
-
7JN6-H1173-00-00 BELTBELT
-
890464-09823-00 CLAMPCLAMP
-
9JR7-85650-00-00 ROTOR ASSY.ROTOR ASSY.
-
10JN6-85640-01-00 T.C.I. UNIT ASSY.T.C.I. UNIT ASSY.
-
1195827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
12JN6-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
1395307-18600-00 NUTNUT
-
1490201-18620-00 WASHER, PLATEWASHER, PLATE
-
1590280-04052-00 KEY, WOODRUFFKEY, WOODRUFF
-
16JN6-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
17JE8-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
18JN6-H1171-00-00 BRACKET, STARTER GENERATORBRACKET, STARTER GENERATOR
-
199582P-08020-00 BOLT, FLANGEBOLT, FLANGE
-
209581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
21JN6-85720-12-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
2295827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
23JN6-85724-00-00 CLAMPCLAMP
-
24JN3-H4700-00-00 TAILLIGHT ASSY.TAILLIGHT ASSY.
-
25JN3-H4718-00-00 GROMMETGROMMET
