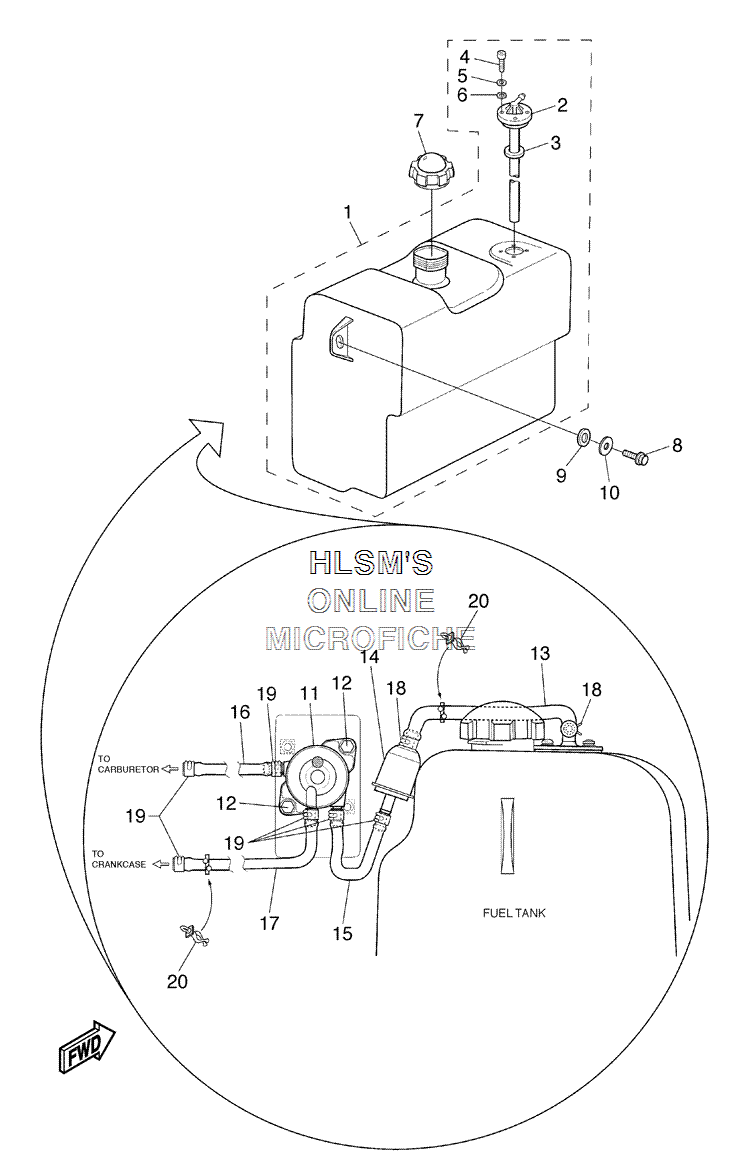

FUEL TANK ASSY. для Yamaha PRO HAULER 700 - 2004 года выпуска
-
№АртикулНазвание
-
1JN6-F4110-01-00 FUEL TANK COMP.FUEL TANK COMP.
-
2JN3-F4300-02-00 ...FUEL PIPE JOINT...FUEL PIPE JOINT
-
393210-228C4-00 ...O-RING...O-RING
-
498507-05014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
692907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
7JN6-F4610-00-00 CAP ASSY.CAP ASSY.
-
890105-08878-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990560-08251-00 SPACERSPACER
-
1090201-088S2-00 WASHER, PLATEWASHER, PLATE
-
11JN6-F4410-10-00 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
12JN6-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
13JN6-F4312-20-00 PIPE 2PIPE 2
-
14JN6-F4560-00-00 FILTER ASSY.FILTER ASSY.
-
15JN6-F4311-20-00 PIPE, FUEL 1PIPE, FUEL 1
-
16JN6-F4313-20-00 PIPE 3PIPE 3
-
17JU7-F4314-00-00 PIPE 4PIPE 4
-
1890467-12845-00 CLIP, SCISSORCLIP, SCISSOR
-
1990467-10846-00 CLIPCLIP
-
2090464-11816-00 CLAMPCLAMP
