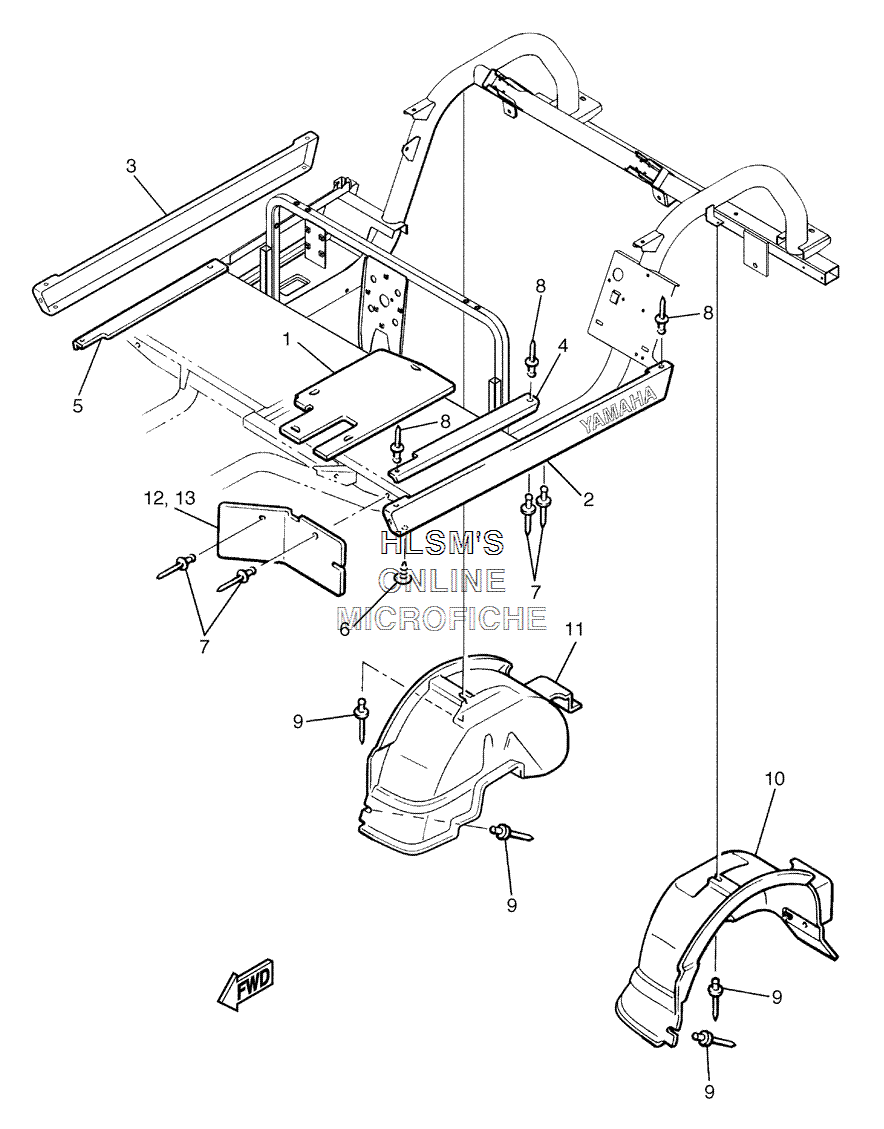

BODY FITTING для Yamaha PRO HAULER 700 - 2004 года выпуска
-
№АртикулНазвание
-
1JN6-K8271-00-00 SERVICE LID, PEDALSERVICE LID, PEDAL
-
2JU0-K818A-00-00 PROTECTOR, SIDE PLATEPROTECTOR, SIDE PLATE
-
3JU0-K818B-00-00 PROTECTOR, SIDE PLATE 2PROTECTOR, SIDE PLATE 2
-
4JF2-K8215-10-00 PLATE, SIDE TRIMPLATE, SIDE TRIM
-
5JF2-K821F-10-00 PLATE, SIDE TRIMPLATE, SIDE TRIM
-
690338-05829-00 PLUGPLUG
-
790267-48831-00 RIVET, BLINDRIVET, BLIND
-
890267-48154-00 RIVET, BLINDRIVET, BLIND
-
990267-48086-00 RIVET, BLINDRIVET, BLIND
-
10JF2-K8191-00-00 PANEL, REAR FENDER 1PANEL, REAR FENDER 1
-
11JF2-K8192-00-00 PANEL, REAR FENDER 2PANEL, REAR FENDER 2
-
12JF2-K8187-00-00 FLAP, FRONT FENDER (L.H)FLAP, FRONT FENDER (L.H)
-
13JF2-K8189-00-00 FLAP, FRONT FENDER (R.H)FLAP, FRONT FENDER (R.H)
