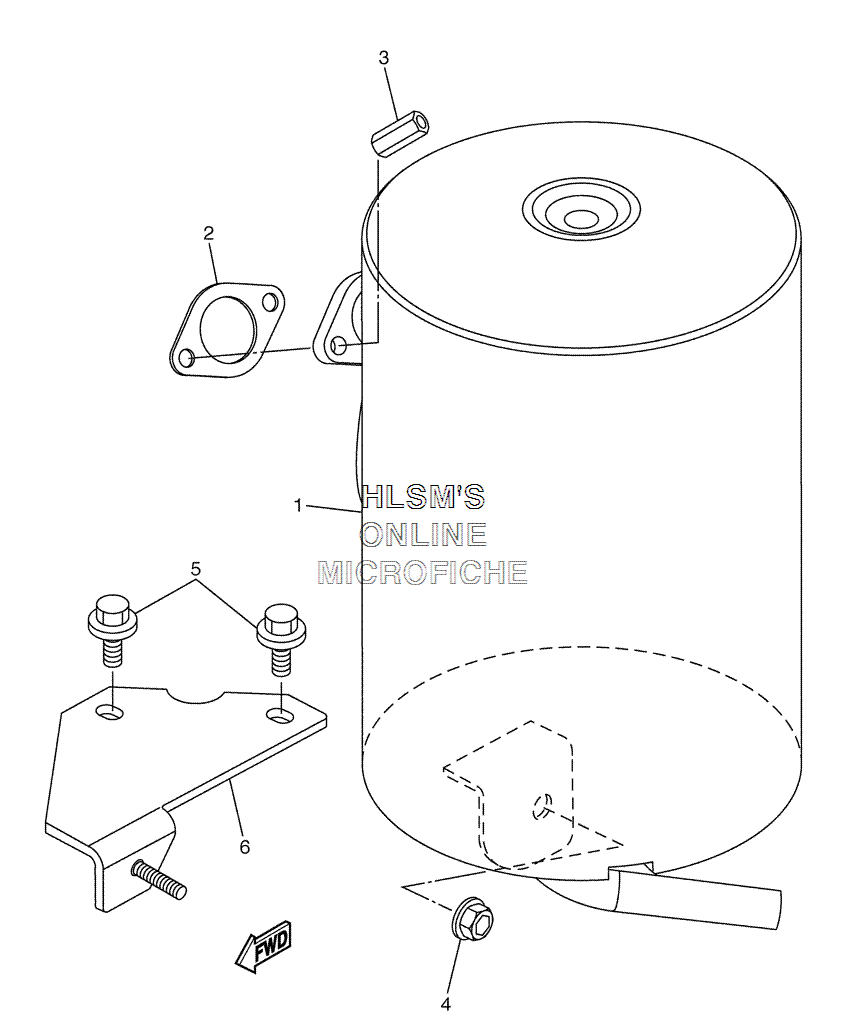

EXHAUST ASSY. для Yamaha PRO HAULER 700 - 2004 года выпуска
-
№АртикулНазвание
-
1JU0-E4710-10-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
27KY-14613-01-00 GASKET, EXHAUSTGASKET, EXHAUST
-
390179-08879-00 NUTNUT
-
490185-08841-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590119-08825-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6JN6-F1435-10-00 BRACKET, MUFFLERBRACKET, MUFFLER
