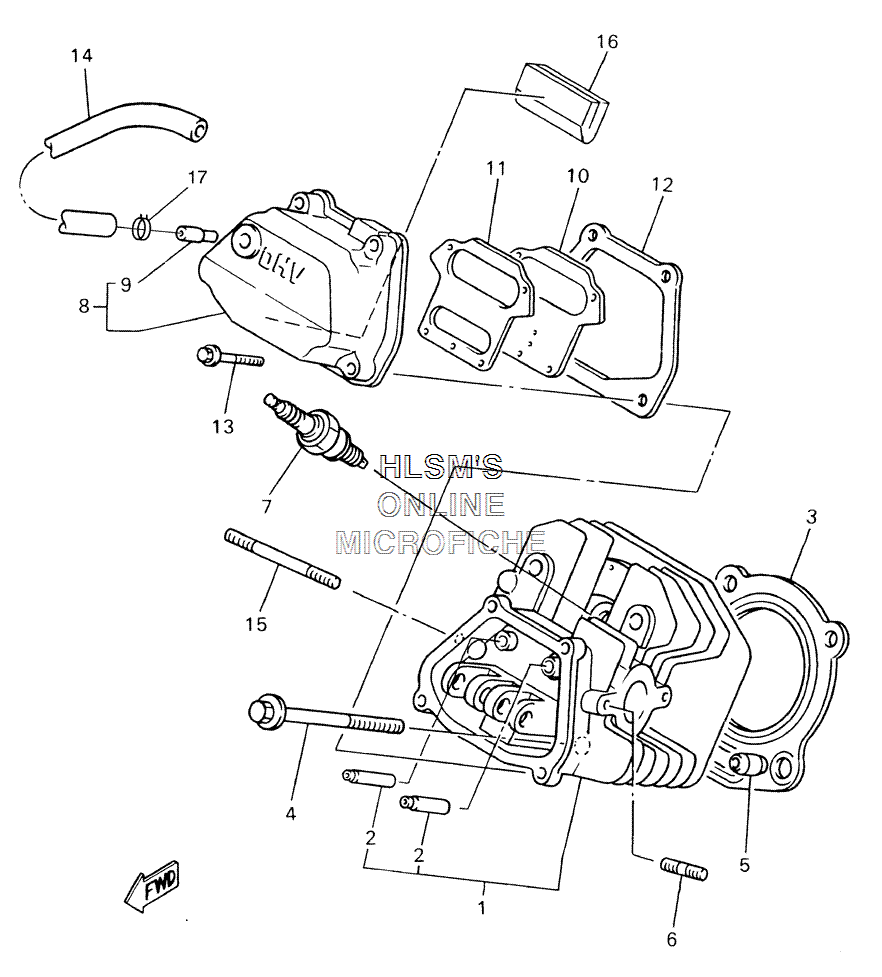

CYLINDER W/ HEAD ASSY. для Yamaha PRO HAULER 700 - 2004 года выпуска
-
№АртикулНазвание
-
1JT0-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
2JN6-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
3JT0-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
495817-10070-00 BOLT, FLANGEBOLT, FLANGE
-
599530-14016-00 PIN, DOWELPIN, DOWEL
-
695627-08618-00 BOLT, STUDBOLT, STUD
-
794702-00343-00 PLUG, SPARK (NGK BP4ES) (OPT)PLUG, SPARK (NGK BP4ES) (OPT)
-
794702-00348-00 PLUG, SPARK (NGK-BPR2ES) (STD)PLUG, SPARK (NGK-BPR2ES) (STD)
-
8JN6-11191-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
9JN6-11116-00-00 ...JOINT, BREATHER...JOINT, BREATHER
-
10JN6-11168-00-00 COVER, BREATHERCOVER, BREATHER
-
11JN6-11169-00-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
12JN6-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1395827-06030-00 BOLT, FLANGEBOLT, FLANGE
-
14JN6-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1595607-08710-00 BOLT, STUDBOLT, STUD
-
16JR7-11163-00-00 ELEMENTELEMENT
-
1790467-13847-00 CLAMPCLAMP
