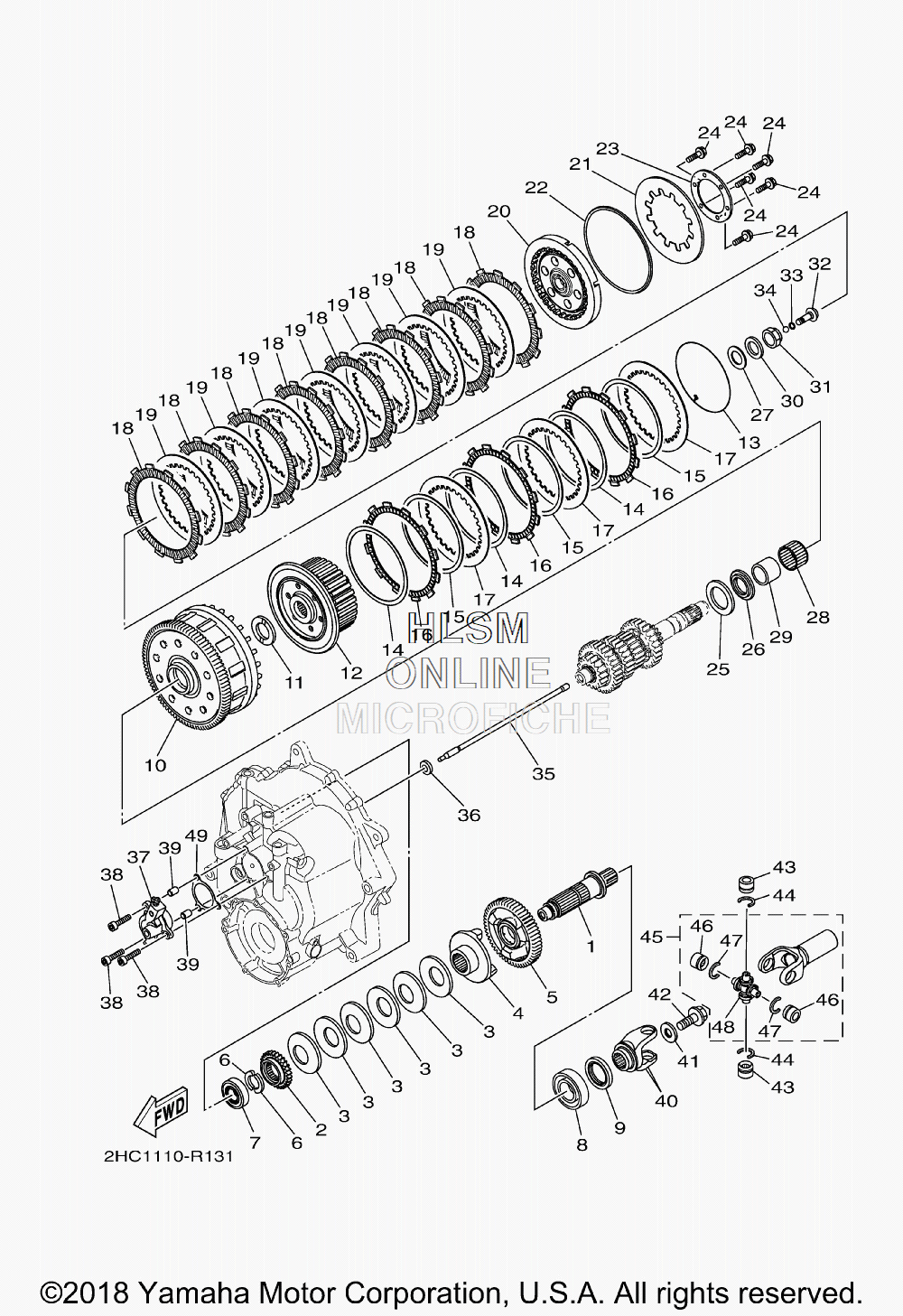

CLUTCH для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска
-
№АртикулНазвание
-
12HC-11465-00-00 SHAFT 2SHAFT 2
-
22HC-13324-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
32HC-16318-00-00 SPRING, DAMPERSPRING, DAMPER
-
42HC-16317-00-00 CAM, DAMPER 1CAM, DAMPER 1
-
52HC-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
623P-17529-00-00 WASHER, THRUSTWASHER, THRUST
-
793306-20483-00 BEARINGBEARING
-
893306-30525-00 BEARINGBEARING
-
993102-35039-00 OIL SEALOIL SEAL
-
102HC-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
111D7-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
122HC-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
132H7-16385-00-00 RING SETRING SET
-
1436Y-16384-00-00 PLATE, SEATPLATE, SEAT
-
1536Y-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
161PK-16331-00-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
172H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
185YU-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
192H7-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
202HC-16350-00-00 PRESSURE PLATE ASSYPRESSURE PLATE ASSY
-
2136Y-16334-00-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
2236Y-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
231TX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
2495812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
252HC-16587-00-00 SPRING.,ABSORBERSPRING.,ABSORBER
-
262HC-16183-00-00 SPACER 3SPACER 3
-
2790201-22013-00 WASHER, PLATEWASHER, PLATE
-
2893310-33560-00 BEARINGBEARING
-
292HC-16181-00-00 SPACER 1SPACER 1
-
3090208-22003-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3190179-22010-00 NUTNUT
-
324KG-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
3393210-06632-00 O-RINGO-RING
-
3493511-32017-00 BALLBALL
-
352HC-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
3693109-08061-00 OIL SEALOIL SEAL
-
372HC-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
3890110-06246-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3999530-08012-00 PIN, DOWELPIN, DOWEL
-
402HC-46147-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
4190201-121H0-00 WASHER, PLATEWASHER, PLATE
-
4290105-12094-00 BOLT, FLANGEBOLT, FLANGE
-
4393399-99948-00 BEARINGBEARING
-
4493440-20088-00 CIRCLIPCIRCLIP
-
452HC-46108-00-00 CROSS JOINT COMP. 3CROSS JOINT COMP. 3
-
4693399-99948-00 ...BEARING...BEARING
-
4793440-20088-00 ...CIRCLIP...CIRCLIP
-
482HC-46187-00-00 ...SPIDER...SPIDER
-
492HC-17472-00-00 GASKETGASKET
