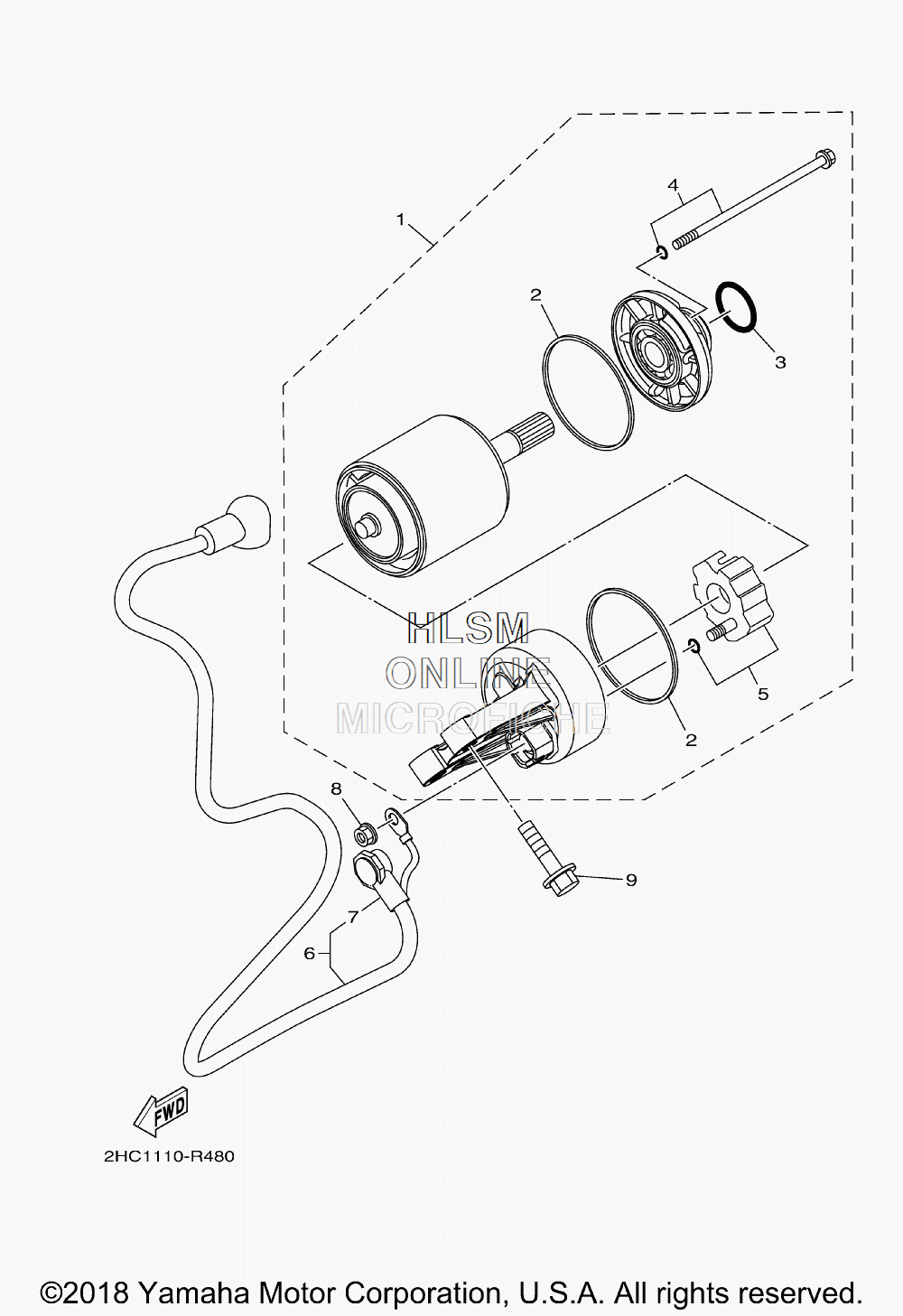

STARTING MOTOR для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска
-
№АртикулНазвание
-
12HC-81890-00-00 MOTOR ASSYMOTOR ASSY
-
211H-81844-00-00 ...GASKET...GASKET
-
31FK-81847-00-00 ...O-RING...O-RING
-
428P-81826-00-00 ...BOLT...BOLT
-
54B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
62HC-81815-01-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
74B5-81871-00-00 ...CAP...CAP
-
84XV-8182A-00-00 NUTNUT
-
995812-08030-00 BOLT, FLANGEBOLT, FLANGE
