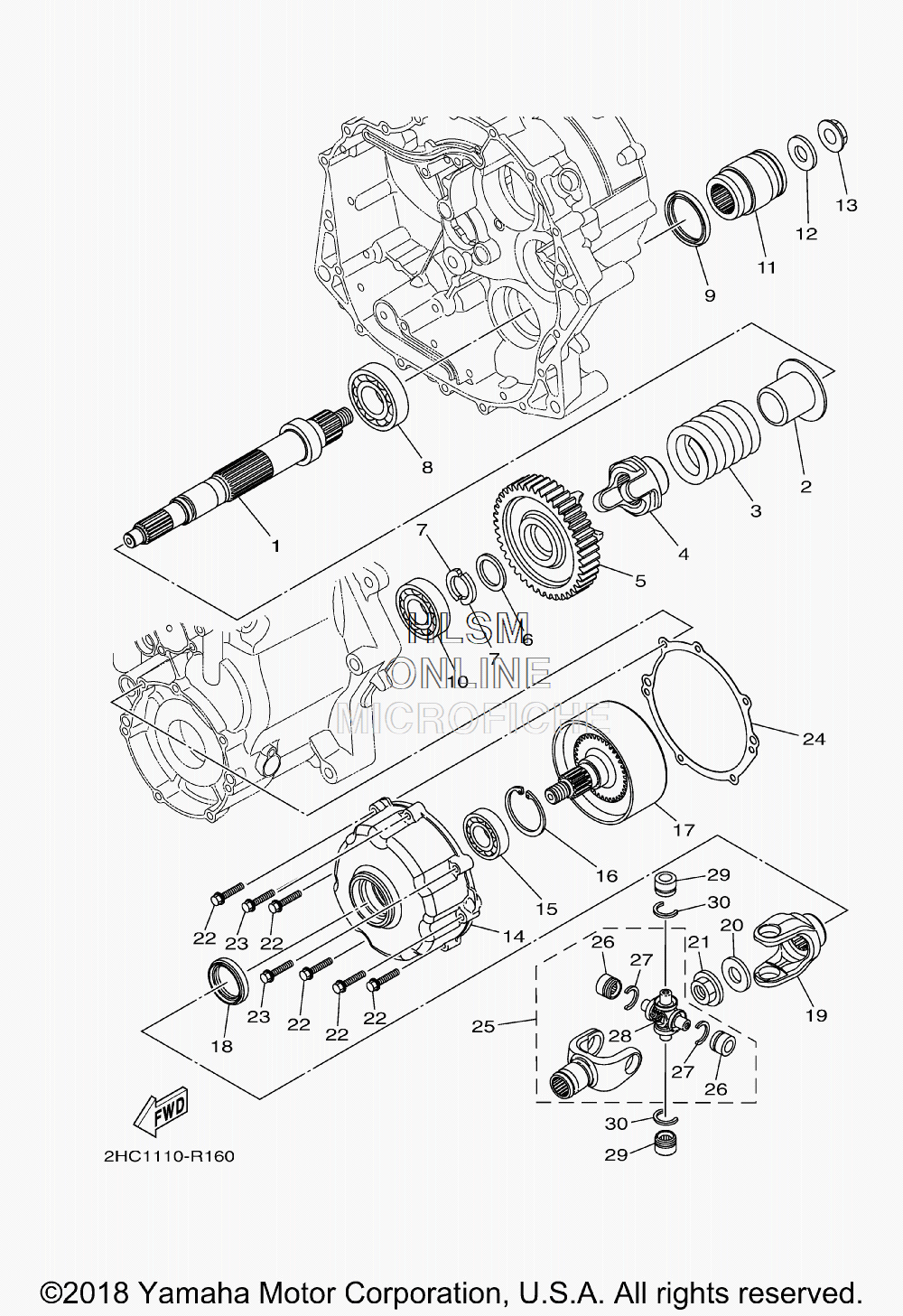

MIDDLE DRIVE GEAR для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска
-
№АртикулНазвание
-
12HC-17523-00-00 SHAFTSHAFT
-
22HC-17524-00-00 HOLDERHOLDER
-
32HC-17528-00-00 SPRING, DAMPERSPRING, DAMPER
-
42S3-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
5B5H-17583-00-00 GEAR, MIDDLE DRIVENGEAR, MIDDLE DRIVEN
-
690201-27014-00 WASHER, PLATEWASHER, PLATE
-
723P-17529-00-00 WASHER, THRUSTWASHER, THRUST
-
893306-20607-00 BEARINGBEARING
-
993105-45018-00 OIL SEALOIL SEAL
-
1093306-37218-00 BEARINGBEARING
-
112HC-17832-00-00 COUPLINGCOUPLING
-
1290201-165H4-00 WASHER, PLATEWASHER, PLATE
-
1390179-16004-00 NUTNUT
-
142HC-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1593306-00518-00 BEARINGBEARING
-
1699009-47500-00 CIRCLIPCIRCLIP
-
172HC-46380-00-00 SHAFT ASSY 1SHAFT ASSY 1
-
1893102-34095-00 OIL SEALOIL SEAL
-
192HC-17576-00-00 YOKE, JOINT 2YOKE, JOINT 2
-
2090201-165H4-00 WASHER, PLATEWASHER, PLATE
-
2190179-16004-00 NUTNUT
-
2295022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2390105-06096-00 BOLT, FLANGEBOLT, FLANGE
-
242HC-17818-00-00 GASKETGASKET
-
252HC-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
2693399-99948-00 ...BEARING...BEARING
-
2793440-20088-00 ...CIRCLIP...CIRCLIP
-
285GT-46187-00-00 ...SPIDER...SPIDER
-
2993399-99948-00 BEARINGBEARING
-
3093440-20088-00 CIRCLIPCIRCLIP
