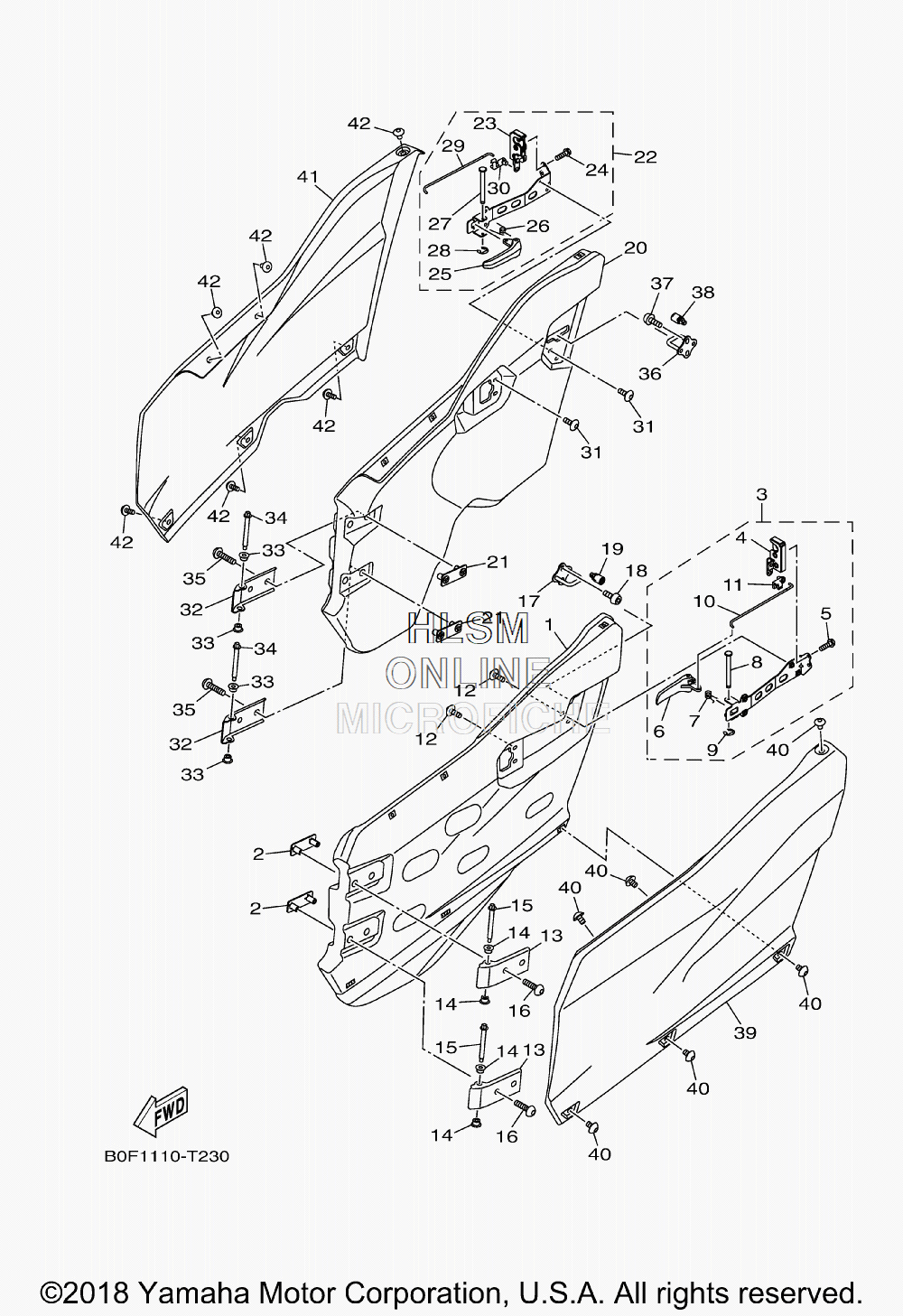

SIDE COVER 3 для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска
-
№АртикулНазвание
-
12HC-K8557-01-00 PNL., DOOR FRONT (LEFT HAND)PNL., DOOR FRONT (LEFT HAND)
-
22HC-F1736-00-00 NUT, PLATENUT, PLATE
-
32HC-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
42HC-F16A0-00-00 ...LOCK ASSY...LOCK ASSY
-
595812-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
62HC-F17N1-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
72HC-F1742-00-00 ...SPRING...SPRING
-
890249-05801-00 ...PIN...PIN
-
999002-04600-00 ...CIRCLIP...CIRCLIP
-
102HC-F7247-00-00 ...ROD 1...ROD 1
-
112HC-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
1290111-06086-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
132HC-K8554-00-00 STAY, FRONT DOOR 1STAY, FRONT DOOR 1
-
142HC-F1748-00-00 COLLARCOLLAR
-
1590109-068A8-00 BOLTBOLT
-
1690109-08856-00 BOLTBOLT
-
172HC-F178J-00-00 LOCKLOCK
-
1892012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
192MB-F8378-00-00 PADPAD
-
202HC-K8558-01-00 PNL., DOOR FRONT (RIGHT HAND)PNL., DOOR FRONT (RIGHT HAND)
-
212HC-F1736-00-00 NUT, PLATENUT, PLATE
-
222HC-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
232HC-F16B0-00-00 ...LOCK ASSY 2...LOCK ASSY 2
-
2495812-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
252HC-F17N1-00-00 ...LEVER, LATCH 1...LEVER, LATCH 1
-
262HC-F1742-00-00 ...SPRING...SPRING
-
2790249-05801-00 ...PIN...PIN
-
2899002-04600-00 ...CIRCLIP...CIRCLIP
-
292HC-F7248-00-00 ...ROD 2...ROD 2
-
302HC-F2805-00-00 ...CLIP, CABLE...CLIP, CABLE
-
3190111-06086-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
322HC-K8554-00-00 STAY, FR. DOOR 1STAY, FR. DOOR 1
-
332HC-F1748-00-00 COLLARCOLLAR
-
3490109-068A8-00 BOLTBOLT
-
3590109-08856-00 BOLTBOLT
-
362HC-F178J-00-00 LOCKLOCK
-
3792012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
382MB-F8378-00-00 PADPAD
-
392HC-F17E0-50-00 SIDE COVER COMP. 1SIDE COVER COMP. 1
-
4090110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
412HC-F17F0-50-00 SIDE COVER COMP. 2SIDE COVER COMP. 2
-
4290110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
