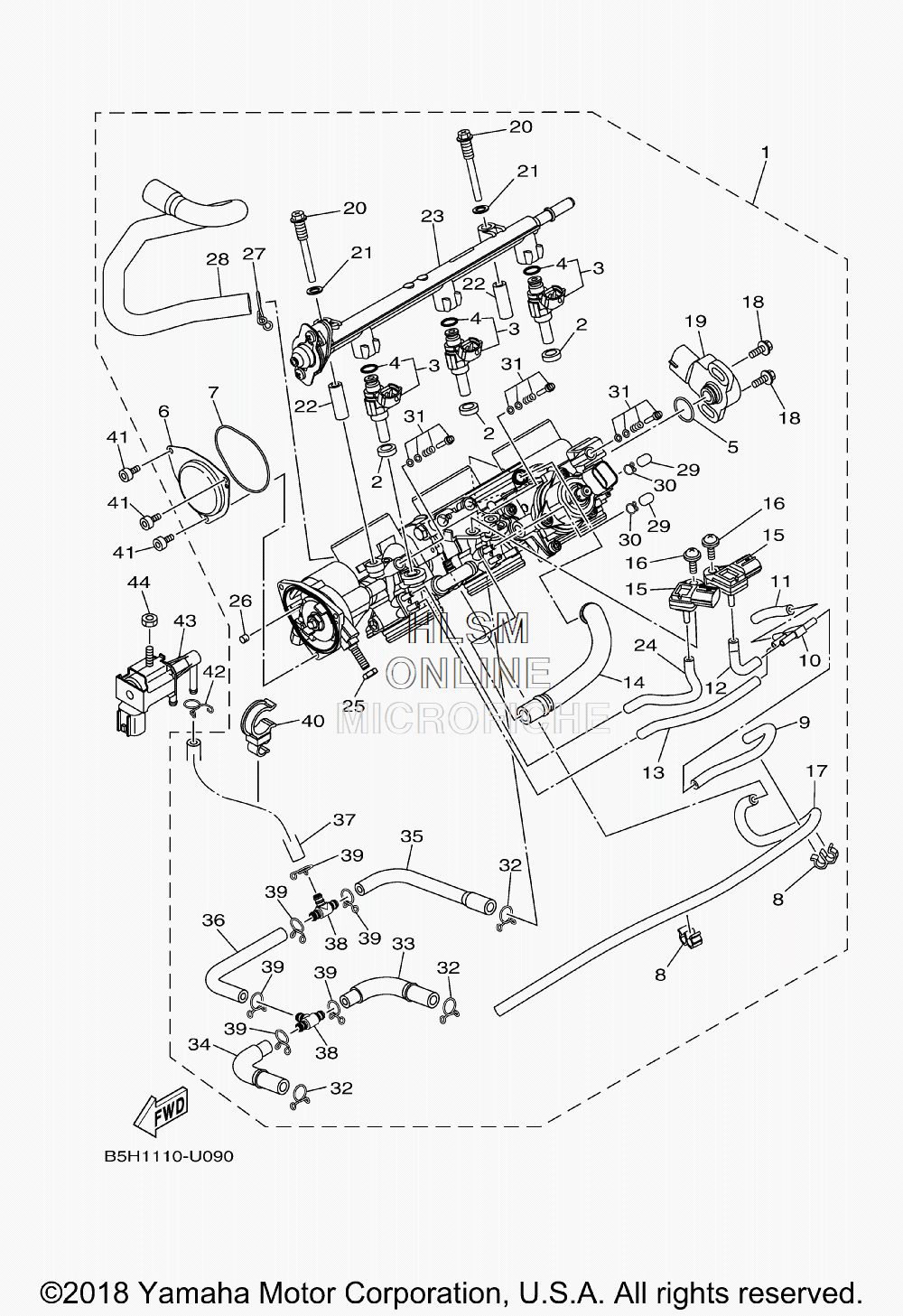

THROTTLE BODY ASSY для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска
-
№АртикулНазвание
-
1B5H-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-10-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
32HC-13761-00-00 ...INJECTOR...INJECTOR
-
468V-1416A-00-00 ......O-RING......O-RING
-
55YP-14562-00-00 ...O-RING...O-RING
-
65UG-14293-00-00 ...COVER 1...COVER 1
-
75LP-14147-00-00 ...O-RING...O-RING
-
869J-2417H-00-00 ...CLAMP 1...CLAMP 1
-
92HC-13894-00-00 ...HOSE, AIR 4...HOSE, AIR 4
-
105PW-1410F-00-00 ...NIPPLE, 1...NIPPLE, 1
-
118FP-14349-30-00 ...PIPE...PIPE
-
128HF-13892-00-00 ...HOSE, AIR 2...HOSE, AIR 2
-
138GL-13893-00-00 ...HOSE, AIR 3...HOSE, AIR 3
-
148GL-13895-00-00 ...HOSE, AIR...HOSE, AIR
-
151WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
162C0-14216-00-00 ...SCREW...SCREW
