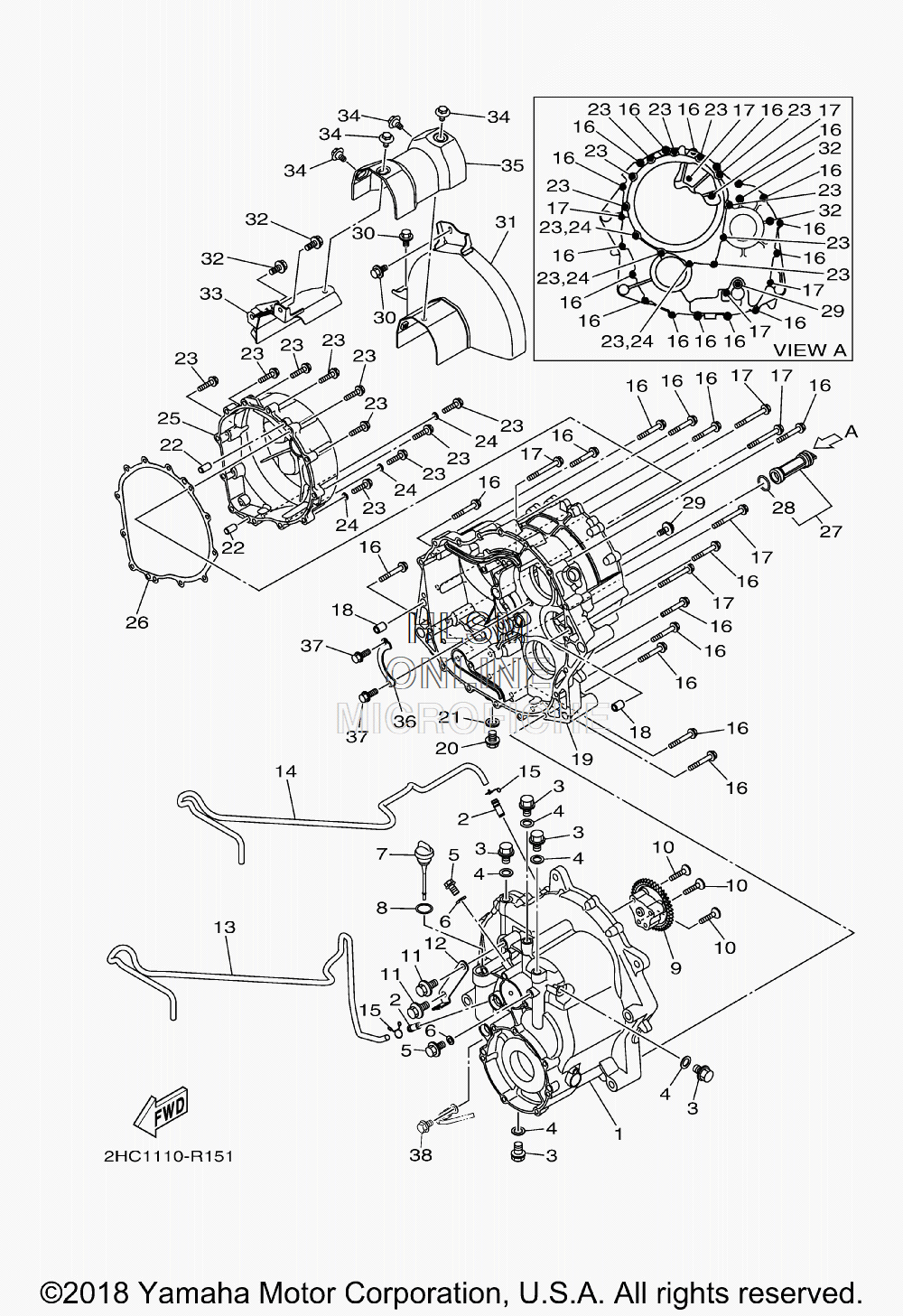

TRANSFER CASE для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска
-
№АртикулНазвание
-
1B5J-17541-00-00 CASE, TRANSFER 1CASE, TRANSFER 1
-
2137-13115-01-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
390340-10003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
490430-10148-00 GASKETGASKET
-
595022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
690430-06014-00 GASKETGASKET
-
718G-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
893210-21190-00 O-RINGO-RING
-
92HC-17880-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
1098702-06030-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1195822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
122HC-17665-00-00 PLATE 1PLATE 1
-
1390445-08040-00 HOSE (L1140)HOSE (L1140)
-
1490445-08049-00 HOSEHOSE
-
1590467-08075-00 CLIPCLIP
-
1695022-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1795022-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1899530-10114-00 PIN, DOWELPIN, DOWEL
-
192HC-17542-00-00 CASE, TRANSFER 2CASE, TRANSFER 2
-
2090340-12006-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2190430-12213-00 GASKETGASKET
-
2299530-08016-00 PIN, DOWELPIN, DOWEL
-
2395022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2490430-06014-00 GASKETGASKET
-
252HC-15415-00-00 COVER, 1COVER, 1
-
262HC-15453-00-00 GASKETGASKET
-
272HC-13411-00-00 STRAINER, OILSTRAINER, OIL
-
2893210-207A0-00 ...O-RING...O-RING
-
2990159-06021-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
3090119-06242-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
312HC-2147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
3290119-06242-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
332HC-2147K-00-00 COVER, SHAFT 2COVER, SHAFT 2
-
3490109-06202-00 BOLTBOLT
-
352HC-2131P-00-00 COVER PLATE COMP.COVER PLATE COMP.
-
362HC-17558-00-00 PLATE, BEARINGPLATE, BEARING
-
3790105-06187-00 BOLT, FLANGEBOLT, FLANGE
-
3895880-06012-00 BOLT, FLANGEBOLT, FLANGE
