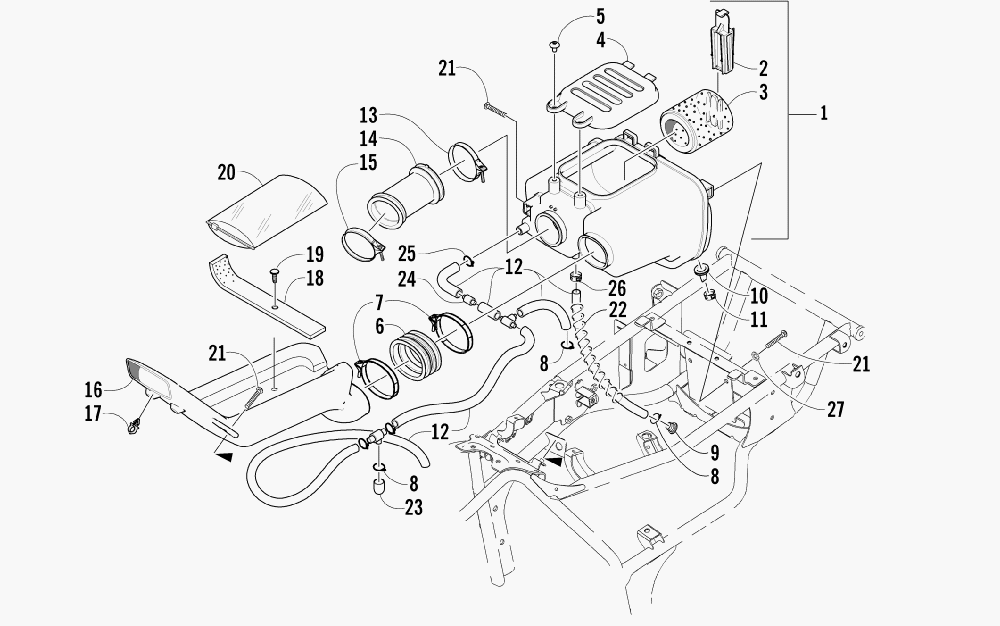

AIR INTAKE ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13570-001 INTAKE, AIR - ASSEMBLY (INC. 2-7)INTAKE, AIR - ASSEMBLY (INC. 2-7)
-
23402-330 ...SLIDER, RETAINER - FILTER...SLIDER, RETAINER - FILTER
-
30470-421 ...FILTER, AIR CLEANER...FILTER, AIR CLEANER
-
43402-331 ...CAP...CAP
-
58477-610 ...SCREW, CAP...SCREW, CAP
-
63423-329 ...JOINT...JOINT
-
73423-311 ...CLAMP...CLAMP
-
83423-313 CLIPCLIP
-
90423-127 PLUG, DRAINPLUG, DRAIN
-
100470-442 VALVE, AIR CLEANERVALVE, AIR CLEANER
-
110423-071 CLAMPCLAMP
-
123470-004 TUBE, CRANKCASE BREATHERTUBE, CRANKCASE BREATHER
-
133402-236 CLAMPCLAMP
-
140470-347 BOOT, AIR CLEANERBOOT, AIR CLEANER
-
153402-235 CLAMPCLAMP
-
160570-062 SNORKEL, AIR INTAKE - ASSEMBLY (INC. 17-19)SNORKEL, AIR INTAKE - ASSEMBLY (INC. 17-19)
-
170623-101 ...CLIP, ROUTING...CLIP, ROUTING
-
180406-379 ...STRAP, TOOL KIT...STRAP, TOOL KIT
-
190606-586 ...PLUG, HOLE - RETAINING CLIP...PLUG, HOLE - RETAINING CLIP
-
200444-122 KIT, TOOLKIT, TOOL
-
218476-616 SCREW, CAPSCREW, CAP
-
220423-128 SPRING, VENT TUBESPRING, VENT TUBE
-
233402-334 PLUG, BREATHERPLUG, BREATHER
-
243470-002 VALVE, CHECKVALVE, CHECK
-
253423-424 CLIP, AIR CLEANERCLIP, AIR CLEANER
-
260423-047 CLAMPCLAMP
-
278053-212 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
