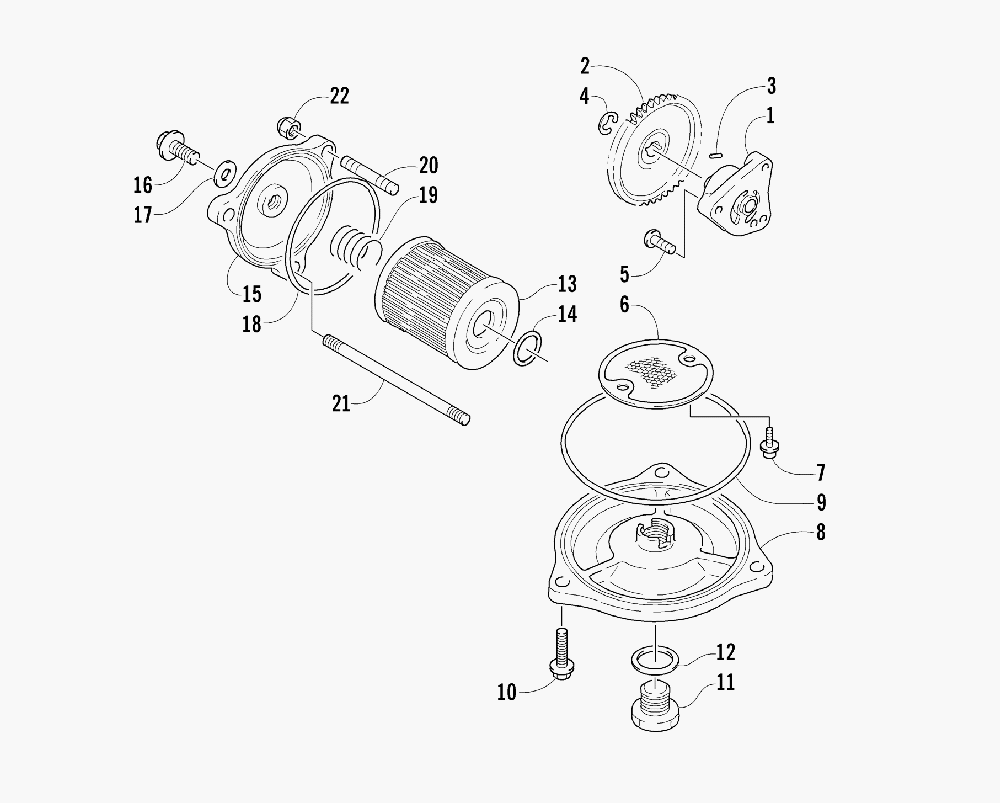

OIL PUMP ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13445-017 PUMP, OILPUMP, OIL
-
23402-302 GEAR, DRIVENGEAR, DRIVEN
-
33423-285 PINPIN
-
43423-168 CIRCLIPCIRCLIP
-
53004-402 SCREW, CAPSCREW, CAP
-
63402-304 STRAINER, OILSTRAINER, OIL
-
70693-389 SCREW, CAPSCREW, CAP
-
83402-305 CAP, OIL STRAINERCAP, OIL STRAINER
-
93423-278 O-RINGO-RING
-
103004-507 SCREW, CAPSCREW, CAP
-
113402-037 PLUG, DRAINPLUG, DRAIN
-
123402-012 GASKETGASKET
-
133436-005 FILTER, OILFILTER, OIL
-
143423-270 O-RINGO-RING
-
153402-303 CAP, OIL FILTERCAP, OIL FILTER
-
163004-705 PLUG, OIL CHECKPLUG, OIL CHECK
-
173402-444 GASKETGASKET
-
183423-277 O-RINGO-RING
-
193402-238 SPRINGSPRING
-
203423-314 BOLT, STUDBOLT, STUD
-
213004-543 BOLT, STUDBOLT, STUD
-
223423-315 NUTNUT
