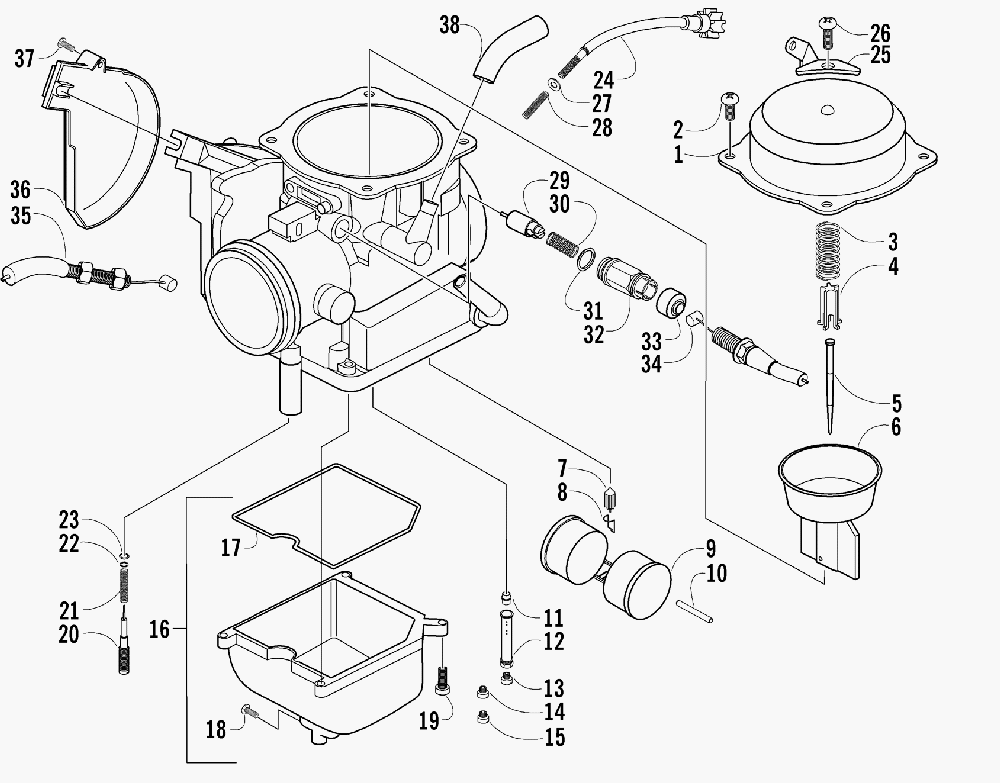

CARBURETOR для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
0470-448 CARBURETOR ASSYCARBURETOR ASSY
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, TOP COVERSCREW, TOP COVER
-
35507-052 SPRINGSPRING
-
45507-054 SEAT, SPRINGSEAT, SPRING
-
55507-055 JET NEEDLEJET NEEDLE
-
65507-053 PISTON, VACUUMPISTON, VACUUM
-
75507-038 VALVE, FLOAT - SET (INC. 8)VALVE, FLOAT - SET (INC. 8)
-
95507-039 FLOAT SET (INC. 10)FLOAT SET (INC. 10)
-
115507-056 NEEDLE JETNEEDLE JET
-
125507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
135507-057 MAIN JET - 135MAIN JET - 135
-
135507-088 MAIN JET - 138 (OPTIONAL)MAIN JET - 138 (OPTIONAL)
-
135507-041 MAIN JET - 147 (OPTIONAL)MAIN JET - 147 (OPTIONAL)
-
135507-042 MAIN JET - 145 (OPTIONAL)MAIN JET - 145 (OPTIONAL)
-
135507-043 MAIN JET - 142 (OPTIONAL)MAIN JET - 142 (OPTIONAL)
-
135507-044 MAIN JET - 140 (OPTIONAL)MAIN JET - 140 (OPTIONAL)
-
135507-009 MAIN JET - 150 (OPTIONAL)MAIN JET - 150 (OPTIONAL)
-
145507-010 SLOW JETSLOW JET
-
155507-058 STARTER JET - 65STARTER JET - 65
-
165507-064 CHAMBER, FLOAT - ASSEMBLY (INC. 17-18)CHAMBER, FLOAT - ASSEMBLY (INC. 17-18)
-
175507-068 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
-
185507-050 ...PLUG, DRAIN...PLUG, DRAIN
-
195507-017 SCREWSCREW
-
205507-040 SCREW, PILOT AIR - SET (INC. 21-23)SCREW, PILOT AIR - SET (INC. 21-23)
-
245507-059 SCREW, IDLE ADJUST (INC. 25)SCREW, IDLE ADJUST (INC. 25)
-
265507-035 SCREWSCREW
-
275507-028 WASHERWASHER
-
285507-029 SPRINGSPRING
-
295507-022 VALVE, STARTERVALVE, STARTER
-
305507-023 SPRINGSPRING
-
315507-024 O-RINGO-RING
-
325507-025 CAPCAP
-
335507-026 CAP, RUBBERCAP, RUBBER
-
340487-017 CABLE, CHOKECABLE, CHOKE
-
350487-019 CABLE, THROTTLECABLE, THROTTLE
-
365507-036 COVERCOVER
-
375507-037 SCREWSCREW
-
385507-083 TUBE, VINYLTUBE, VINYL
