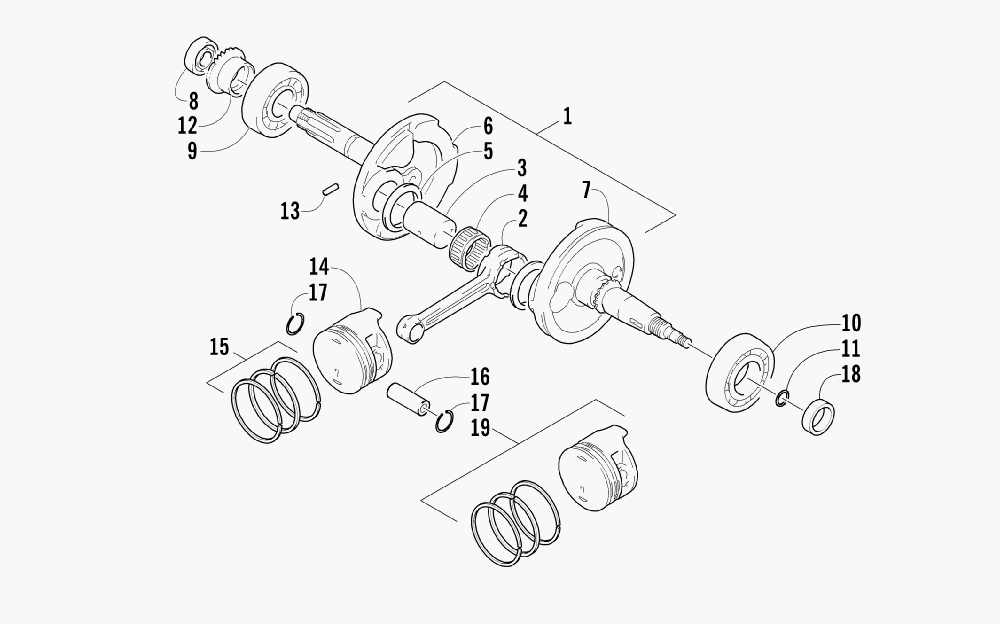

CRANKSHAFT ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска

№

Артикул

Название
1

3402-269 CRANKSHAFT ASSEMBLY (INC. 2-7)

CRANKSHAFT ASSEMBLY (INC. 2-7)

130 ₽
2

3402-268 ...ROD, CONNECTING

...ROD, CONNECTING

29 320 ₽
3

3402-270 ...PIN, CRANK

...PIN, CRANK

12 270 ₽
4

3402-223 ...BEARING

...BEARING

18 920 ₽
5

3005-241 ...WASHER

...WASHER

2 070 ₽
6

3402-792 ...CRANKSHAFT - RIGHT

...CRANKSHAFT - RIGHT

77 370 ₽
7

3402-703 ...CRANKSHAFT - LEFT

...CRANKSHAFT - LEFT

84 030 ₽
8

3402-216 BEARING - RIGHT

BEARING - RIGHT

7 480 ₽
9

3402-221 BEARING - MIDDLE

BEARING - MIDDLE

18 300 ₽
10

3402-180 BEARING - LEFT

BEARING - LEFT

16 630 ₽
11

3423-053 O-RING

O-RING

980 ₽
12

3402-301 GEAR, OIL PUMP DRIVE

GEAR, OIL PUMP DRIVE

10 190 ₽
13

3423-114 PIN

PIN

310 ₽
14

3402-265 PISTON

PISTON

25 370 ₽
15

3402-266 RING, PISTON - SET

RING, PISTON - SET

12 680 ₽
15

3436-011 RING, PISTON - SET (OVERSIZED 0.50 MM) (OPTIONAL)

RING, PISTON - SET (OVERSIZED 0.50 MM) (OPTIONAL)

13 510 ₽
15

3436-012 RING, PISTON - SET (OVERSIZED 1.00 MM) (OPTIONAL)

RING, PISTON - SET (OVERSIZED 1.00 MM) (OPTIONAL)

14 140 ₽
16

3402-267 PIN, PISTON

PIN, PISTON

4 990 ₽
17

3423-280 CIRCLIP

CIRCLIP

690 ₽
18

3402-227 SEAL, OIL

SEAL, OIL

6 030 ₽
19

3402-306 PISTON SET (OVERSIZED 0.50 MM) (OPTIONAL)

PISTON SET (OVERSIZED 0.50 MM) (OPTIONAL)

33 900 ₽
19

3402-307 PISTON SET (OVERSIZED 1.00 MM) (OPTIONAL)

PISTON SET (OVERSIZED 1.00 MM) (OPTIONAL)

35 150 ₽
