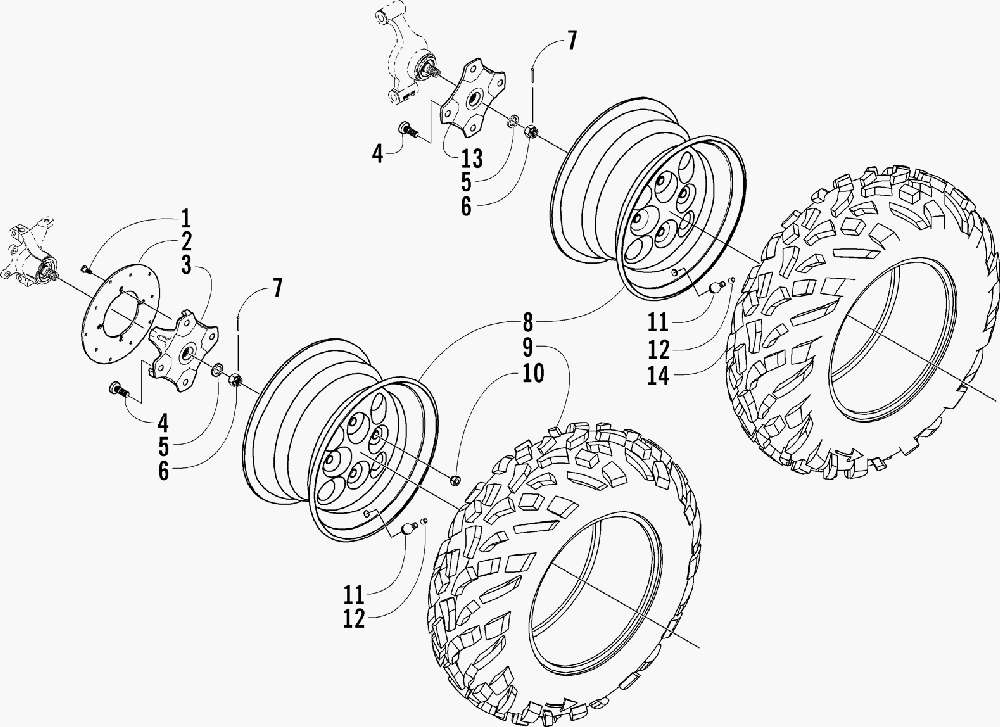

WHEEL AND TIRE ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
10423-029 SCREW, MACHINESCREW, MACHINE
-
20402-874 DISC, BRAKEDISC, BRAKE
-
30502-421 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50402-181 SEAL, HUBSEAL, HUB
-
60423-394 NUT, HEXNUT, HEX
-
70423-407 PIN, COTTERPIN, COTTER
-
81402-127 WHEEL ASSEMBLY - PLATINUM (RED)WHEEL ASSEMBLY - PLATINUM (RED)
-
80402-856 WHEEL ASSEMBLY - GRAY (GREEN)WHEEL ASSEMBLY - GRAY (GREEN)
-
90402-317 TIRE - FRONTTIRE - FRONT
-
100423-408 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
110402-064 STEM, VALVE (INC. 12)STEM, VALVE (INC. 12)
-
120402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
130502-421 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
130502-423 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
140402-319 TIRE, REARTIRE, REAR
