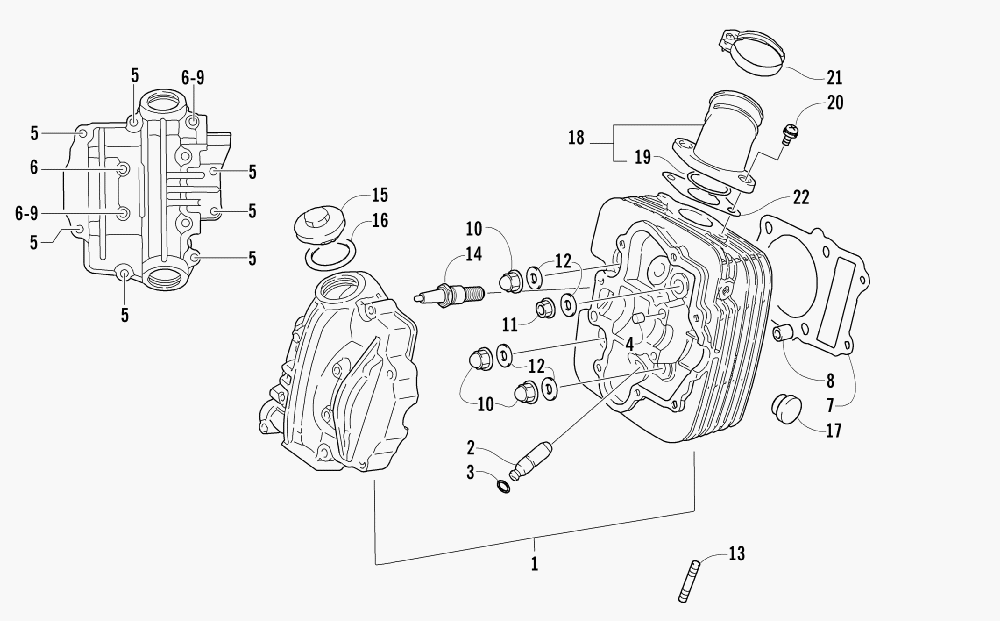

CYLINDER HEAD ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
3402-260 GASKET SETGASKET SET
-
13402-246 HEAD, CYLINDER - ASSEMBLY (INC. 2-6)HEAD, CYLINDER - ASSEMBLY (INC. 2-6)
-
23402-247 ...GUIDE, VALVE...GUIDE, VALVE
-
33423-068 ...RING, VALVE GUIDE...RING, VALVE GUIDE
-
43423-043 ...PIN, DOWEL...PIN, DOWEL
-
53004-426 ...SCREW, CAP...SCREW, CAP
-
63423-304 ...SCREW, CAP...SCREW, CAP
-
73402-248 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
83004-822 PIN, DOWELPIN, DOWEL
-
93003-290 GASKETGASKET
-
103423-257 NUTNUT
-
113004-326 NUTNUT
-
123005-243 GASKETGASKET
-
133004-279 BOLT, STUDBOLT, STUD
-
140217-713 SPARK PLUG (NGK DR7EA)SPARK PLUG (NGK DR7EA)
-
153402-249 CAP, INSPECTIONCAP, INSPECTION
-
163423-275 O-RINGO-RING
-
173402-213 PLUG, HEADPLUG, HEAD
-
183402-533 PIPE, INTAKE (INC. 19)PIPE, INTAKE (INC. 19)
-
193423-276 ...O-RING...O-RING
-
203423-305 SCREWSCREW
-
213402-086 CLAMPCLAMP
-
223402-298 GASKET, INTAKE PIPEGASKET, INTAKE PIPE
