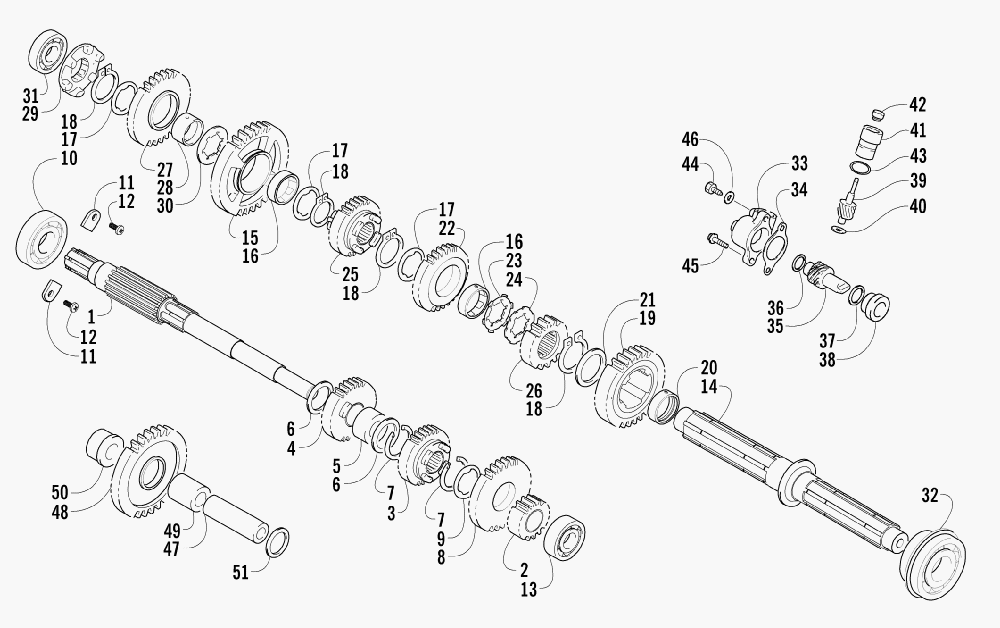

TRANSMISSION ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2004ATF4AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13446-277 COUNTERSHAFTCOUNTERSHAFT
-
23446-137 GEAR, 2ND DRIVEGEAR, 2ND DRIVE
-
33446-138 GEAR, 3RD DRIVEGEAR, 3RD DRIVE
-
43446-139 GEAR, 4TH DRIVEGEAR, 4TH DRIVE
-
53402-229 BUSHINGBUSHING
-
63402-210 WASHERWASHER
-
73423-279 CIRCLIPCIRCLIP
-
83446-140 GEAR, 5TH DRIVEGEAR, 5TH DRIVE
-
93423-261 WASHERWASHER
-
100691-374 BEARING - RIGHTBEARING - RIGHT
-
113446-031 RETAINERRETAINER
-
123423-370 SCREWSCREW
-
133402-224 BEARING - MIDDLEBEARING - MIDDLE
-
143402-797 DRIVESHAFTDRIVESHAFT
-
153446-141 GEAR, 1ST DRIVENGEAR, 1ST DRIVEN
-
163446-273 BUSHINGBUSHING
-
173423-036 WASHERWASHER
-
183423-066 CIRCLIPCIRCLIP
-
193446-142 GEAR, 2ND DRIVENGEAR, 2ND DRIVEN
-
203402-230 BUSHINGBUSHING
-
213423-317 WASHERWASHER
-
223446-143 GEAR, 3RD DRIVENGEAR, 3RD DRIVEN
-
233423-266 WASHER, LOCKWASHER, LOCK
-
243423-262 WASHER, LOCKWASHER, LOCK
-
253446-146 GEAR, 4TH DRIVENGEAR, 4TH DRIVEN
-
263446-147 GEAR, 5TH DRIVENGEAR, 5TH DRIVEN
-
273446-151 GEAR, REVERSE DRIVENGEAR, REVERSE DRIVEN
-
283446-145 BUSHINGBUSHING
-
293446-152 DOG, REVERSEDOG, REVERSE
-
303423-263 WASHERWASHER
-
313402-218 BEARING - RIGHTBEARING - RIGHT
-
323402-220 BEARING - MIDDLEBEARING - MIDDLE
-
333446-057 HOUSING, SPEEDOMETER GEARHOUSING, SPEEDOMETER GEAR
-
343446-244 GASKETGASKET
-
353446-228 GEAR, SPEEDOMETER DRIVEGEAR, SPEEDOMETER DRIVE
-
363423-336 WASHER - RIGHTWASHER - RIGHT
-
373423-337 WASHER - LEFTWASHER - LEFT
-
383446-114 SPACERSPACER
-
393446-229 GEAR, SPEEDOMETER DRIVENGEAR, SPEEDOMETER DRIVEN
-
403423-144 WASHERWASHER
-
413446-058 SLEEVESLEEVE
-
423402-077 SEAL, OILSEAL, OIL
-
433423-056 O-RINGO-RING
-
443423-123 SCREW, CAPSCREW, CAP
-
453423-346 SCREW, CAPSCREW, CAP
-
463402-009 WASHERWASHER
-
473446-148 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
483446-149 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
493402-228 BUSHINGBUSHING
-
503446-150 SPACERSPACER
-
513402-209 WASHERWASHER
