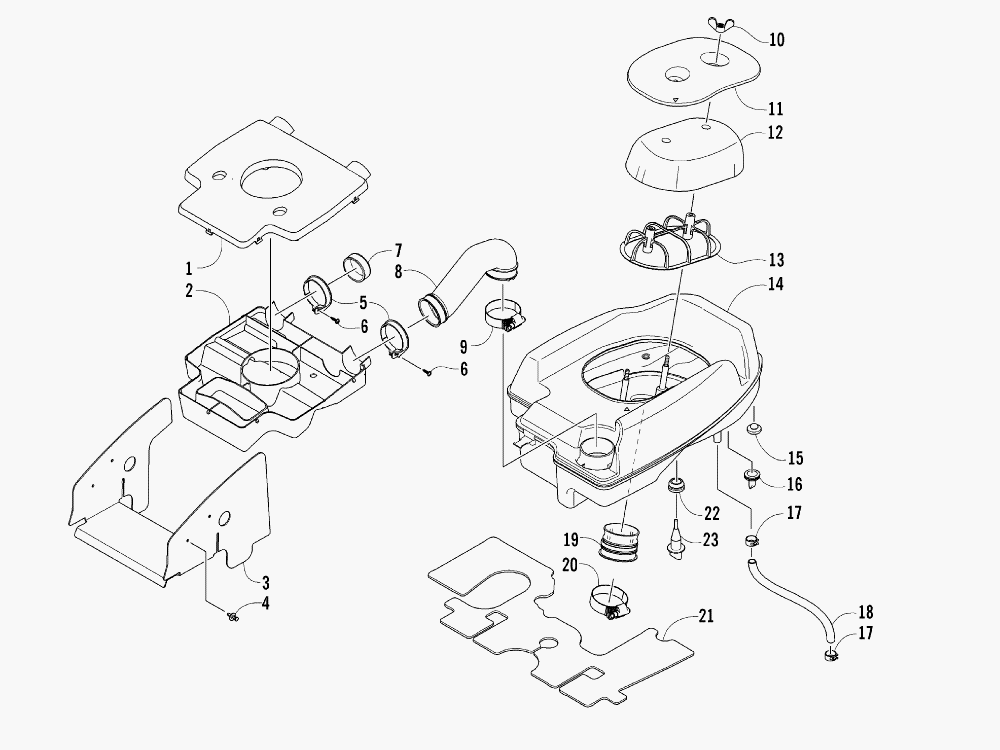

AIR INTAKE ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
10413-091 DIVERTER, AIR - TOPDIVERTER, AIR - TOP
-
20413-093 DIVERTER, AIR - BOTTOMDIVERTER, AIR - BOTTOM
-
31406-785 SHROUD, SPLASHSHROUD, SPLASH
-
40623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
50423-551 CLAMPCLAMP
-
60423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70413-096 CAP, AIR INTAKE - DIVERTERCAP, AIR INTAKE - DIVERTER
-
80470-583 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
90423-380 CLAMPCLAMP
-
100423-716 WING NUTWING NUT
-
110470-616 COVER, AIR INTAKECOVER, AIR INTAKE
-
120470-580 FILTER, AIRFILTER, AIR
-
130470-581 CAGE, AIR FILTERCAGE, AIR FILTER
-
140570-129 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
150406-877 BUMPERBUMPER
-
160470-442 VALVE, DRAINVALVE, DRAIN
-
170423-045 CLAMPCLAMP
-
180410-103 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
190470-582 BOOT, THROTTLE BODYBOOT, THROTTLE BODY
-
200423-066 CLAMP, BOOTCLAMP, BOOT
-
212406-149 PANEL, SHIELDPANEL, SHIELD
-
223006-657 GROMMET, AIR TEMPERATURE SENSORGROMMET, AIR TEMPERATURE SENSOR
-
233006-656 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
