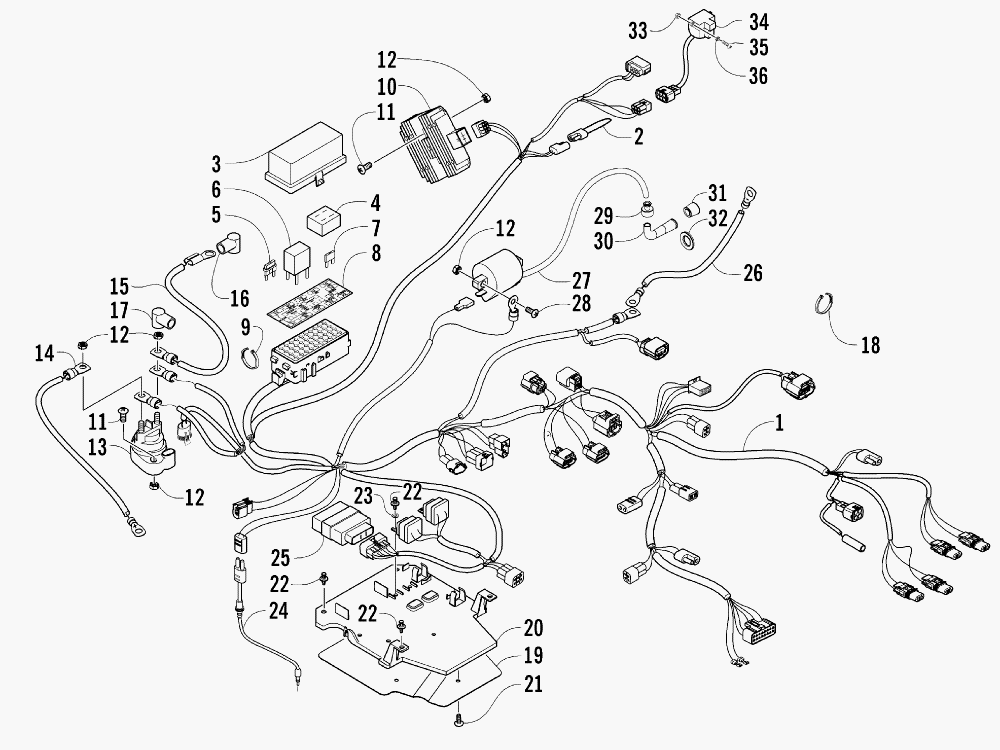

WIRING HARNESS ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
10486-189 HARNESS, MAIN (INC. 2-8 AND TWO NO. 9)HARNESS, MAIN (INC. 2-8 AND TWO NO. 9)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-034 ...DIODE...DIODE
-
60430-045 ...RELAY - 20 AMP...RELAY - 20 AMP
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
81411-311 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90123-788 ...CABLE TIE - 7.5 IN....CABLE TIE - 7.5 IN.
-
100824-037 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
118476-625 SCREW, MACHINESCREW, MACHINE
-
120623-038 NUT W/WASHERNUT W/WASHER
-
130445-036 SOLENOIDSOLENOID
-
140445-055 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
150445-053 CABLE, SOLENOID/STARTER (INC. 16)CABLE, SOLENOID/STARTER (INC. 16)
-
160645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
170645-327 BOOT, TERMINALBOOT, TERMINAL
-
180123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
192406-406 PLATE, SHIELDPLATE, SHIELD
-
202406-105 TRAY, ELECTRICALTRAY, ELECTRICAL
-
210623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
238050-217 WASHERWASHER
-
240409-072 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
253430-063 ELECTRONIC CONTROL MODULEELECTRONIC CONTROL MODULE
-
260445-037 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
273430-064 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
288476-620 SCREW, MACHINESCREW, MACHINE
-
293430-009 SEAL, HIGH TENSION WIRESEAL, HIGH TENSION WIRE
-
303409-044 CAP, SPARK PLUGCAP, SPARK PLUG
-
313409-031 COVER, SPARK PLUG CAPCOVER, SPARK PLUG CAP
-
323409-030 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
330423-493 NUT, HEXNUT, HEX
-
340409-064 SWITCH, INVERT SENSORSWITCH, INVERT SENSOR
-
358468-425 SCREW, MACHINESCREW, MACHINE
-
360123-802 WASHERWASHER
-
*0644-347 WRENCH, SPARK PLUG (NOT ILLUSTRATED)WRENCH, SPARK PLUG (NOT ILLUSTRATED)
