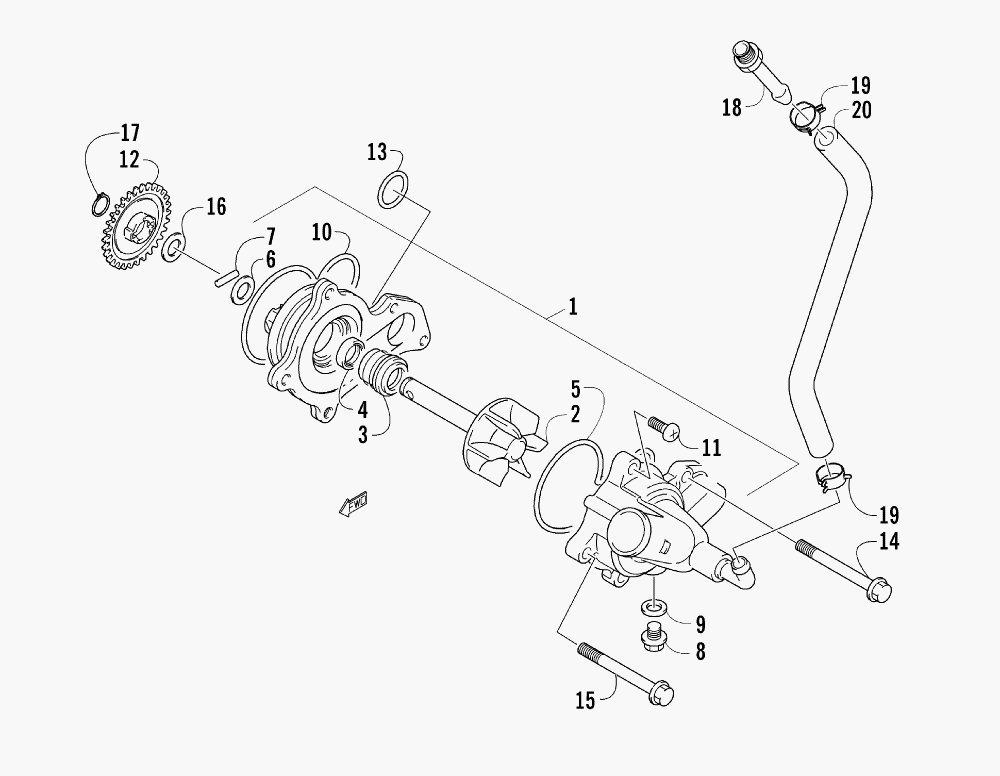

WATER PUMP ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
13403-128 PUMP, WATER - ASSEMBLY (INC. 2-11)PUMP, WATER - ASSEMBLY (INC. 2-11)
-
23413-041 ...IMPELLER...IMPELLER
-
33005-909 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
43406-143 ...SEAL, OIL...SEAL, OIL
-
53423-816 ...O-RING...O-RING
-
63423-772 ...WASHER...WASHER
-
73423-817 ...PIN...PIN
-
83423-185 ...BOLT...BOLT
-
93402-436 ...WASHER...WASHER
-
103423-818 ...O-RING...O-RING
-
113003-484 ...SCREW...SCREW
-
123403-129 GEAR, DRIVEN - WATER PUMPGEAR, DRIVEN - WATER PUMP
-
133004-521 O-RINGO-RING
-
143423-091 BOLTBOLT
-
153423-119 BOLTBOLT
-
163423-443 WASHERWASHER
-
173423-184 CIRCLIPCIRCLIP
-
183007-075 FITTING, COOLANT BYPASSFITTING, COOLANT BYPASS
-
193423-855 CLAMPCLAMP
-
203410-022 HOSE, COOLANT BYPASSHOSE, COOLANT BYPASS
