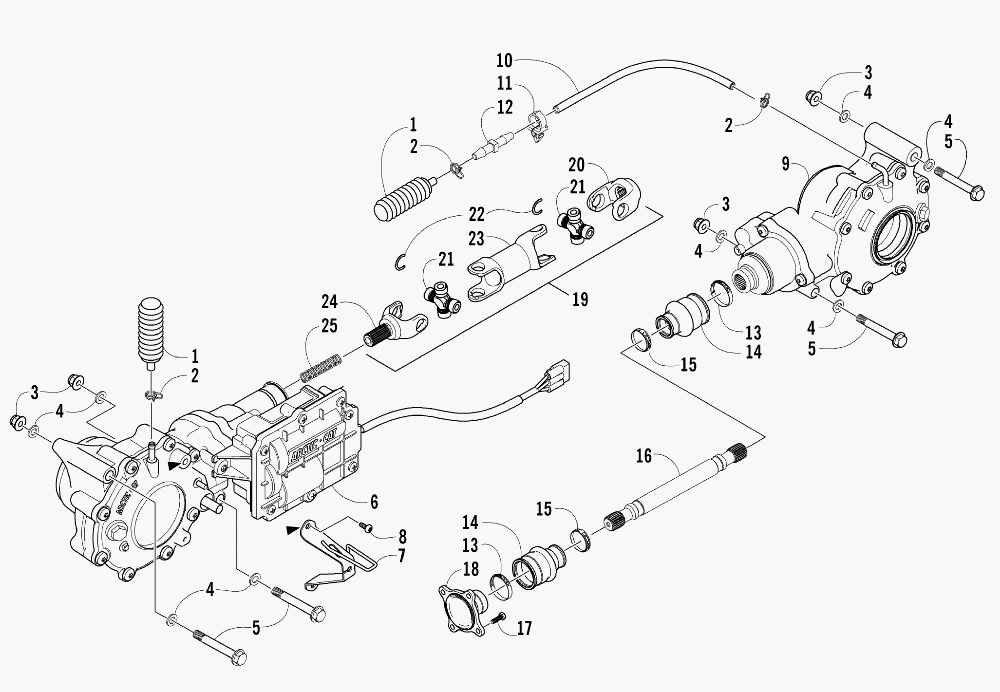

DRIVE TRAIN ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
10402-147 BLADDER, GEARCASEBLADDER, GEARCASE
-
20423-315 CLAMP, FITTINGCLAMP, FITTING
-
38428-002 NUT, LOCKNUT, LOCK
-
40423-426 WASHERWASHER
-
50423-404 SCREW, CAPSCREW, CAP
-
60502-916 GEARCASE, FRONTGEARCASE, FRONT
-
70502-500 PLATE, CABLEPLATE, CABLE
-
80423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
90502-909 GEARCASE, REARGEARCASE, REAR
-
100410-048 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
110623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
120470-462 FITTING, VENTFITTING, VENT
-
130423-393 CLAMP, BOOTCLAMP, BOOT
-
140402-985 BOOTBOOT
-
150423-411 CLAMP, BOOTCLAMP, BOOT
-
161402-234 SHAFT, PROPELLERSHAFT, PROPELLER
-
178408-820 SCREW, CAPSCREW, CAP
-
180402-950 FLANGE, OUTPUTFLANGE, OUTPUT
-
190502-918 DIVESHAFT, FRONT - ASSEMBLY (INC. 20-24)DIVESHAFT, FRONT - ASSEMBLY (INC. 20-24)
-
200502-915 ...YOKE, FRONT SLIP...YOKE, FRONT SLIP
-
211402-164 ...JOINT, UNIVERSAL (INC. 22)...JOINT, UNIVERSAL (INC. 22)
-
220423-450 ......RING, RETAINING......RING, RETAINING
-
230502-917 ...DRIVESHAFT, FRONT...DRIVESHAFT, FRONT
-
241402-439 ...YOKE, SLIP...YOKE, SLIP
-
251402-521 SPRINGSPRING
