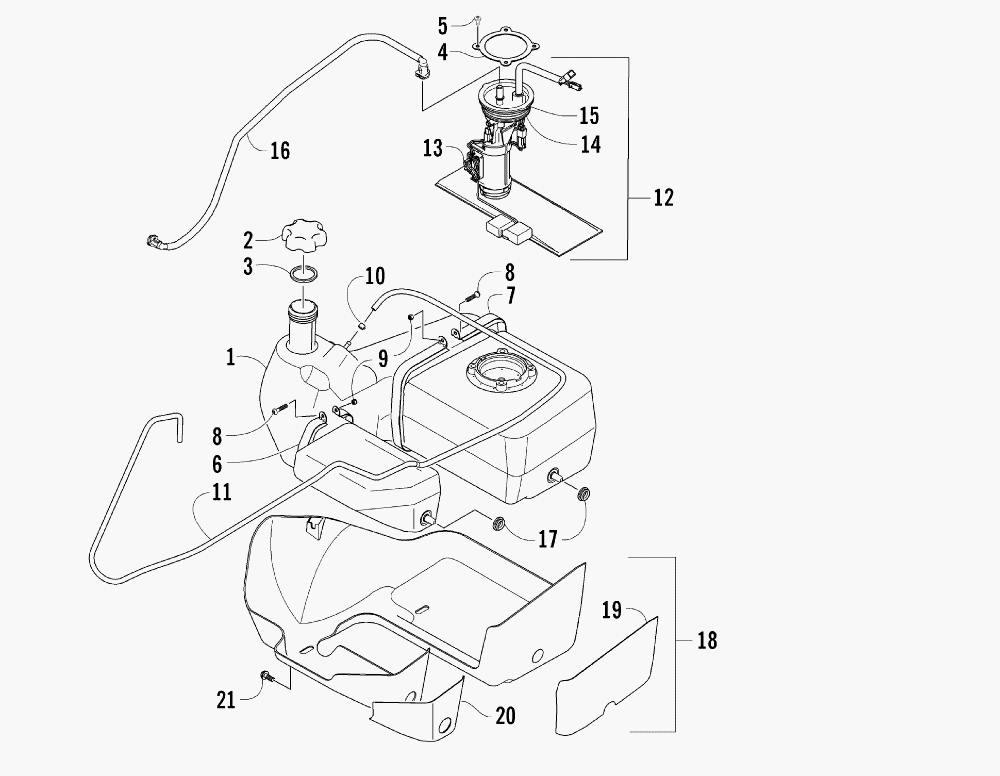

GAS TANK ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
10570-180 TANK, GAS - ASSEMBLY (INC. 2-9 AND ONE NO. 15)TANK, GAS - ASSEMBLY (INC. 2-9 AND ONE NO. 15)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
40470-606 ...PLATE, MOUNTING - FUEL PUMP...PLATE, MOUNTING - FUEL PUMP
-
58476-612 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
60570-167 ...STRAP, GAS TANK - REAR...STRAP, GAS TANK - REAR
-
70570-166 ...STRAP, GAS TANK - FRONT...STRAP, GAS TANK - FRONT
-
88476-650 ...SCREW, MACHINE...SCREW, MACHINE
-
98427-602 ...NUT, LOCK...NUT, LOCK
-
100423-670 CLAMP, HOSECLAMP, HOSE
-
110410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
120570-139 PUMP, FUEL - ASSEMBLY (INC. 13-15)PUMP, FUEL - ASSEMBLY (INC. 13-15)
-
130570-137 ...SENDER, FUEL LEVEL - KIT (INC. ONE NO. 14-15)...SENDER, FUEL LEVEL - KIT (INC. ONE NO. 14-15)
-
140470-614 ......SEAL, FUEL PUMP......SEAL, FUEL PUMP
-
150470-613 ......SEAL, FUEL PUMP......SEAL, FUEL PUMP
-
160470-611 HOSE, GASLINE - ASSEMBLYHOSE, GASLINE - ASSEMBLY
-
170423-460 GROMMETGROMMET
-
180570-081 SHIELD, GAS TANK - ASSEMBLY (INC. 19-20)SHIELD, GAS TANK - ASSEMBLY (INC. 19-20)
-
190470-499 ...SHIELD, HEAT...SHIELD, HEAT
-
200470-498 ...SHIELD, HEAT...SHIELD, HEAT
-
218408-816 SCREW, CAPSCREW, CAP
