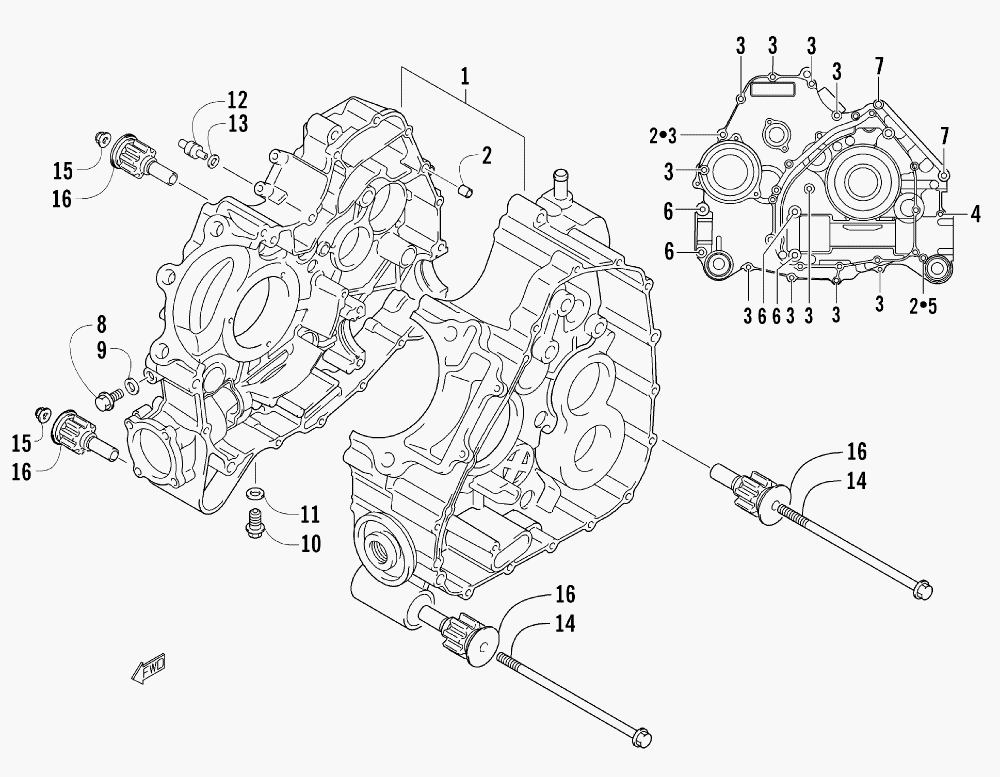

CRANKCASE ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
13403-063 CRANKCASE ASSEMBLY (INC. 2-7)CRANKCASE ASSEMBLY (INC. 2-7)
-
23004-822 ...PIN...PIN
-
33423-307 ...BOLT...BOLT
-
43423-392 ...BOLT...BOLT
-
53423-094 ...BOLT...BOLT
-
60693-303 ...BOLT...BOLT
-
73423-602 ...BOLT...BOLT
-
83004-705 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
93402-436 GASKET, OIL GALLERY PLUGGASKET, OIL GALLERY PLUG
-
103403-064 PLUG, DRAINPLUG, DRAIN
-
113402-011 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
123403-065 JET, OIL GALLERYJET, OIL GALLERY
-
133423-051 O-RINGO-RING
-
143423-456 BOLT, ENGINE MOUNTINGBOLT, ENGINE MOUNTING
-
153423-457 NUT, ENGINE MOUNTINGNUT, ENGINE MOUNTING
-
163423-799 BUSHING, ENGINE MOUNTINGBUSHING, ENGINE MOUNTING
