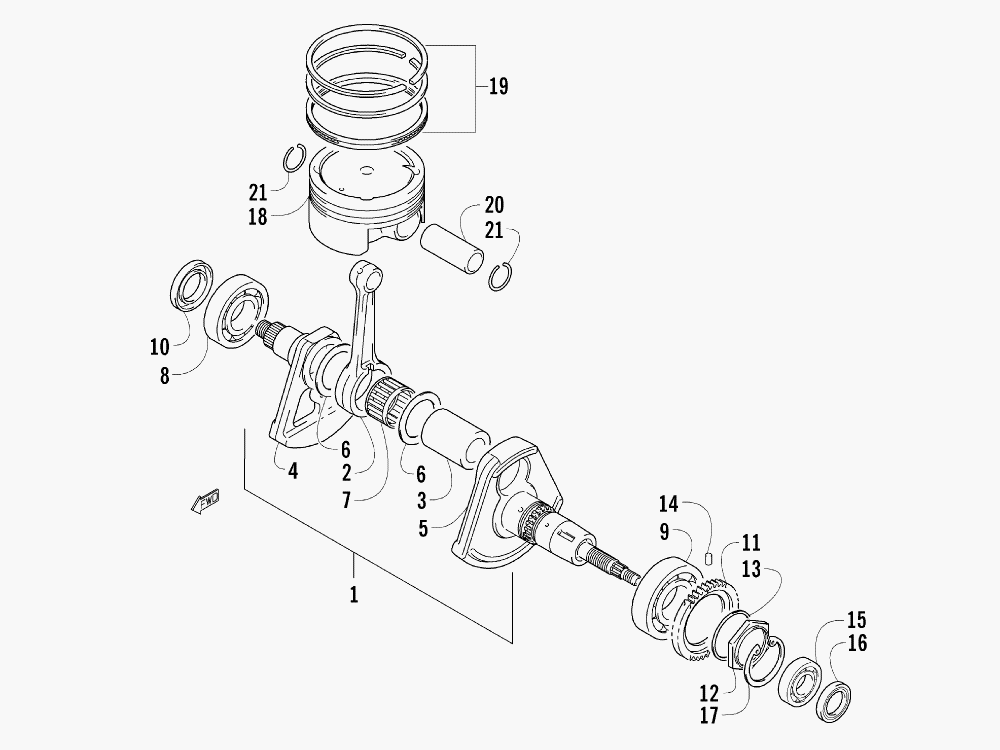

CRANKSHAFT ASSEMBLY для Arctic Cat 700 EFI SE [A2006IBT4CUSK] - 2006 года выпуска
-
№АртикулНазвание
-
13403-076 CRANKSHAFT ASSEMBLY (INC. 2-7)CRANKSHAFT ASSEMBLY (INC. 2-7)
-
23403-077 ...ROD, CONNECTING...ROD, CONNECTING
-
33403-078 ...PIN, CRANK...PIN, CRANK
-
43403-079 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
53423-080 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
63423-801 ...WASHER...WASHER
-
73403-081 ...BEARING...BEARING
-
83403-202 BEARING - RIGHTBEARING - RIGHT
-
93403-083 BEARING - LEFTBEARING - LEFT
-
103402-573 SEAL, OILSEAL, OIL
-
113403-084 GEAR, DRIVE - CRANK BALANCERGEAR, DRIVE - CRANK BALANCER
-
123423-802 NUT, CRANK BALANCER DRIVE GEARNUT, CRANK BALANCER DRIVE GEAR
-
133423-803 WASHERWASHER
-
143423-047 PINPIN
-
153402-051 BEARINGBEARING
-
163403-085 SEAL, OILSEAL, OIL
-
173423-804 CIRCLIPCIRCLIP
-
183403-086 PISTONPISTON
-
193403-087 RING, PISTON - SETRING, PISTON - SET
-
203403-088 PIN, PISTONPIN, PISTON
-
213423-344 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
