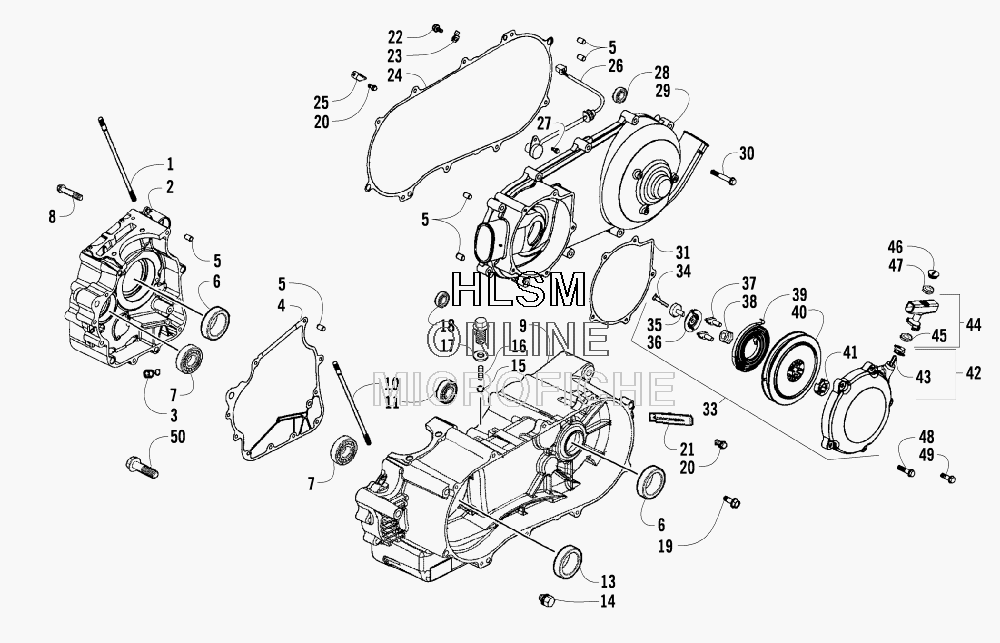

CRANKCASE ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13304-008 BOLT, STUDBOLT, STUD
-
23303-626 CRANKCASE - RIGHT (INC. 3)CRANKCASE - RIGHT (INC. 3)
-
33304-065 ...PLUG, CONE-TYPE...PLUG, CONE-TYPE
-
43303-628 GASKET, CRANKCASEGASKET, CRANKCASE
-
53303-342 PIN, DOWELPIN, DOWEL
-
63304-091 SEAL, OILSEAL, OIL
-
73304-198 BEARINGBEARING
-
83304-191 SCREW, CAPSCREW, CAP
-
93303-629 CRANKCASE - LEFTCRANKCASE - LEFT
-
103304-009 BOLT, STUDBOLT, STUD
-
113304-195 BRG RADIAL BALL 6205BRG RADIAL BALL 6205
-
123304-074 BEARING NEEDLE 20*26*16BEARING NEEDLE 20*26*16
-
133304-079 SEAL, OILSEAL, OIL
-
143304-052 PLUG, DRAINPLUG, DRAIN
-
153304-205 BALL, STEELBALL, STEEL
-
163304-063 SPRING, BOLT SEAT INNERSPRING, BOLT SEAT INNER
-
173304-021 WASHER, BOLT SEATWASHER, BOLT SEAT
-
183304-109 BOLT, SEAT BALL STOPPERBOLT, SEAT BALL STOPPER
-
193303-365 BOLT FLANGE 8*12BOLT FLANGE 8*12
-
203303-381 BOLT FLANGE SH 6*12BOLT FLANGE SH 6*12
-
213304-158 CLAMP, WIRECLAMP, WIRE
-
223304-005 SCREW, CAPSCREW, CAP
-
233304-039 PLATE, BEARING HOLDERPLATE, BEARING HOLDER
-
243303-642 GASKET, CRANKCASE COVER - LEFTGASKET, CRANKCASE COVER - LEFT
-
253303-843 CLAMP, WIRECLAMP, WIRE
-
263303-856 CABLE, GEAR CHANGECABLE, GEAR CHANGE
-
273304-187 SCREW, CAPSCREW, CAP
-
283304-073 BEARINGBEARING
-
293303-632 COVER, CRANKCASE - LEFTCOVER, CRANKCASE - LEFT
-
303304-003 SCREW, CAPSCREW, CAP
-
313304-101 GASKET, STARTER COVERGASKET, STARTER COVER
-
323304-004 SCREW, CAPSCREW, CAP
-
333305-459 RECOIL STARTER - ASSEMBLY (INC. 34-47)RECOIL STARTER - ASSEMBLY (INC. 34-47)
-
343304-113 ...SCREW, CAP...SCREW, CAP
-
353303-651 ...INSERT, COLLAR...INSERT, COLLAR
-
363303-649 ...GUIDE, RATCHET...GUIDE, RATCHET
-
373303-646 ...RATCHET...RATCHET
-
383303-647 ...SPRING, RATCHET GUIDE...SPRING, RATCHET GUIDE
-
393303-645 ...SPIRAL, STARTER...SPIRAL, STARTER
-
403305-346 ...REEL, STARTER SPIRAL...REEL, STARTER SPIRAL
-
413303-648 ...SPACER, STARTER - REEL/COVER...SPACER, STARTER - REEL/COVER
-
423303-639 ...COVER, STARTER (INC. 43)...COVER, STARTER (INC. 43)
-
433303-650 ......ROPE, STARTER......ROPE, STARTER
-
443303-652 ...HANDLE, STARTER ROPE (INC. 45)...HANDLE, STARTER ROPE (INC. 45)
-
453304-103 ......O-RING......O-RING
-
463305-269 ...CAP, STARTER ROPE HANDLE...CAP, STARTER ROPE HANDLE
-
473304-137 ...WASHER...WASHER
-
483304-190 SCREW, CAPSCREW, CAP
-
493303-384 SCREW, CAPSCREW, CAP
