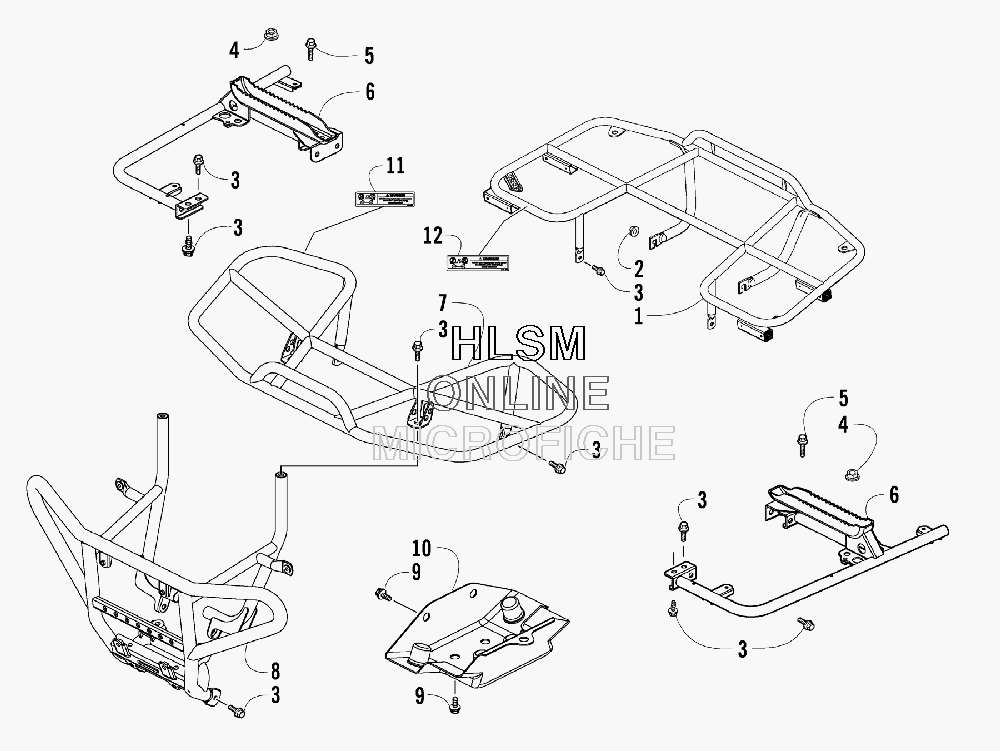

RACKS AND BUMPER ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13305-464 RACK, REARRACK, REAR
-
23304-668 NUT, LOCKNUT, LOCK
-
33304-543 SCREW, CAPSCREW, CAP
-
43303-332 NUTNUT
-
53303-616 SCREW, CAPSCREW, CAP
-
63303-939 BRACKET, FLOOR PANEL - RIGHTBRACKET, FLOOR PANEL - RIGHT
-
63303-940 BRACKET, FLOOR PANEL - LEFTBRACKET, FLOOR PANEL - LEFT
-
73303-988 RACK, FRONTRACK, FRONT
-
83304-001 BUMPER, FRONT - ASSEMBLYBUMPER, FRONT - ASSEMBLY
-
93304-544 SCREW, CAPSCREW, CAP
-
103303-871 PLATE, SKID - ASSEMBLYPLATE, SKID - ASSEMBLY
-
110411-576 DECAL, WARNING - FRONT RACK (100 LB.)DECAL, WARNING - FRONT RACK (100 LB.)
-
120411-201 DECAL, WARNING - REAR RACK (RED)DECAL, WARNING - REAR RACK (RED)
