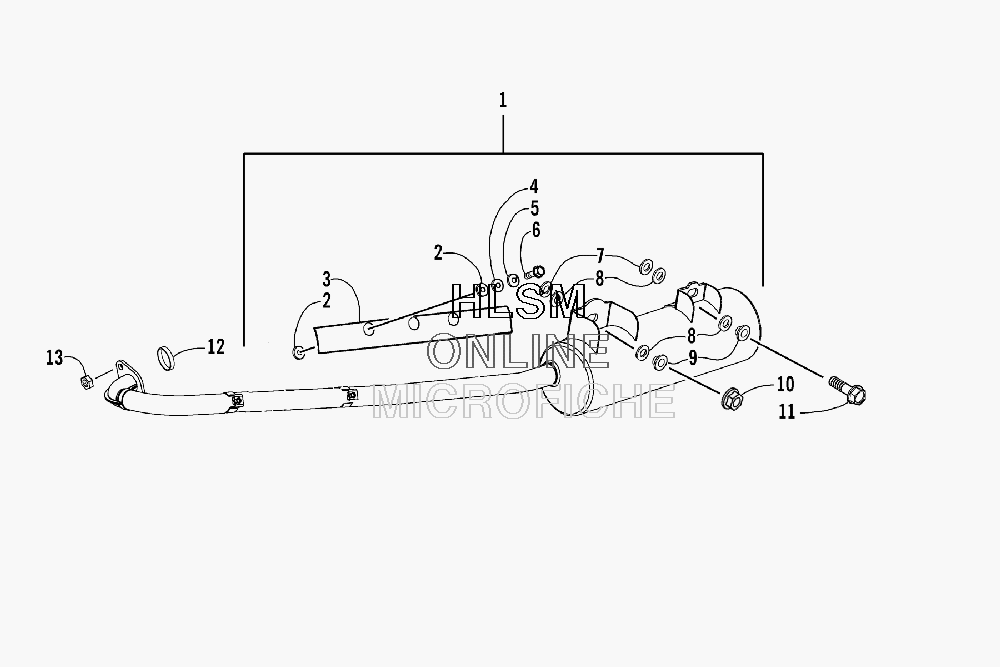

EXHAUST ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13303-729 MUFFLER - ASSEMBLY (INC. 2-9)MUFFLER - ASSEMBLY (INC. 2-9)
-
23303-727 ...PACKING, EXHAUST SHIELD...PACKING, EXHAUST SHIELD
-
33303-730 ...SHIELD, EXHAUST...SHIELD, EXHAUST
-
43304-134 ...WASHER...WASHER
-
53304-140 ...WASHER, LOCK...WASHER, LOCK
-
63303-381 ...SCREW, CAP...SCREW, CAP
-
73303-726 ...BUSHING...BUSHING
-
83303-728 ...PACKING...PACKING
-
93303-731 ...COLLAR...COLLAR
-
103303-332 NUTNUT
-
113304-175 SCREW, CAPSCREW, CAP
-
123303-725 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
133304-125 NUTNUT
